Internet programming Applets as front ends for Servlets

1

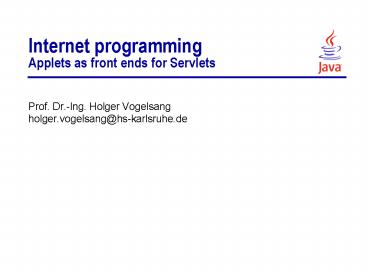

Internet programmingApplets as front ends for
Servlets

• Prof. Dr.-Ing. Holger Vogelsang
  holger.vogelsang_at_hs-karlsruhe.de

2
Applets as front ends for Servlets Contents

• Architecture and Protocols
• Dynamic HTML pages
• Servlets
• JavaServer Pages
• Combination of Servlets and JavaServer Pages
• Expression language
• Taglibs
• Applets as front ends for Servlets
• An applet imitates an HTML page
• Send data with GET and process the result
• Send data with POST and process the result
• Communication with another server

3
Applets as front ends for Servlets Idea

• Usage
• Applets are much more flexible than simple HTML
  pages.
• Communication scenarios
• An Applet imitates an HTML page It sends the GET
  request to a Servlet. The resulting page is
  displayed as a normal HTML page in the browser.

Browser
request
Servlet oder JSP
Applet
response
Servlet engine
4
Applets as front ends for Servlets Idea

• Applets send GET data and perform result
  processing (HTTP tunneling).

Browser
request
Servlet oder JSP
Applet
response
Servlet engine
5
Applets as front ends for Servlets Idea

• Applets send POST data and perform result
  processing. E.g. Exchanging objects by
  serialization between Servlets and Applets.

Browser
request
Servlet oder JSP
Applet
response
Servlet engine
6
Applets as front ends for Servlets Idea

• An Applet by-passes the Servlet engine and
  communicates with another server on the Servlet
  engines or the clients machine.

Browser
request
Server Object
Applet
Object
response
Server
Servlet
Servlet engine
7
Applets as front ends for Servlets Contents

• Architecture and Protocols
• Dynamic HTML pages
• Servlets
• JavaServer Pages
• Combination of Servlets and JavaServer Pages
• Expression language
• Taglibs
• Applets as front ends for Servlets
• An applet imitates an HTML page
• Send data with GET and process the result
• Send data with POST and process the result
• Communication with another server

8
Applets as front ends for Servlets Approach 1
An applet imitates an HTML page

• Basic ideas
• The Applet context has a method showDocument
• getAppletContext().showDocument(url)
• The GET data is appended to the URL
• http//host/ServletPath?param1value1param2valu
  e2
• Example
• try
• URL programURL new URL(baseURL "?"
  someData)
• getAppletContext().showDocument(programURL,
  targetFrame)
• catch (MalformedURLException ex)
• // ...

9
Applets as front ends for Servlets Approach 1
An applet imitates an HTML page

• The Browsers encodes sent data
• ASCII characters 'a' through 'z', 'A' through
  'Z', '0' through '9', and '.', '-', '', '_'
  remain the same.
• Character ' ' is converted into a plus sign ''.
• All other characters are converted into the
  3-character string "xy", where xy is the
  two-digit hexadecimal representation of the lower
  8-bits of the character.
• Applets have to encode their data too.
• Only parameter names and values have to be
  encoded, not the separators ? It's not possible
  to encode the whole data string in a single step.
• The class URLEncoder (package java.net) has a
  static method encode which does all required
  work
• String encString URLEncoder.encode(value)

10
Applets as front ends for Servlets Approach 1
An applet imitates an HTML page

• Example
• String someData
• name1 "" URLEncoder.encode(value1)
  ""
• name2 "" URLEncoder.encode(value2)
  ""
• // ...
• nameN "" URLEncoder.encode(valueN)
• try
• URL programURL new URL(baseURL "?"
  someData)
• getAppletContext().showDocument(programURL)
• catch (MalformedURLException ex)
• // ...

11
Applets as front ends for Servlets Approach 1
An applet imitates an HTML page survey version 5

• Example An Applet as a frontend for the survey
  servlet (ugly user interface!).

12
Applets as front ends for Servlets Approach 1
An applet imitates an HTML page survey version 5

• Resulting page after calling the already existing
  servlet Survey4Collect.jsp

13
Applets as front ends for Servlets Approach 1
An applet imitates an HTML page survey version 5

• Main HTML page (SurveyAppletFrame.jsp)
• lt!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.0
  Transitional//EN"gt
• lthtmlgt
• ltheadgt
• lttitlegtSearch Applet Framelt/titlegt
• lt/headgt
• ltbody bgcolor"white"gt
• ltcentergt
• ltjspplugin type"applet" code"hska.faki.SurveyA
  pplet.class"
• codebase"../IP/WEB-INF/classes/"
• jreversion"1.5"
• width"600" height"100"gt
• lt/jspplugingt
• lt/centergt
• lt/bodygt
• lt/htmlgt

14
Applets as front ends for Servlets Approach 1
An applet imitates an HTML page survey version 5

• Applet code (Survey5Applet.java), incomplete
  (qualityPerfect and difficultyOk are check
  boxes)
• try
• String quality qualityPerfect.getState()
  ? "Perfect"
•
  "Poor"
• String difficulty difficultyOk.getState()
  ? "Ok"
•
  "TooEasy"
• // Not necessary...
• String queryQuality URLEncoder.encode(quality
  , "UTF-8")
• String queryDifficulty URLEncoder.encode(diff
  iculty, "UTF-8")
• try
• URL newURL new URL("http//localhost8080/I
  P/JSP/"
• "Survey4Collect.jsp?qu
  ality"
• queryQuality
• "difficulty"
• queryDifficulty)
• getAppletContext().showDocument(newURL)

15
Applets as front ends for Servlets Contents

• Architecture and Protocols
• Dynamic HTML pages
• Servlets
• JavaServer Pages
• Combination of Servlets and JavaServer Pages
• Expression language
• Taglibs
• Applets as front ends for Servlets
• An applet imitates an HTML page
• Send data with GET and process the result
• Send data with POST and process the result
• Communication with another server

16
Applets as front ends for Servlets Approach 2
Send data with GET and process the result

• An Applet communicates with a servlet by sending
  GET requests and receiving responses.
• No new HTML pages are transferred.
• The Applet keeps the complete control over the
  communication.
• This approach only works with a server-side Java
  program (e.g. a servlet).
• An Applet can read raw binary data or serialized
  objects from a stream
• A URLConnection is created and opened.
• Depending on the data type, one of the following
  streams is opened
• Raw data A BufferedInputStream is used to read
  data from the server.
• Serialized objects An ObjectInputStream is used.
• To send data to the servlet, name/value-pairs are
  appended to the request string.

17
Applets as front ends for Servlets Approach 2
Send data with GET and process the result

• Reading binary or ASCII data
• Create a URL object referring to the Applets home
  host.
• URL currentPage getCodeBase()
• URL dataURL new URL(currentPage.getProtocol(),
• currentPage.getHost(),
• currentPage.getPort(),
• "/IP/servlet/ServerServlet"
  )
• Open the connection.
• URLConnection connection dataURL.openConnection
  ()
• Prevent the browser from data caching.
• connection.setUseCaches(false)
• Optional Setting HTTP headers.
• connection.setRequestProperty("header-name",
  "header-value")
• Open an input stream to read the servlets
  response.
• BufferedReader in new BufferedReader(
• new InputStreamReader(connection.getInp
  utStream()))

18
Applets as front ends for Servlets Approach 2
Send data with GET and process the result

• Read the input data line by line (ASCII data) or
  byte by byte (raw data). The server closes the
  connection ? readLine returns null.
• String line
• while ((line in.readLine()) ! null)
• doSomethingWith(line)
• Close the stream.
• in.close()
• Note All steps above must be encapsulated in the
  following try-catch-block
• try
• // Steps 1 - 7
• catch (IOException ex)

19
Applets as front ends for Servlets Approach 2
Send data with GET and process the result

• Reading serialized objects
• Only steps 5 and 6 differ.
• Open an ObjectInputStream to read the servlets
  response.
• ObjectInputStream in
• new ObjectInputStream(connection.getInputS
  tream())
• Read the object(s).
• SomeClass value (SomeClass)in.readObject()
• doSomethingWith(value)

Browser
request (GET)
Servlet oder JSP
Applet
response (object)
Servlet engine
20
Applets as front ends for Servlets Approach 2
Send data with GET and process the result

• Server-side requirements
• The servlet has to perform the following four
  steps to send objects
• Specify a binary response (MIME-type
  application/x-java-serialized-object) ? not
  important, since the Applet ignores this.
• response.setContentType("application/x-java-seria
  lized-object")
• Create an ObjectOutputStream.
• ObjectOutputStream out
• new ObjectOutputStream(response.getO
  utputStream())
• Write the object(s).
• SomeClass value new SomeClass( ... )
• out.writeObject(value)
• Empty the stream to ensure, that all data is
  written.
• out.flush()
• The stream is automatically closed by the servlet.

21
Applets as front ends for Servlets Approach 2
Send data with GET and process the result
example

• Example application For every request, the
  servlet returns a Vector of random numbers. The
  Applet specifies the amount of numbers as a
  request parameter (HTML page RandomNumberAppletFr
  ame.html).

22
Applets as front ends for Servlets Approach 2
Send data with GET and process the result
example

• Applet (RandomNumberGetApplet.java)
• // An applet that reads a value from a
  TextField,
• // then uses it to request random numbers.
• public class RandomNumberGetApplet extends
  Applet
• implements
  ActionListener
• private TextField countField
• private TextArea numberArea
• private Button submitButton
• public void init()
• // Build user interface

23
Applets as front ends for Servlets Approach 2
Send data with GET and process the result
example

• /
• Submit data when button is pressed
  ltBgtorlt/Bgt
• user presses Return in the TextField.
• /
• public void actionPerformed(ActionEvent
  event)
• try
• String value URLEncoder.encode(countField
  .getText(),
• "UTF-8")
• URL currentURL getCodeBase()
• URL requestURL new URL(currentURL.getProt
  ocol(),
•
  currentURL.getHost(),
•
  currentURL.getPort(),
•
  "/IP/servlet/hska.faki."
•
  "RandomNumberObjectGetServlet"
• "?count"
• value)
• URLConnection connection
  requestURL.openConnection()
• connection.setUseCaches(false)

24
Applets as front ends for Servlets Approach 2
Send data with GET and process the result
example

• Vector values (Vector) in.readObject()
• in.close()
• // Dump random numbers
• StringBuffer text new StringBuffer()
• for (Enumeration enum values.elements()
•
  enum.hasMoreElements())
• text.append(enum.nextElement())
• text.append("\n")
• numberArea.setText(text.toString())
• catch (IOException ex1)
• catch (ClassNotFoundException ex2)

25
Applets as front ends for Servlets Approach 2
Send data with GET and process the result
example

• Servlet (RandomNumberObjectGetServlet.java)
• public class RandomNumberObjectGetServlet
  extends HttpServlet
• public void doGet(HttpServletRequest request,
• HttpServletResponse
  response)
• throws
  ServletException, IOException
• response.setContentType("text/x-java-serializ
  ed-object")
• int count 5
• try
• count Integer.parseInt(request.getParamet
  er("count"))
• catch (Exception ex)
• if (count lt 0)
• count 5

26
Applets as front ends for Servlets Approach 2
Send data with GET and process the result
example

• // Generate random numbers
• Vector values new Vector(count)
• for (int i 0 i lt count i)
• values.addElement(new Integer((int)
  (Math.random()100)))
• ObjectOutputStream out
• new ObjectOutputStream(response.getO
  utputStream())
• out.writeObject(values)
• out.flush()
• Notes
• The HTML page (RandomNumberAppletFrame.html) must
  be accessed by the server.
• If the page is loaded from the local file system,
  the Applet is not allowed to access the Servlet!
• Also, the HTML page must be somewhere in the path
  to the Servlet on the server-side.

27
Applets as front ends for Servlets Contents

• Architecture and Protocols
• Dynamic HTML pages
• Servlets
• JavaServer Pages
• Combination of Servlets and JavaServer Pages
• Expression language
• Taglibs
• Applets as front ends for Servlets
• An applet imitates an HTML page
• Send data with GET and process the result
• Send data with POST and process the result
• Communication with another server

28
Applets as front ends for Servlets Approach 3
Send data with POST and process the result

• Advantages over approach 2
• The Applet can also send Java objects to the
  servlet. This is not possible using the GET
  method.
• Real HTTP tunneling through a firewall is
  possible.
• Disadvantage
• 13 Steps are required to communicate with the
  Servlet.

29
Applets as front ends for Servlets Approach 3
Send data with POST and process the result

• Reading and sending binary or ASCII data
• Create a URL object referring to the Applets home
  host.
• URL currentPage getCodeBase()
• URL dataURL new URL(currentPage.getProtocol(),
• currentPage.getHost(),
• currentPage.getPort(),
• "/IP/servlet/ServerServlet"
  )
• Open the connection.
• URLConnection connection dataURL.openConnection
  ()
• Prevent the browser from data caching.
• connection.setUseCaches(false)
• Instruct the connection, that data will sent.
• connection.setDoOutput(true)

30
Applets as front ends for Servlets Approach 3
Send data with POST and process the result

• Create a ByteArrayOutputStream, which buffers the
  data before sending. This is necessary to
  calculate the size of the data. The initial size
  is not important.
• ByteArrayOutputStream byteOut new
  ByteArrayOutputStream(512)
• Create a PrintWriter for easier output
  generation.
• PrintWriter out new PrintWriter(byteOut)
• Write the data to the output stream.
• String data "param1" URLEncoder.encode(so
  meValue1)
• "param2" URLEncoder.encode(so
  meValue2)
• out.print(data) // Not println!
• out.flush()
• Set the Content-Length-header.
• connection.setRequestProperty("Content-Length",
• String.valueOf(byte
  Out.size())
• Set the Content-Type-header.
• connection.setRequestProperty("Content-Type",
• "application/x-www-fo
  rm-urlencoded")

31
Applets as front ends for Servlets Approach 3
Send data with POST and process the result

• Send the data.
• byteOut.writeTo(connection.getOutputStream())
• Open an input stream to read the Servlets
  response.
• BufferedReader in new BufferedReader(
• new InputStreamReader(connection.getInp
  utStream()))
• Read the input data line by line (ASCII data) or
  byte by byte (raw data). The server closes the
  connection ? readLine returns null.
• String line
• while ((line in.readLine()) ! null)
• doSomethingWith(line)
• Close the stream.
• in.close()
• Note All steps above must be encapsulated in a
  try-catch-block.
• The Servlet code is the same as in approach 2.

32
Applets as front ends for Servlets Approach 3
Send data with POST and process the result

• Reading and writing serialized objects
• Only steps 6, 7 and 11, 12 differ.
• Open an ObjectOutputStream to write the
  serialized objects.
• ObjectOutputStream in new ObjectOutputStream(by
  teOut)
• Write the object(s) to the buffer.
• SomeClass value new SomeClass(...)
• out.writeObject(value)
• Open an ObjectInputStream to read the Servlets
  response.
• ObjectInputStream in
• new ObjectInputStream(connection.getInputS
  tream())
• Read the object(s).
• SomeClass value (SomeClass)in.readObject()
• doSomethingWith(value)
• Steps 11 and 12 are the same as in approach 2.
• On the Servlet side, the serialized objects can
  be accessed using getInputStream() method of the
  request object.

33
Applets as front ends for Servlets Approach 3
Send data with POST and process the result
example

• Example of approach 3, modified to send the
  amount of random numbers as an object to the
  server. Only the differences are shown
  (RandomNumberPostApplet.java)
• // ...
• public class RandomNumberPostApplet extends
  Applet
• implements
  ActionListener
• // ...
• public void actionPerformed(ActionEvent event)

• String value URLEncoder.encode(countField.g
  etText())
• try
• URL currentURL getCodeBase()
• URL requestURL new URL(currentURL.getPr
  otocol(),
•
  currentURL.getHost(),
•
  currentURL.getPort(),
•
  "/IP/servlet/hska.faki."
•
  "RandomNumberObjectPostServlet")
• URLConnection connection
  requestURL.openConnection()
• connection.setUseCaches(false)
• connection.setDoOutput(true)

34
Applets as front ends for Servlets Approach 3
Send data with POST and process the result
example

• ByteArrayOutputStream byteOut
• new
  ByteArrayOutputStream(10)
• ObjectOutputStream out
• new
  ObjectOutputStream(byteOut)
• // Read count
• Integer count new Integer(5)
• try
• count Integer.valueOf(countField.getT
  ext())
• catch (NumberFormatException ex)
• count 5
• out.writeObject(count)
• out.flush()
• connection.setRequestProperty("Content-Le
  ngth",
•
  String.valueOf(byteOut.size()))

35
Applets as front ends for Servlets Approach 3
Send data with POST and process the result
example

• The Servlet is modified to read the request from
  an input stream and not as a request parameter.
  Only the modified parts are shown
  (RandomNumberObjectPostServlet.java)
• // ...
• public class RandomNumberObjectPostServlet
  extends HttpServlet
• public void doPost(HttpServletRequest request,
• HttpServletResponse
  response)
• throws
  ServletException, IOException
• // Try to read the count object
• ObjectInputStream in
• new ObjectInputStream(request.get
  InputStream())
• int count 5
• try
• count ((Integer) in.readObject()).intValu
  e()
• catch(ClassNotFoundException ex)
• // Rest of the file is not modified
  (generating the response).

36
Applets as front ends for Servlets Contents

• Architecture and Protocols
• Dynamic HTML pages
• Servlets
• JavaServer Pages
• Combination of Servlets and JavaServer Pages
• Expression language
• Taglibs
• Applets as front ends for Servlets
• An applet imitates an HTML page
• Send data with GET and process the result
• Send data with POST and process the result
• Communication with another server

37
Applets as front ends for Servlets Approach 4
Communication with another server

• Access is only allowed to the Applets source
  server.
• Very flexible RMI, sockets, CORBA, SOAP, ...
• Not discussed here...
