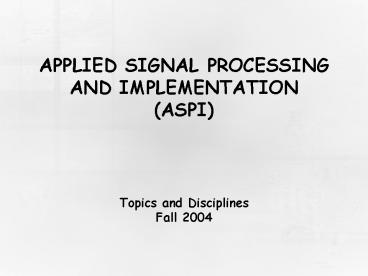

APPLIED SIGNAL PROCESSING AND IMPLEMENTATION(ASPI
)
  • Topics and Disciplines
  • Fall 2004

2
ASIC Topics and Disciplines
  • Contents
  • A3 Paradigm
  • HW-SWCo-Design generic flow
  • Topics in ASPI specialisation
  • DSP-disciplines in ASPI specialisation
  • Implementation-disciplines in ASPI specialisation
  • Design Methodology
  • Algorithm analysis
  • SW Platform analysis
  • SW Programming language compilers
  • HW Platform analysis
  • HW Programming language compilers
  • Design Space Expoloration
  • Putting it all together
  • Litterature

3
A3 Paradigm
Applications
1
Algorithms
2
4 5
Architectures
3
  • Application Non-Linear Signal Processing/Mobile
    Communication
  • Algorithm selection
  • Simulation
  • Architecture selection and modelling
  • Design Space Exploration
  • HW/SW Co-Design

4
Co-Design generic flow
5
Topics in ASPI specialisation/1
  • Applications
  • Non-linear Signal Processing
  • Mobile Communication
  • CDMA
  • 4G (OFDM-based)
  • DVB-H (IP MPEG)

6
Topics in ASPI specialisation/2
  • Algorithms
  • Filters
  • FIR/IIR/LMS/FLXMS/Warped/Kalman/..
  • Transforms
  • FFT/DFT/Wavelet/..
  • Coding/compression
  • HUFFMAN/MPEG/ReedSolomon/..
  • Modulation/demodulation
  • CDMA/OFDM/..

7
Topics in ASPI specialisation/3
  • Architectures
  • SW programmable architectures
  • CISC/RISC/DSP/VLIW
  • HW programmable architectures
  • FPGA

8
DSP-disciplines in ASPI specialisation
  • Time variant filters
  • ...
  • Domain transformations
  • ...
  • Time frequency analysis
  • ...
  • Coding/Compression
  • ...

9
Implementation disciplines in ASPI
specialisation/1
  • Design Methodology
  • Computational models
  • FSMD/SDFG/CDFG/HCDFG
  • Design meta models
  • Rugby/UML
  • Design Domains
  • Function/Communication/Data/Timing
  • Design Methods
  • SPU/OOAD/XP
  • HW-SW Co-Design

10
Implementation disciplines in ASPI
specialisation/2
  • Algorithm analysis
  • Numerical properties
  • Word length dependency
  • Cost function
  • Complexity
  • Characterisation
  • Optimisation
  • Source level transformations

11
Implementation disciplines in ASPI
specialisation/3
  • SW Platform analysis
  • Architecture analysis
  • Architecture description and rationale
  • Computational properties
  • Instruction set desription and analysis
  • Compiler analysis
  • Optimisation
  • Architecture independent
  • Architecture dependent

12
Implementation disciplines in ASPI
specialisation/4
  • SW Programming language compilers
  • Syntax semantics
  • Syntax description (EBNF)
  • Semantics
  • Data types/Operators/Type discipline
  • Code generation
  • Intermediate forms
  • Code generation
  • Instruction set scheduling and selection

13
Implementation disciplines in ASPI
specialisation/5
  • HW Platform analysis
  • Architecture
  • Models layers of abstraction
  • FSMD(M), Gates, Netlist
  • Computation, Communication and Control
  • CLB, Wires, Memories, Embedded blocks
  • Design tools
  • Data Entry
  • Architecture mapping
  • Code generation
  • Design analysis

14
Implementation disciplines in ASPI
specialisation/6
  • A HW Programming language compiler
  • Syntax semantics
  • Syntax description (EBNF)
  • Semantics
  • Data types/Operators/Type discipline
  • Sequential, Parallel and Pipelined constructs
  • Scheduling and Communication
  • Code generation
  • Internal Architecture
  • Architecture mapping (onto FPGAs)
  • Netlist generation

15
Implementation disciplines in ASPI
specialisation/7
  • Design Space Exploration
  • Estimations/Meassures
  • SW cycles
  • SW Memory size (code, data)
  • HW critical path
  • HW cost (area)
  • Power, Energy
  • Design Space Ecploration
  • Component selection
  • Allocation
  • Scheduling

16
Putting it all together
17
ASPI specialisation litterature
