IP-PBX

1

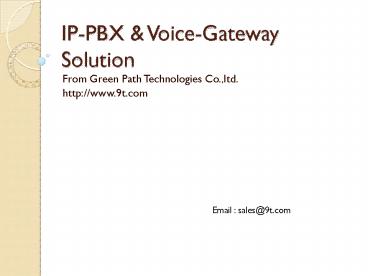

IP-PBX Voice-Gateway Solution

• From Green Path Technologies Co.,ltd.
• http//www.9t.com

Email sales_at_9t.com
2
Contents

• Product Solution Overview
• IP PBX Features
• Solutions
• Web Control Panel
• Summary

3
Product Solution Overview

• IP-PBX places intelligence into voice services in
  your company and fully controlled from the
  center.
• IP-PBX replaces traditional and soon-to-expire or
  decommission PBX and analog phone.

4
Advantages of all approach

• Maintainability
• Simplicity
• Security
• Flexibility
• Reliability
• Low cost of investment

5
IP-PBX Features

• Full IP-PBX Solution based on Asterisk
• Supports both Analogues and Digital PSTN gateway
  (FXO/FSX,BRI,PRI,E1)
• Fully Support SIP
• User customizable inbound/outbound calls

6
Fully Features PBX

• User Customizable IVR
• Define call rules for different users and
  extensions
• Voice mailbox.
• Call parking and forwarding
• Music-on-hold and voice messages
• Call permissions

7
Connectivity

• Phones/faxes connect through analogue ports (FXS)
• Softphones and SIP Phone connect via LAN
• Wifi phone connect through Access Point
• Calls routed through existing telephone service
  (PSTN)

8
Interoperability

• Supports all common IP Phone with various codes
  (GSM,G729,G711,G726)
• Support Softphone, IP Phones , Wifi Phones
• Support upto 8 FXS or FXO or combined analogue
  interface.
• Digital service such as ISDN BRI PRI or E1 also
  supported by upgrading

9
Solutions
Please note that customer is responsible for
providing a personal computer for us. Either
normal form factor, mini form factor or micro
computer will be fine.
10
Solution 1
Suitable for customers who want to use existing
traditional phones

• Work with your old traditional phones.
• Supports upto 4 internal traditional phones and 4
  external landlines

11
Solution 2
Suitable for customers who want to replace
traditional phones with new features enhanced
IPPhones

• Supports up to 4 external landlines (PSTN)
• Supports up to 20 internal IP Phones and can be
  enhanced easily with license purchasing.
• New IP phones are handled by IP-PBX

12
Solution 2
13
Web Control Panel

• Easy to use
• Control everything from anywhere

14
Web Control Panel
15
Web Control Panel IVR
16
Summary Features and Benefits

• IP-PBX includes many voice services based on open
  protocols.
• Fully featured IP-PBX with voice mail, call
  routing, parking, music-on-hold,IVR,ACD
• Integrated voice and data
• High level of connectivity both IP PSTN
• Interoperability with other devices.
• Web Management Easy to manage via web browser.
• Scalable Upgrade to E1 can be done easily by
  replacing voice card.

17
Thanks for your time

• Do you have any questions ?
