Intertask Communication and Synchronization

1

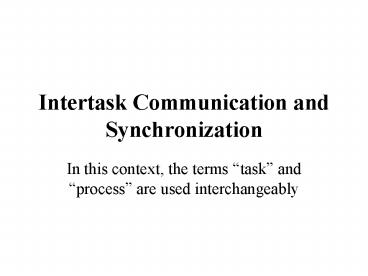

Intertask Communication and Synchronization

• In this context, the terms task and process
  are used interchangeably

2
Task Synchronization

• Recall the previously defined mechanisms for task
  (thread) cooperation (block, suspend, resume,
  etc.)
• Recall the distinctions between processes (tasks)
  and threads
• A contemporary process defines an address space
  in which multiple threads can execute and share
  common resources (code, data, etc.)
• A traditional heavyweight process (or task)
  defines an address space and a single thread of
  execution
• Because of the risks associated with shared data,
  we must have synchronization mechanisms for
  threads (or traditional processes that share
  data)
• For consistency with terminology in the text, we
  will use the terms task, process and thread
  interchangeably

3
The Critical Section Problem

• Code that is executed by a process for the
  purpose of accessing and modifying shared data is
  called a critical section.
• Only one process at a time must be allowed to
  enter its critical section.
• In other words, mutual exclusion must be enforced
  at the entry to a critical section.
• The critical-section problem involves finding a
  protocol that allows processes to cooperate in
  the required manner.

4
The Critical Section Problem (continued)

• The requirements that must be met are
• Mutual exclusion
• Progress
• Bounded waiting

5
Evolution of Solutions to the Critical Section
Problem (and the Implementation of Mutual
Exclusion)

• Software only implementations appeared first.
• Several unsuccessful attempts were tried. The
  successful implementation became known as
  Dekkers Algorithm.
• All software only implementations require a busy
  wait.

6
Evolution (continued)

• Once a successful software implementation was
  demonstrated, computer designers considered the
  assertion that hardware and software are
  logically equivalent. They implemented a new
  machine instruction called Testandset (or an
  equivalent one called Swap)
• Use of the Testandset still requires a busy wait.
• The final and most elegant solution is the
  semaphore (developed by Dijkstra)
• Use of the semaphore does not require a busy
  wait.

7
Synchronization Hardware

• The testandset instruction tests and modifies the
  contents of a word atomically.
• Function Test-and-Set (var target.boolean)
  boolean
• begin
• Test-and-Set target
• target true
• end

8
Semaphore

• A semaphore may be viewed as an abstract data
  type (ADT) having both a scalar value and a queue
  of waiting tasks
• Basic operations (not including initializing the
  scalar value) are Wait and Signal.
• For semaphore S
• Wait(S) can be defined logically as
• if S gt 0 then
• S S - 1
• else wait in Queue S
• Signal(S)
• if any task currently waits in Queue S then
• awaken first task in the queue
• else S S 1
• Both of the above operations are atomic.

9
Semaphore (continued)

• May be used for enforcing mutual exclusion and
  for signaling among different tasks
• For enforcing mutual exclusion at the entry to a
  critical section
• Semaphore mutex has an initial value of 1.
• For two tasks t1 and t2 accessing the same data
• t1 t2
• wait(mutex) wait(mutex)
• ltcritical sectiongt ltcritical sectiongt
• signal(mutex) signal(mutex)

10
Semaphores (continued)

• For signaling between 2 tasks t1 and t2
• Semaphore sem has initial value of 0.
• t2 waits for a signal from t1
• t1 t2
• ltgenerate data wait(sem)
• needed by t2gt
• signal(sem) ltuse data generated
•
  by t1gt

11
The Paradigm ofIntertask (process) Communication
and SynchronizationThe Producer-Consumer Problem

• The producer task produces information that is
  consumed by a consumer task. A buffer is used to
  hold data between the two tasks.
• The producer consumer must be synchronized
  that is, a producer must wait if it attempts to
  put data into a full buffer whereas a consumer
  must wait if it attempts to extract data from an
  empty buffer.
• This represents the basis for intertask
  communication and can take two forms
• Message passing by way of a separate mailbox
  ormessage queue
• The operating system usually provides this
  structure and the corresponding functions SEND
  and RECEIVE
• A producer SENDs to the mailbox, while the
  consumer RECEIVEs from the mailbox
• Message passing by way of a shared-memory buffer
• Usually implemented directly with semaphores
• Assumes a fixed buffer size.

12
Message Passing by way of a Mailbox, or Message
Queue

• Convenient to the programmer, because the level
  of abstraction is higher (via SEND and RECEIVE)
• Typically exhibits higher overhead, because data
  has to be moved more (sender process to mailbox
  and mailbox to receiver process)

13
Message Passing by way of a Shared-Memory Buffer

• Lower level of abstraction, requiring the use of
  semaphores
• More effort for the programmer
• Greater risk of mistakes in the use of semaphores
• Better performance due to less movement of data

14
Message Passing by way of a Shared-Memory Buffer
(continued)

• Two possible design approaches
• Traditional Bounded Buffer, in which both sender
  and receiver process can access the shared buffer
  if it is not completely full and not completely
  empty
• Sender and receiver processes separated by double
  buffers
• While one buffer is being filled by the sender
  process, the other buffer is being emptied by the
  receiver process
• Once one buffer is filled and the other emptied,
  the sender and receiver processes swap buffers
  and continue
