INTERNATIONAL TECHNICAL SAFETY FORUM

1
INTERNATIONAL TECHNICAL SAFETY FORUM

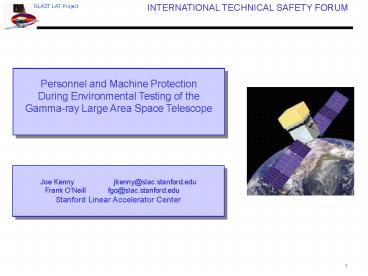

Personnel and Machine Protection During
Environmental Testing of the Gamma-ray Large
Area Space Telescope
Joe Kenny jkenny_at_slac.stanford.edu Frank
ONeill fgo_at_slac.stanford.edu Stanford
Linear Accelerator Center
2
Environmental Test Review
INTERNATIONAL TECHNICAL SAFETY FORUM

• GLAST LAT

Dimensions 2 x 2 x 1.5 m
Dimensions 2 x 2 x 1.5 m
An orbital gamma-ray observatory using e-/e pair
production to map the gamma-ray sky
3
Environmental Test Review
INTERNATIONAL TECHNICAL SAFETY FORUM
g
e
e-
4
Environmental Test Review
INTERNATIONAL TECHNICAL SAFETY FORUM

• To assure the telescope will survive launch, the
  LAT is

shaken and blasted with sound to
simulate launch conditions.
5
Environmental Test Review
INTERNATIONAL TECHNICAL SAFETY FORUM

• To assure the telescope will work in orbit, the
  LAT is

heated, cooled, placed in a vacuum, and
subjected to nonionizing electromagnetic
radiation.
6
Environmental Test Review
INTERNATIONAL TECHNICAL SAFETY FORUM

• LAT ENVIRONMENTAL TESTS

-- Vibration -- Electromagnetic compatibility --
Acoustic -- Simultaneous thermal and
vacuum punctuated with limited- and
comprehensive performance tests (LPTs and CPTs)
to assure LAT viability
7
Environmental Test Review
INTERNATIONAL TECHNICAL SAFETY FORUM

• LAT ENVIRONMENTAL TESTS

SHAKE
ZAP LISTEN
BLAST
HEAT/COLD/VACUUM
Simulations to ensure full function after launch
and in orbit
8
Environmental Test Review
INTERNATIONAL TECHNICAL SAFETY FORUM

• LAT ENVIRONMENTAL TESTS

configurations
9
Environmental Test Review
INTERNATIONAL TECHNICAL SAFETY FORUM

• LAT ENVIRONMENTAL TESTS

EMI/EMC
Acoustic
Thermal-Vacuum
Vibration
10
Environmental Test Review
INTERNATIONAL TECHNICAL SAFETY FORUM

• LAT System Safety Engineering Activities
• System safety activities to date included three
  written plans
• LAT Environmental Test Hazard Analysis review,
  approved
• Safety team coverage
• SLAC and NASA cooperated to provide direct
  monitoring by safety personnel during critical
  phases (LAT manipulation, table chamber
  installations, ODH-controlled chamber entries,
  etc.)
• Safety team
• Two NASA and two SLAC safety engineers

11
Environmental Test Review
INTERNATIONAL TECHNICAL SAFETY FORUM

• GLAST LAT Environmental Test Hazard Analysis
• Analyzes threats to the LAT and personnel from
  arrival date (NRL) to ship date from NRL
• MGSE (includes all in-NRL transit and handling)
• EGSE
• Dynamics Testing
• EMI/EMC Testing
• T-Vac
• Hazards N.O.S.
• Proposes mitigations
• Assesses post-mitigation of relative risks for
  each threat
• End product is a validation matrix for checkoff
  before and during testing

12
Environmental Test Review
INTERNATIONAL TECHNICAL SAFETY FORUM

• Mitigations LAT, GENERIC
• Collision w/floor, dropped objects, etc.
• MGSE design-safety factors proof testing
• Hoist forklift operator, rigger training and
  certification
• Use of approved procedures for critical lifts
• Diaper pins, light-bulb sleeves, etc.
• Clearance
• Verification of clearance w/test load during
  Pathfinders
• Damage during transit
• Test/certify shipping container w/test load
• Truck driver w/valid CDL
• Mitigations Human, GENERIC
• Crushed/struck by dropped object
• Hard hats, safety footwear when threat exists,
  roped-off areas
• Electric shock
• Hard hats when threat exists, roped-off areas
• Slips, trips, falls, sprains/strains
• Rapid removal of transient trip hazards
• SLAC personnel will adhere to JHAMs (includes
  PPE requirements)

13
Environmental Test Review
INTERNATIONAL TECHNICAL SAFETY FORUM

• Mitigations LAT, SPECIFIC
• Overtesting
• Vibe
• Redundant input and output cutoff mechanisms
• Voltage limits are determined from trials w/test
  load
• EMI
• Limit test-signal source by input and output
• Calibrate monitors pre-test
• Acoustic
• Employ 8 monitors for cutoff
• Thermal-Vacuum
• CDACS acceptance-tested before LAT installation
• Redundant hard- and software based limits
• At least 2 operators present at all times
• Anechoic foam particles (EMI/EMC)
• Build grounded tent around LAT

14
Environmental Test Review
INTERNATIONAL TECHNICAL SAFETY FORUM

• Mitigations LAT, SPECIFIC contd
• ESD
• LAT is bagged in ESD-dissipative film most of
  the time
• All workers are ESD-trained and will adhere to
  work requirements
• Helium (T-Vac Transit)
• Verify cryo compressor pump PMs
• Operators know how to spot and deal with pump
  failures
• LAT shipped in N2-filled hermetically-sealed
  container
• Electrical overcurrent, cable miswiring
• Redo acceptance testing after all internal
  configuration breaks
• Acoustic chamber fire
• VESDA in chamber
• Pre-action sprinklers
• Verify NRL compliance with its own NRLINST
  5101.3C, which contains design, administrative
  controls, procedures, inspection, and
  responsible-person requirements

15
Environmental Test Review
INTERNATIONAL TECHNICAL SAFETY FORUM

• Hazards Human, SPECIFIC
• Human exposure to testing environments
• ODH (Acoustic, and T-Vac)
• Chambers cleared of personnel before tests
• Acoustic chamber has low-O2 door alarm
• Both chambers vented until O2 gt 19.5
• Sound pressure (Acoustic)
• Chamber SP source interlocked to door
• Anechoic chamber fire
• See above
• Dial 767-3333 (instead of 911) for emergencies
• Shock/sulfuric acid from UPSs in EGSE
• UPSs will be replaced if need be, not serviced
  or repaired

16
Environmental Test Review
Hazard matrix
17
Environmental Test Review
18
Environmental Test Review
19
Environmental Test Review
20
Environmental Test Review
21
Environmental Test Review
22
Environmental Test Review
