PANA Implementation in Open Diameter

1

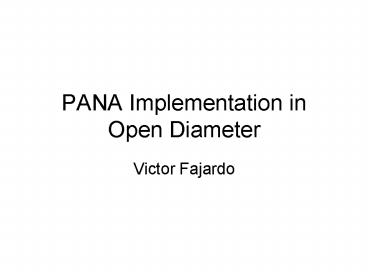

PANA Implementation in Open Diameter

• Victor Fajardo

2
General Information

• Programming Language C
• License LGPL (Lesser GNU Public License)
• Supported OS Linux, Windows XP
• Source code location http//www.sourceforge.net/p
  rojects/diameter
• libpana directory in the source tree provides
  PANA API
• Diameter and EAP implementations are also
  available

3
Functional Architecture

• Defines PANA API
• Independent of EAP implementation
• PANA API is designed to work with any EAP
  implementation including Open Diameter EAP API
• Abstracted transport model
• provides OS independency
• Multi-threading model to gain better performance
• Dictionary-based message parser
• Parser dictionary provides flexibility in
  accommodating changing message formats
• XML is used as the dictionary format
• Re-using Diameter message parser since Diameter
  and PANA message formats are similar

4
Application Interface

• Core object instances
• XML configuration loader
• Memory manager and message buffer pool
• Fast search trees for use as session database
  (PAA)
• Thread pool manager
• Auxiliary objects (timers, generators etc)
• Session based PaC and PAA objects
• Event handlers for message processing and
  notifications
• Derives from extensible state machine objects
  which implements common PANA states (termination,
  re-authentication etc)
• Management of attributes (ids, SA, MSK etc)

5
Transport Model

• Raw access to interfaces. IP Stack bypass.
• Has to provide IP and link-layer header
  inspection
• Handling of unspecified IP address
• Underlying transport implementation is complex

6
PaC Architecture
7
PAA Architecture
8
Future Plan

• PANA API
• NAP and ISP separate authentication support
• EP API support
• Support separate EP from PAA
• Presence of PaC indications (to support PANA
  authentication initiated by PAA)
• Bootstrapping other protocols
• IP-sec (draft-ietf-pana-ipsec)
• DHCP authentication (draft-tschofenig-pana-bootstr
  ap-rfc3118)
