Reprocessing: Reservoir Definition, Inc'

1

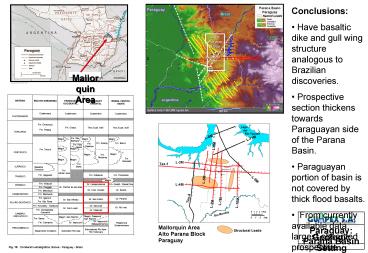

• Conclusions
• Have basaltic dike and gull wing structure
  analogous to Brazilian discoveries.
• Prospective section thickens towards Paraguayan
  side of the Parana Basin.
• Paraguayan portion of basin is not covered by
  thick flood basalts.
• From currently available data, largest observed
  prospective structure has closure in excess of 25
  km2.
• Newly imaged thickening of Silurian section
  increases potential volume of hydrocarbons
  generated.
• Well locations can be picked using available
  data, but additional seismic acquisition is
  recommended.
• Seismic imaging in this volcanically intruded
  basin requires velocity modeling based on
  integrated geologic teamwork. Seismic is most
  clearly displayed in depth, not time.

Paraguay Parana Basin
Geologic Setting
Reprocessing Reservoir Definition,
Inc. Interpretation EarthView Associates, Inc.
2
Seismic Line L-4M Migrated Depth-Section
West
East
Permian
Top Carboniferous
Potential Gas Chimney
Carboniferous
Potential Gas Chimney
Top Devonian
Devonian
PreDevonian Unconformity
Depth in Kilometers
Silurian
Mallorquin Dome
Basement
Depth Structure Basement
Mallorquin Area
L-4M
L-4M
Mallorquin Dome
Paraguay Mallorquin Lead, Alto Parana Block
Mallorquin Prospective Area
5 Kilometers
Reprocessing Reservoir Definition,
Inc. Interpretation EarthView Associates, Inc.
3
Seismic Line L-3M Migrated Depth-Section
West
East
Permian
Top Carboniferous
Carboniferous
Top Devonian
Depth in Kilometers
Devonian
PreDevonian Unconformity
Silurian
Resistant Beds
Basement
Depth Structure Basement
Example Dike and Seagull Structure
L-3M
L-3M
Paraguay Mallorquin Lead, Alto Parana Block
Mallorquin Dome
Mallorquin Prospective Area Dike Seagull
Structure
Reprocessing Reservoir Definition,
Inc. Interpretation EarthView Associates, Inc.
5 Kilometers
4
Seismic Line L-1M Migrated Depth-Section
Texaco Mallorquin 1
South
North
Permian
Top Carboniferous
Carboniferous
Top Devonian
PreDevonian Unconformity
Devonian
Depth in Kilometers
Basement
Silurian
Depth Structure Basement
L-1M
Mallorquin Area
Mallorquin Dome
L-1M
Paraguay Mallorquin Lead, Alto Parana Block
Mallorquin Prospective Area
5 Kilometers
Reprocessing Reservoir Definition,
Inc. Interpretation EarthView Associates, Inc.
5
Seismic Line TEX-1 Migrated Depth-Section
West
East
Permian
Top Carboniferous
Carboniferous
Top Devonian
Devonian
PreDevonian Unconformity
Deep Silurian Basin
Basement
Depth in Kilometers
TEX-1
Satellite View
TEX-1
Mallorquin Area
Paraguay Mallorquin Lead, Alto Parana Block
Mallorquin Prospective Area Overview
Reprocessing Reservoir Definition,
Inc. Interpretation EarthView Associates, Inc.
5 Kilometers
