Sliding Shoe Drainage Pumps

1

Sliding Shoe Drainage Pumps

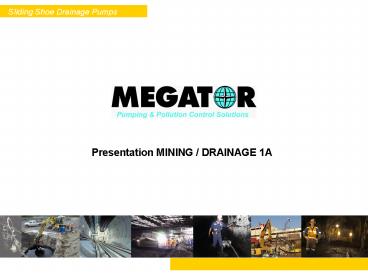

Presentation MINING / DRAINAGE 1A

2
Sliding Shoe Drainage Pumps
About Megator

• Established in 1946, as a producer of pump and
  compressors.

• The company were based on the UK mining industry.

• Today produce the Megator sliding shoe pump,
  mainly for mining, oil recovery and maritime
  applications.

3

Sliding Shoe Drainage Pumps
About Megator

• Megator Sliding Shoe Pumps

• Megator Dolphin Floating Suction Strainers and
  Skimmers for oil and froth

• Pumps 2000 Slurry Pumps

• Operates out of USA, England and Denmark - and
  via a global network of trained distributors and
  agents

Megator The reliable easy maintenance drainage
pump for continues use....

4

Sliding Shoe Drainage Pumps
Megator Sliding Shoe Pump

• Pumping water, oil, sludge, fuels, washing water
  etc

• Remote out of the water location, due to super
  suction design

• High head pumping with no loss in flow rate

• Low power consumption

• Self-compensates for wear

• 15 minute standard on-site servicing, single
  cover access

No more dragging pumps through the mud - just
drag the hose....

5

Sliding Shoe Drainage Pumps
The Internals Performance

• Capacities to 264gpm / 60m3/h

• Suction lift to 27ft / 8.2m

• Viscosities to 21.000SSU / 5.000cp

• Heads to 250ft / 75mWc

• Cast iron, bronze or aluminium

• Fitted with optional Megator Dolphin floating
  suction strainer

Super-suction, handling dry-running and high
high head applications with no flow loss....

6

Sliding Shoe Drainage Pumps
Function and Benefits

• Hydraulic pressure behind shoes causing wear
  self-adjustment

• Outstanding suction lift, even when the pump is
  no longer new

• Constant flow, even when the head increases

• Will pump varying viscosities, and tolerate
  run-dry situations

• Low shear operation ideal for separation
  applications

Remote installation and simple on-site
maintenace....

7

Sliding Shoe Drainage Pumps
Dolphin Floating Strainer

• Megator Dolphin floating strainer
• - Simple floating suction strainer that draw from
  just below the surface, avoiding sand, mud and
  floating debris

• Plastic and stainless steel design that will
  tolerate agressive fluids acids, seawater, bilge
  etc

• Will allways flow upright, even if ruptured

Reduce pump wear, prevent stoppages, lessen
cavitation risk - save their cost many times
over....

8
Sliding Shoe Drainage Pumps
Megator mine pump installation

• The Megator mine pump is supplied as a complete
  pump set pump mounted to a mild steel skid base,
  complete with NEMA/IEC drive motor, flexible
  coupling and Dolphin strainer.

• Install the pump in a tunnel / adit, with easy
  acces.

Megator pump fitted with both Dolphin strainer
and optional SIGMA skimmer.

• Install the Dolphin strainer in the area to
  dewatered. The Dolphin may be kept in place, by
  using the mooring eye fitted to it.

• One pump may be fed via more than one Dolphin,
  by the use of a manifold.

• Fill up the pump with water (initial prime) -
  and start pumping !

9
Sliding Shoe Drainage Pumps
Compared with submersible pumps

• Lower installation cost as often lower grade
  roof support will be accepted, as frequent acces
  to remote areas is not required (underground
  mining).

• Lower operational cost due to higher tolerances,
  lower speed and power consumption

• High suction allows remote location which
  minimizes the risk of run-over damages

• On-site maintenance and self-adjusts for wear

• Delivers high flow at high head, which means
  that fewer pumps are required for a given head.
  Saves energy, installation and maintenance cost.

10

Sliding Shoe Drainage Pumps

• Your local / national contact
• Megator Scandinavia Ltd
• C/o Pumps 2000 Europe Ltd
• Egholmvej 8A
• 9800 Hjørring
• Denmark
• Phone [phone]
• URL www.megator.co.uk

- Megator Sliding Shoe Pump - Megator Rotary
Lobe Pump - Pumps 2000 Air Operated Dual
Diaphragm Pump - Megator - Flexible Vane Pump -
Megator Dolphin Floating Strainers - Megator Weir
Skimmers - Megator Oil Water Separation - Megator
- Rope Mop Skimmer -
Megator Booms - Megator Oil Dispersant Systems -

11

Megator Mining and Oil Recovery
The Megator Product Range

• Megator - Pumps 2000 Slurry Pump

• Megator Oil Recovery Equipment

• Salaroll

• Megator Cyclonator

• Megator Rotary Lobe Pump

• Megator Oil Booms

• Megator Sliding Shoe Pump

12

Megator Mining and Oil Recovery
Weir Oil Skimmers

• Megator SIGMA
• - Simple glassreinforced plastic skimmer, for low
  draught applications.

• Megator ALPHA and SUMP
• Stainless steel skimmer, designed specifically
  for confined spaces. Can enter through manholes
  etc.
• Options collapsable, screen, guide rails,
  mooring eye etc

Ideal for shallow waters, run-off ponds, froth
skimming and the confined space inside tanks....
