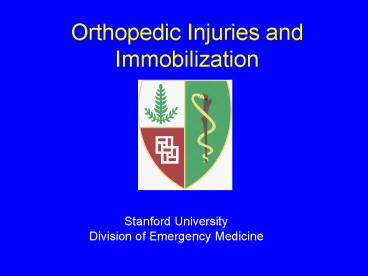

1Orthopedic Injuries and Immobilization
- Stanford University
- Division of Emergency Medicine
2History and Physical Exam
- Immediately upon presentation with a dislocation
or fracture, the neurovascular and circulatory
status must be checked. - Attempt to ascertain the mechanism of injury.
- - may alert physician to other possibly
associated - injuries
- as well as provide clues as to the type of injury
involved - Radiographs should be obtained if fracture OR
DISLOCATION is suspected - Radiographs should be obtained after reduction
and IMMOBILIZATION of a fracture or dislocation.
3How do you Describe This?
- Named by where the distal articulating surface
ends up relative to the proximal articulating
surface - e.g. Anterior shoulder dislocation
- - Humeral head is anterior to the glenoid fossa
Left Forearm fracture which is Dorsally Displaced
4REDUCING DISLOCATIONS and SUBLUXATIONS
-
- Three keys to success when attempting reduction
- a. knowledge of anatomy
- b. analgesia and sedation
- c. slow and gentle procedure
- Following reduction, the joint must be splinted
and proper follow-up is mandatory - After one or two unsuccessful attempts of
reducing a dislocation (closed reduction), it is
necessary to reduce under general anesthesia
(closed) or during surgery (open reduction)
5Finger Dislocation
- Clinical exam to determine nerve and tendon
function if possible - X-ray to confirm diagnosis
- Anesthetize with a digital block
- Reduce dislocation
- i. Apply traction in line with the distal portion
of the finger - ii. The deformity should increase slightly just
prior to joint going back in place - iii. This should be felt as a click
- Take further X-rays if necessary to rule out a
"chip" fracture - Strap injured finger to adjacent finger
- Warn patient that swelling will persist for
several months
6Shoulder Dislocation
- Take a past medical history (i.e. has this
happened before?) - Clinical exam (check for circumflex nerve
function) - X-ray to rule out possible fracture (i.e. head of
the humerus) - Several methods for reduction
- Scapular rotation
- Traction/counter traction
7Subluxation of the Radial Head (Nursemaids
Elbow)
- Definition of subluxation a joint disruption in
which the joint surfaces are maintained in some
degree of apposition. - Description the radial head slips out from under
the annular ligament. - i. Generally caused by sudden traction of the
forearm that extends and pronates the elbow (like
the motion of pulling a child off the ground by
his/her wrist). - ii. Most common in children aging 1 - 4 years
old, because the lip of the radial head is not
well formed and may slip out from under the
annular ligament with more ease. - iii. Minimal pain if the arm is stationary but
pain is felt upon flexing or supinating arm,
(parents often think it is merely a sprain and
wait 24 - 36 hours before seeking medical help) - iv. No associated swelling, ecchymosis, or
neurovascular deficit - Radiography - Normal findings
8Nursemaids Elbow Reduction
9Fracture Types
10Greenstick
- an incomplete fracture in a long bone of a child
(bones are not yet fully calcified and they break
like a green stick)
11Open Fracture
- the bone breaks and pierces the overlying skin
(osteomyelitis are more common) - 4 grades
12Spiral Fracture
- a fracture that spirals part of the length of a
long bone
13Wrist Fractures
14Scaphoid Fractures
- tenuous blood supply
- high incidence of avascular necrosis in waist and
proximal fractures - often require bone grafting
15Scaphoid Fractures
- high clinical suspicion even with normal x-ray
- follow up important- repeat x-rays and early
bone scan in patients with persistent pain - thumb spica with prolonged immobilization
16Learn How to Splint in 10 Easy Lessons!!!!
As Seen On TV!!
Hey Kids,
Amaze Your Friends !!!
WOW !!!
Be the First on your Block !!!
17Introduction
- Evidence of rudimentary splints found as early as
500 BC. - Used to temporarily immobilize fractures,
dislocations, and soft tissue injuries. - Circumferential casts abandoned in the ED
- - increased compartment syndrome and other
complications - - ideal for the ED allow swelling
- splints easier to apply
18Indications for Splinting
- Fractures
- Sprains
- Joint infections
- Tenosynovitis
- Acute arthritis / gout
- Lacerations over joints
- Puncture wounds and animal bites of the hands or
feet
19Splinting Equipment
- Plaster of Paris
- Made from gypsum - calcium sulfate dihydrate
- Exothermic reaction when wet - recrystallizes
(can burn patient) - Warm water - faster set, but increases risk of
burns - Fast drying - 5 - 8 minutes to set
- Extra fast-drying - 2 - 4 minutes to set - less
time to mold - Can take up to 1 day to cure (reach maximum
strength) - Upper extremities - use 8-10 layers
- Lower extremities - 12-15 layers, up to 20 if big
person (increased risk of burn!)
20Splinting Equipment
- Ready Made Splinting Material
- Plaster (OCL)
- 10 -20 sheets of plaster with padding and cloth
cover - Fiberglass (Orthoglass)
- Cure rapidly (20 minutes)
- Less messy
- Stronger, lighter, wicks moisture better
- Less moldable
21Splinting Equipment
- Stockinette
- protects skin, looks nifty (often not necessary)
- cut longer than splint
- 2,3,4,8,10,12-in. widths
- Padding - Webril
- 2-3 layers, more if anticipate lots of swelling
- Extra over elbows, heels
- Be generous over bony prominences
- Always pad between digits when splinting
hands/feet or when buddy taping - Avoid wrinkles
- Do not tighten - ischemia!
- Avoid circumfrential use
- Ace wraps
22Specific Splints and Orthoses
- Upper Extremity
- Elbow/Forearm
- Long Arm Posterior
- Double Sugar - Tong
- Forearm/Wrist
- Volar Forearm / Cockup
- Sugar - Tong
- Hand/Fingers
- Ulnar Gutter
- Radial Gutter
- Thumb Spica
- Finger Splints
- Lower Extremity
- Knee
- Knee Immobilizer / Bledsoe
- Bulky Jones
- Posterior Knee Splint
- Ankle
- Posterior Ankle
- Stirrup
- Foot
- Hard Shoe
23Long Arm Posterior Splint
- Indications
- Elbow and forearm injuries
- Distal humerus fx
- Both-bone forearm fx
- Unstable proximal radius or ulna fx (sugar-tong
better) - Doesnt completely eliminate supination /
pronation -either add an anterior splint or use a
double sugar-tong if complex or unstable distal
forearm fx.
24Double Sugar Tong
- Indications
- Elbow and forearm fx - prox/mid/distal radius and
ulnar fx. - Better for most distal forearm and elbow fx
because limits flex/extension and pronation /
supination.
10
90
25Forearm Volar Splint aka Cockup Splint
- Indications
- Soft tissue hand / wrist injuries - sprain,
carpal tunnel night splints, etc - Most wrist fx, 2nd -5th metacarpal fx.
- Most add a dorsal splint for increased stability
- sandwich splint (B). - Not used for distal radius or ulnar fx - can
still supinate and pronate.
26Forearm Sugar Tong
- Indications
- Distal radius and ulnar fx.
- Prevents pronation / supination and immobilizes
elbow.
27Hand Splinting
- The correct position for most hand splints is the
position of function, a.k.a. the neutral
position. - This is with the the hand in the beer can
position (which may have contributed to the
injury in the first place) wrist slightly
extended (10-25) with fingers flexed as shown. - When immobilizing metacarpal neck fractures, the
MCP joint should be flexed to 90. - Have the patient hold an ace wrap (or a beer can
if available) until the splint hardens. - For thumb fx, immobilize the thumb as if holding
a wine glass.
28Radial and Ulnar Gutter
- Indications
- Fractures, phalangeal and metacarpal, and soft
tissue injuries of the little and ring fingers.
- Indications
- Fractures, phalangeal and metacarpal, and soft
tissue injuries of index and long fingers.
29Thumb Spica
- Indications
- Scaphoid fx - seen or suspected (check snuffbox
tenderness) - De Quervain tenosynovitis.
- Notching the plaster (shown) prevents buckling
when wrapping around thumb. - Wine glass position.
30Finger Splints
- Sprains - dynamic splinting (buddy taping).
- Dorsal/Volar finger splints - phalangeal fx,
though gutter splints probably better for
proximal fxs.
31Jones Compression Dressing - aka Bulky Jones
- Procedure
- Stockinette and Webril.
- 1-2 layers of thick cotton padding.
- 6 inch ace wrap.
- Indications
- Short term immobilization of soft tissue and
ligamentous injuries to the knee or calf. - Allows slight flexion and extension - may add
posterior knee splint to further immobilize the
knee.
32Posterior Ankle Splint
- Indications
- Distal tibia/fibula fx.
- Reduced dislocations
- Severe sprains
- Tarsal / metatarsal fx
- Use at least 12-15 layers of plaster.
- Adding a coaptation splint (stirrup) to the
posterior splint eliminates inversion / eversion
- especially useful for unstable fx and sprains.
33Stirrup Splint
- Indications
- Similiar to posterior splint.
- Less inversion /eversion and actually less
plantar flexion compared to posterior splint. - Great for ankle sprains.
- 12-15 layers of 4-6 inch plaster.
34Other Orthoses
- Knee Immobilizer
- Semirigid brace, many models
- Fastens with Velcro
- Worn over clothing
- Bledsoe Brace
- Articulated knee brace
- Amount of allowed flexion and extension can be
adjusted - Used for ligamentous knee injuries and post-op
- AirCast/ Airsplint
- Resembles a stirrup splint with air bladders
- Worn inside shoe
- Hard Shoe
- Used for foot fractures or soft tissue injuries
35Complications
- Burns
- Thermal injury as plaster dries
- Hot water, Increased number of layers, extra
fast-drying, poor padding - all increase risk - If significant pain - remove splint to cool
- Ischemia
- Reduced risk compared to casting but still a
possibility - Do not apply Webril and ace wraps tightly
- Instruct to ice and elevate extremity
- Close follow up if high risk for swelling,
ischemia. - When in doubt, cut it off and look
- Remember - pulses lost late.
- Pressure sores
- Smooth Webril and plaster well
- Infection
- Clean, debride and dress all wounds before splint
application - Recheck if significant wound or increasing pain
Any complaints of worsening pain - Take the
splint off and look!
