Software Engineering of Distributed Systems

1

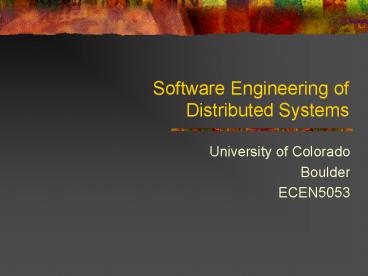

Software Engineering of Distributed Systems

• University of Colorado
• Boulder
• ECEN5053

2
Course Logistics

• Introductions
• http//ece.colorado.edu/swengctf
• http//ece.colorado.edu/swengctf/distributed
• Format
• Calendar
• Exams -- final exam only
• Homework -- in teams of 2 to 3
• Phone number for late arrival
• Contact information
• Text web site www.cdk3.net -- see key pts.

3
Outline for this session

• Definition of distributed systems
• Purposes
• Demands/challenges
• Hardware concepts
• Software concepts
• An example model

4
Definition of a Distributed System

• A distributed system is a collection of
  independent computers that appears to its users
  as a single coherent system. Andrew Tanenbaum
• A distributed system is one in which components
  located at networked computers communicate and
  coordinate their actions only by passing
  messages. Coulouris et al (your text)
• concurrency of components
• lack of a global clock
• independent failures of components

5
Alternative definition of a distributed system

• You know you have one when the crash of a
  computer youve never heard of stops you from
  getting any work done. Leslie Lamport

6
If true, implied characteristics?

• Computer heterogeneity the user
• Communication paths from users perspective
• User interaction with system from various
  locations
• User interaction with applications
• Scalability
• Availability
• Addition or temporary removal of certain
  components

7
Examples?

• internet --
• Not quite there -- some internet applications
  more so than others
• Some applications, user must be very aware of
  which computer is being accessed
• and what else?

8
Timeline of what had to happen first
high speed networks
9
Necessary Developments

• Take an historical view
• 1945 - 1985
• Computers are large expensive
• Most organizations had only a few
• lacked a way to connect them
• operated independently from one another
• By mid-80s ... powerful microprocessors with
  power of a then-contemporary mainframe
• High speed networks!
• Result Easy to combine large numbers of
  computers via a high-speed network.

10
Purposes -- what problems are solved?

• Easily connect users to remote resources
• Share resources with remote users in a controlled
  way
• Hide the fact that the resources are physically
  distributed over a network -- transparency
• Should be an open system
• Offers services by standard rules that describe
  the syntax and semantics of those services
• Should be scalable
• size, geography, and administration

11
Purpose 1 Access and sharing remotely

• Why share?
• economics
• ease of collaboration -- virtual organizations
• ease of info exchange
• commerce
• Connectivity and sharing lead to security issues
• Currently, inadequate protection

12
Purpose 2 Transparency
Transparency Description -- Hide
Access differences in data representation how resource is accessed
Location where a resource is located
Migration that a resource may move locations
Relocation that a resource may be moved while in use
Replication that a resource is replicated
Concurrency that a resource may be shared by competitors
Failure failure and recovery of a resource
Persistence whether a sw resource is in memory or on disk
13
Degree of Transparency

• Hiding all distribution aspects not always good
  idea
• Some times desirable to remain fixed
• Messages between processes that are thousands of
  miles apart will take hundreds of milliseconds
• Trade-off between high degree of transparency and
  performance -- why?
• The degree of desirable transparency should be
  considered in context with other issues such as
  performance and cost

14
Purpose 3 Openness

• Offers services according to standard rules
  describing syntax and semantics of the services.
• Rules are formalized in protocols
• Services generally specified through interfaces
• using Interface Definition Language (IDL)
• specify syntax only
• natural language used to describe semantics
• allows arbitrary process that needs an interface
  to talk to another process that provides it
• proper interfaces are complete and neutral

15
Goals of Openness

• Interoperability and portability
• completeness and neutrality are prerequisites
• Flexible
• easy to configure the system out of different
  components from different developers
• easy to add new components without impact
• easy to replace existing ones without impact
• i.e. extensible
• easier said than done

16
Purpose 4 Flexibility -- Policy and Mechanism

• System must be organized as a collection of
  relatively small and easily replaceable or
  adaptable components
• Need for change component does not provide
  optimal policy for a specific user or app
• Example differing caching policies
• Need to be able to separate policy mechanism

17
Purpose 5 Scability Challenges -- Size

• Size
• Limitations of centralized services, data, and
  algorithms -- become bottleneck
• Unlimited processing power and storage cannot
  overcome communication limitations
• Decentralization introduces some kinds of
  uncertainty

18
Purpose 6 Scalability Challenges -- Geography

• Existing distributed systems designed for LANs
  are based on synchronous communication
• Communication in WANs is inherently unreliable
  and almost always point-to-point
• LANs provide reliable comm based on broadcasting
  -- WAN needs special location services
• Centralized components prevent geographic scale

19
Purpose 7 Scalability Challenges --
Administration

• How to scale across multiple independent
  administrative domains
• Conflicting policies
• usage (payment)
• management
• security
• protect against malice from the new domains
• protect against malice from the distributed
  system -- e.g. downloaded programs

20
Scaling Techniques

• Scalability problems appear as performance ones
• hide communication latencies
• avoid waiting for responses as much as possible
• i.e. construct the requestor to use asynchronous
  comm as much as possible
• reduce overall communication
• distribution -- spreading component parts across
  the system, e.g. DNS (see next slide)
• replication across the distributed system
• increases availability (helps hide latency)
• helps balance the load between components

21
Example Dividing DNS name space into zones
Generic
Countries
int
com
mil
org
...
gov
edu
Z1
colorado
Z2
cs ece ...
Z3
22
Outline

• Definition
• Purposes
• Demands/challenges
• Hardware concepts
• Software concepts
• An example model

23
Hardware Concepts

• Introduction to how distributed systems can be
  organized
• how they are interconnected
• how they communicate

Shared bus-based Private bus-based
Shared switch-based Private switch-based
Memory
Interconnection
24
Shared Memory Private Memory

• Multiprocessors (not multicomputers)
• Single physical address space shared by all CPUs
• CPU A writes 37 to address 1000
• CPU B then reads from address 1000 and gets 37
• e.g., multiple processors on a board with shared
  memory
• Multicomputers
• Every machine has its own private memory
• CPU A writes 37 to its address 1000
• CPU B reads from its address 1000 and gets
  whatever happens to be there not affected by the
  other write
• For example, PCs connected by a network

25
Bus-based Switch-based

• Bus architecture of the interconnection network
• single network, backplane, bus, cable or other
  medium that connects all the machines
• For example, cable television
• Switched architecture
• Individual wires from machine to machine with
  many different wiring patterns in use
• Msgs move along wires with an explicit switching
  decision made at each step to route the message
  along one of the outgoing wires.
• e.g., worldwide public telephone system

26
Divide conquer -- select and explain

• Performance Impacts
• bus, shared memory
• switched, shared memory
• not quite shared memory
• homogeneous multicomputers
• private memory, bus-based network
• private memory, switch-based network
• heterogeneous multicomputer systems

27
Performance Impacts--bus, shared memory

• Bus-based multiprocessor, shared memory
• Coherent memory
• Bus contention
• If cache memory for each CPU has a high hit rate,
  bus traffic drops dramatically
• but introduces serious problem -- what is it?
• Caching and memory coherence is an issue for
  distributed systems
• Limited scalability

28
Performance impacts -- switched, shared memory

• 1. Divide memory into modules connect them to
  CPUs with a matrix of switches called a crossbar
  switch
• Allows multiple CPUs to access shared memory
  simultaneously
• One still has to wait if both want to access same
  module
• 2. Network of switches to route any input to any
  output
• May be several switching stages in-between
• Need extremely fast switching to reduce latency

29
Performance impacts--not quite shared memory

• Reduce cost of switching with hierarchical system
• SOME memory associated with each CPU (not shared)
• Access to own local memory is quick
• Accessing anybody elses memory is available but
  slower
• NUMA - Non Uniform Memory Access
• better average access times than switched nws
• whats the problem?

30
Performance impacts-- homogeneous multicomputers
(SANs)

• System of individual computers. Therefore...
• Each CPU has direct connection to its own local
  memory
• Challenges surround communication between the
  CPUs
• Traffic volume will be orders of magnitude lower
  than when interconnection network is also used
  for CPU-to-memory traffic

31
Performance impacts - private memory, bus-based
network (SANs)

• Processors connected thru shared multiaccess
  network such as Fast Ethernet
• Limited scalability -- performance degrades with
  25-100 nodes depending on amt of communication

32
Performance impacts - private memory,
switch-based network (SANs)

• Messages are routed through an interconnection
  network instead of broadcast as in bus-based
• Interconnection networks vary
• Grid -- suitable to 2-dimensional problems
• Hypercube -- n-dimensional cube
• MPPs - massively parallel processors (1000s)
• high-performance proprietary interconnection
  network designed for low latency, high bandwidth
• COWs - clusters of workstations
• Std wkstns connected by off-the-shelf
  communication components no special measures for
  high bandwidth or reliability --gt ??

33
Performance impacts - heterogeneous
multicomputer systems

• Most distributed systems are these
• Computers are heterogeneous w.r.t. processor
  type, memory size, I/O bandwidth, etc.
• Interconnection networks can be heterogeneous,
  too
• Many large-scale heterogeneous multicomputers
  lack a global system view
• cannot assume same performance or services are
  available everywhere
• THEREFORE sophisticated software is needed
• shield application developers from what is going
  on at hardware level (transparency)

34
Software Concepts

• Distributed systems software
• acts as resource manager(s) for the underlying
  hardware
• Hide intricacies and heterogeneity of underlying
  hardware
• The issues that this software faces are the core
  of distributed systems principles we will study
  this semester

35
When is a distributed system not a distributed
system?

• Distributed operating system
• Not intended to handle a collection of
  independent computers
• Network operating system
• Does not provide a view of a single coherent
  system
• true distributed system
• Goal scalability and openness of network o.s.
  and transparency and ease of use of distributed
  o.s.
• Additional layer called middleware

36
Various middleware models (paradigms)

• A particular paradigm is a set of decisions about
  how to describe distribution and communication
• Distributed file systems
• Remote procedure calls
• Distributed objects
• Distributed documents
• See table

37
Sample Paradigms
Paradigm Distribution Communication
Distributed file system Dist. xparency suppd for traditional files
Remote proc calls Network xparency allows process to call procedure on remote machine
Distributed objects meth. invocation interface implementation on process mach. translates invoc into msg sent to remote object reply msg --gt return value
Distributed documents Info orgd as docs each doc somewhere in the world
38
Each paradigm must address these issues

• Communication
• Processes their synchronization
• Processes their interaction
• Naming
• Consistency and replication
• Fault tolerance
• Security

39
Software Engineering of Distributed Systems

• Requirements specification of these issues in
  distributed systems -- how to recognize, analyze,
  specify, trace, and manage
• Design -- how to choose, represent, and verify
• Implementation -- tools, language support
• Testing -- static and dynamic
