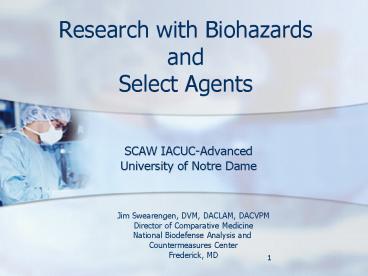

1Research with Biohazardsand Select Agents
- SCAW IACUC-Advanced
- University of Notre Dame
Jim Swearengen, DVM, DACLAM, DACVPM Director of
Comparative Medicine National Biodefense Analysis
and Countermeasures Center Frederick, MD
2Roadmap
- Responsibility and the IACUC
- Institutional Policies
- Animal Environment and Management
- Veterinary Medical Care
- Physical Plant and potential impacts of changes
in the 5th Edition of the BMBL - Additional Issues for Select Agent Research
3The IACUC
- The IACUC is appointed to oversee and evaluate
the institutions animal program, procedures, and
facilities to ensure they are in compliance with
applicable regulations and guidance.
4Other Responsibilities
- Represent institution and community
- Serve as local oversight arm for other agencies
- Foster a culture within the institute of good
animal care and use practices - Clearly articulate policies and procedures
- Ensure guidance is implemented using
scientifically sound, performance-based standards - Ensure effective training programs are
established - Stimulate improvements in the program
5Expectations
- IACUC evaluates all animal care and use programs
and animal-activity areas - Key components of a program review
- IACUC membership and function
- Personnel qualifications and training
- Occupational health and safety
- Animal environment, housing and management
- Veterinary Medical Care
6Compliance-Meeting the Intent While Facilitating
Research
- Select agent work does not release an
organization from compliance with regulations - Consequences can be very serious to the
individual and institution - Creative solutions are essential to balance
competing requirements
7ABSL versus BSL
- Adding animals presents new hazards and
challenges - May generate aerosols
- Animals bite and scratch
- Greater variability in job tasks is likely
8Key Issues of IACUC Oversight
- Study endpoints
- Post-challenge monitoring
- Well defined intervention criteria for diseases
of a known pathogenesis - Treatment
- Nursing care
- Analgesic administration
- Euthanasia
- Clear hierarchy for reporting observations and
decision making
9Key Issues of IACUC Oversight
- Study endpoints (Cont.)
- Provisions for unexpectedly severe signs
- Checklist of observations on which the endpoint
will be based - Frequency of monitoring
- Increased with development of clinical signs
- Sufficient trained staff to perform inside
containment
10Key Issues of IACUC Oversight
- Consideration of analgesics
- Appropriate justification for not using
- Sufficient personnel resources to administer
- Selection of appropriate drug
- Efficacious
- Does not interfere with data
11Key Issues of IACUC Oversight
- Semiannual program review and facility inspection
- IACUC member entrance into ABSL suites or other
methods of viewing - Have method for reviewing records located in
containment areas - IACUC membership
- Biosafety member highly useful,
- Or need highly integrated safety office
12Veterinary Care
- . Veterinary Care must be provided
- . Must include access to all animals
13Personnel Qualifications and Training
- The level of qualifications required and the
intensity of the training program depend heavily
on several issues, including - Species used
- Nature of the research being performed
- Research in biocontainment greater scrutiny of
qualifications and an intense, well documented
training program
14Personnel Qualifications and Training
- Examples of high-risk procedures
- Handling infected animals
- Administering injections
- Obtaining biosamples
- Using sharps
- Performing necropsies
- Personnel performing these types of procedures
should be limited to a select few highly trained,
highly experienced individuals
15Occupational Health and Safety
- Pre-placement medical evaluations
- Level of detail should be risk related, examples
- High risk detailed medical questionnaire and
comprehensive exam by physician - Moderate risk detailed medical questionnaire
reviewed by a health professional - Low risk screening evaluation reviewed by health
professional
16Occupational Health and Safety
- Periodic health evaluations
- Components and frequency depend on nature of
potential hazards - Can identify health alterations, leading to, but
not yet causing serious health problems (e.g.,
allergies) - Physical exams typically not a routine component,
but depends on level of risk
17Occupational Health and Safety
- Immunizations
- Based on risk of infection or exposure
- Examples
- Tetanus
- Rabies
- Working with hazardous biological agents
- Thorough risk assessment
18Occupational Health and Safety
- Zoonoses, experimental, job related risks
- Personnel should be trained on specific risks
- Knowledge of procedures for notifying supervisor
- Potential or known exposures to hazards
- Suspected zoonotic hazards in the workplace
- Bites, scratches, allergic reactions
- Illnesses
- Notification and follow-up procedures clearly
delineated
19Compliance Using a Performance Standard Approach
- Caregivers handling rabbits challenged with
Bacillus anthracis understand potential hazards - Personnel with exposure to rodents can describe
symptoms of rodent allergies - Cagewash personnel can describe safety mechanisms
and procedures for rack washer - PPE requirements consistently followed throughout
facility
20Occupational Health and Safety
- Must have a well thought-out plan for handling
of potential exposures to infectious agents and
toxins!
Rusnak, et al, 2004. Management Guidelines for
Laboratory Exposures to Agents of Bioterrorism.
J Occup Environ Med. 46791-800 Rusnak, et al,
2004. Experience in the Medical Management of
Potential Laboratory Exposures to Agents of
Bioterrorism on the Basis of Risk Assessment at
the USAMRIID. J Occup Environ. Med. 46801-811
21Animal Environment and Management
- Primary enclosures should meet Guide
recommendations - Space
- Temperature and Humidity
- Ventilation
- Illumination
- All exceptions should be justified, with IACUC
approval - Structural and social environments still need to
be considered in biocontainment
22Animal Environment and Management (Cont.)
- Husbandry
- Feed, water, bedding, and cage sanitation should
be checked daily - Exceptions to Guide recommended sanitation
schedules need justification and IACUC approval - Well documented waste streams and decontamination
procedures - Equipment should be designed for containing
infectious agents/toxins (ventilated cage units,
cage changing hoods, etc.)
23Veterinary Medical Care
- Preventive medicine
- Facilities for quarantine, stabilization, and
separation of species - Minimum of daily observation of all animals by
trained personnel - Methods in place for disease surveillance and
diagnosis - Prompt notification and timely delivery of
veterinary medical care, and associated
documentation
24Veterinary Medical Care
- Clinical observations
- Due to complex and arduous entry requirements,
many biocontainment facilities utilize husbandry
staff to conduct daily health assessments - This approach requires intensive training and
close interaction with veterinarian and
veterinary staff
25Veterinary Medical Care
- Euthanasia
- Clear criteria for initiating euthanasia
- Conducted by trained personnel
- Confirmation of death
- Consider vocalization and pheromone release
- Method of euthanasia
- Species
- Safety considerations in biocontainment
- IACUC approval for any deviations from the AVMA
Panel on Euthanasia
26Potential SOPs Physical Plant
- HVAC
- Regular monitoring of HVAC performance
- Air changes per hour
- Pressure differentials
- Visual indicator at room level
- Fail safe to prevent sustained positive
pressurization - Temperature and humidity
- Emergency power
- Cage/equipment washing facilities
- If outside containment effective methods for
decontaminating prior to washing - If inside containment protection of cage wash
staff - Quality assurance program
27Changes in the BMBLSpecial Practices
- Handling animal waste
- Transported in durable, leak proof, covered
containers - Container must have biohazard symbol
- ABSL-2 decontamination is recommended before
movement outside areas where infectious animals
are housed/manipulated - ABSL-3 method for decontamination must be
available within facility, preferably where
infectious animals are housed/manipulated - Decontamination before removal from where animals
are housed
28Changes in the BMBLSpecial Practices
- Other new for ABSL-3
- Handling of infected animals must be conducted in
a BSC or other containment device - When it cant, then a combination of PPE and
other containment devices must be used - Use of restraint devices/practices to reduce risk
of exposure during animal manipulations - Adds HEPA-filtered isolators and caging systems
as possible mechanisms to reduce risk of aerosol
infection from animals
29Changes in the BMBLSpecial Practices
- Other new for ABSL-3 (cont.)
- Criteria for actively ventilated caging systems
- Designed to contain microorganisms
- Sealed exhaust plenums
- HEPA filtered exhaust
- Safety interlock to prevent cages and exhaust
plenums from becoming positive to room - System alarmed to indicate malfunction
30Changes in the BMBLSafety Equipment
- New for ABSL-2/3
- Primary biosafety containment for animals
- When indicated by risk assessment
- Filter top cages for rodents
- Primary containment systems for larger animals
31Changes in the BMBLLaboratory Facilities
- New for ABSL-3
- Entry into containment area is via a double door
entry which constitutes an anteroom/airlock and a
change room - Showers based on risk assessment
- Decontamination of entire animal room
- Gross contamination
- Significant change in usage
- Major renovations/maintenance
32Changes in the BMBLLaboratory Facilities
- New for ABSL-3 (Cont.)
- Cages should be autoclaved or otherwise
decontaminated prior to removal from ABSL-3 space - 4th Edition cages are autoclaved or
decontaminated before bedding is removed and
before they are cleaned and washed - Cages are washed in a mechanical cage washer
33Changes in the BMBLLaboratory Facilities
- New for ABSL-3 (Cont.)
- Autoclave available which is convenient to animal
rooms. If not convenient, special practices
should be developed for transport of infectious
materials. - Equipment that may produce infectious aerosols
- must be contained in devices that have HEPA
filtered exhaust or equivalent technology - Should be tested or replaced annually
34Additional Issues for Select Agents
- Safety
- Emergency Response
- Training
Photo by Dr. Tom Geisbert, USAMRIID, 2005
Implementing regulation 42 CFR Part 73
35Safety Requirements Select Agent Rule
- Safety considerations
- Must have a written safety plan
- Complies with applicable regulations/guidelines
- Responsible Official (RO), or designee, conducts
routine inspections (not less than annually) for
compliance with the safety plan - Inspection must be documented, any deficiencies
must be corrected.
36Safety Requirements BMBL, 5th Edition
- Safety manuals
- Specific to animal facility
- Consultation with animal facility director and
appropriate safety personnel - Must be available and accessible
- Personnel advised of hazards
- Personnel required to read and follow
instructions - ABSL-2/3 Should include specific biohazards
unique to animal and protocol
37Emergency ResponseSelect Agent Rule
- Do you have an emergency response plan that
addresses - Hazards associated with BSATs
- Decontamination
- Emergency medical treatment and first aid
- Safety distances and places of refuge
- Planning and coordination with outside parties
- Emergency alert and response procedures
- PPE and emergency equipment
- Special procedures for each agent
- Animals exposed to select agents
38Emergency ResponseBMBL, 5th Edition
- Need for advanced consideration for emergency and
disaster recovery plans added to all ABSLs
39Training
- Documentation should be available for required
safety training - Initial training (prior to assignment/entry)
- Refresher training (not less than annually)
- RO can waive initial training
- Training documentation must include
- Name of individual
- Date of training
- Means used to verify employee understood training
40TrainingBMBL, 5th Edition
- Animal care, laboratory and support personnel
must have specific training - Duties
- Animal husbandry procedures
- Potential hazards
- Manipulation of infectious agents
- Precautions to prevent exposures
- Hazard exposure evaluation procedures
- Must receive annual updates OR when procedures
change
41References
- Delong, D., Gerrity, L.W., and Bayne, K. 2001.
Elements of an occupational health and safety
program Deficiencies identified by AAALAC
International. Lab Animal, 30(4)23-26. - National Research Council. Occupational Health
and Safety in the Care and Use of Research
Animals. National Academy Press, Washington
D.C., 1997. - National Research Council. Guide for the Care
and Use of Laboratory Animals. National Academy
Press, Washington D.C., 1996. - Copps, J. 2005. Issues related to the use of
animals in biocontainment research facilities.
ILAR Journal. 46(1)34-43. - CDC/NIH. Biosafety in Microbiological and
Biomedical Laboratories. 5th Edition, U.S.
Government Printing Office, Washington D.C.,
2007. - 42CFR, Part 73. Possession, Use, and Transfer of
Select Agents and Toxins. DHHS, 2002
42Questions?
