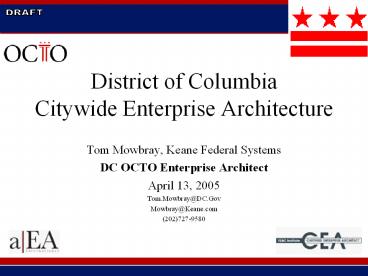

District of Columbia Citywide Enterprise Architecture

1
District of ColumbiaCitywide Enterprise
Architecture

• Tom Mowbray, Keane Federal Systems
• DC OCTO Enterprise Architect
• April 13, 2005
• Tom.Mowbray_at_DC.Gov
• Mowbray_at_Keane.com
• [phone]

2
Outline

• The EA Challenge
• Key EA Principles
• EA Framework
• To-Be EA Process
• As-Is EA Process
• EA Notation
• EA Views
• EA Governance
• Lessons Learned

ACRONYMS ARB Architecture Review Board BPR
Business Process Engineering CONOPS
Concept of Operations EA Enterprise
Architecture OCTO Office of the CTO SMP
Services Modernization Program

• SERVICES MODERNIZATION PROGRAMS
• Administrative (ASMP)
• Customer (CSMP)
• Education (EdSMP)
• Enforcement (ESMP)
• Financial (FSMP)
• Human (HSMP)
• Motorist (MSMP)
• Property (PSMP)
• Transportation (TSMP)

3
The Districts EA Challenge
9 Multi-Agency Services Modernization Programs
(SMP)
ASMP
CSMP
ESMP
EdSMP
FSMP
HSMP
MSMP
PSMP
TSMP
Undocumented, Isolated Proejects
68 Agencies, Need Transparency
380 Legacy Systems
Strong Disincentives to Share, Need for Data
Integrity
4
Key EA PrinciplesOCTOs Architecture Philosophy
is Focused on Results

• RESULTS DRIVEN Tactically Implementation
  Oriented
• Architecture results should be simple, practical,
  feasible, and useful
• VISUAL
• Priority for visual architecture models
• SELF-CONTAINED
• Docs must be self-explanatory and standalone
• BEST PRACTICES
• Use best practices of BPR and EA
• FACT-BASED and ACTIONABLE
• Generate rigorously engineered information that
  is actionable
• LONG TERM VIEW WITH SHORT TERM BENEFITS
• Define target architecture and cost benefits
• Show long term architectural fit Conduct
  Benefits Realization

Overall Information Transparency Breeds
Behavioral Correction
5
DC Enterprise Architecture Framework (DC-EAF)
SMP Concepts of Operations
To-Be
6
To-Be EA Process

• Understand the Problem,
• Define Business Solution
• Devise Target Architectures,
• Craft Transformation Plans,
• Initiate Cost-Benefits Realization

7
Process for To Be Concept of Operations
Process Improvement Planning
Strategic Implementation Planning
Project Root Causes Best Practices (i.e.
Business Conops) Approx 2 MBA X 4-6 weeks
Natural Role for Team of MBA/Business Analysts
Identifies Scope of
Project Business Operating Model (i.e. Program
Planning) Approx 2 MBA/Agency X 12-14 Weeks
Business Solution Drives
Business Priorities Determine Solution Direction
Natural Role for BPR Group
Technical Solution Enables
SubProject IT Architecture Envisioning Approx 1
Arch X 8-12 Weeks
Natural Role for Enterprise Architecture Team

• District Experiences with To Be Process ASMP,
  CSMP, ESMP, HSMP
• Cost of Concept of Operations is approx ½
  Percent of Development Cost
• Resulting Business Case Cost-Benefits of Exceed
  Development Cost with Strong Stakeholder
  Buy-In/Ownership

Best Practices Combination of BPR and EA
8
To Be CONOPS 3X5 Matrix
EXECUTIVE PERSPECTIVE
BUSINESS/PROGRAM PERSPECTIVE
GENERAL PERSPECTIVE
9
ARB Milestone 1 CONOPS Checklist
CV-1 CV-2 CV-3 CV-4 CV-5 CV-6 CV-7 CV-8 CV-9 CV-10
CV-11
We have many real examples of these deliverables
10
As Is Enterprise Architecture Process
6/4/04
6/18/04

• Information
• Architecture
• Day
• X-Brief
• X-Linkage

• Business
• Architecture
• Day
• X-Brief
• X-Linkage

One-on-One Information Modeling Sessions
One-on-One Business Arch Modeling Sessions
EA FY05 Kickoff Meeting
7/2/04
7/16/04

• Application
• Architecture
• Day
• X-Brief
• X-Linkage

One-on-One Application Arch Modeling Sessions

• Infrastructure
• Architecture
• Day
• X-Brief
• X-Linkage

One-on-One Infrastructure Modeling Sessions

• Next Year
• EA FY06 Kickoff (October 2005)
• X-Brief FY05 As Built Models
• FY05 Lessons Learned

8/6/04
Review, Publicize, Finalize
11
EA Notation Conventions

• MODELING PRINCIPLES
• Simple
• Pragmatic
• Useful
• Self Explanatory
• In Laymans Terms
• Priority Driven
• Shows Relationships
• Readable Constraints
• Visio 2000 (5 Facet UML)
• Holistic View of SMPs and Common Services

Example Information Object
General Incident Information
Bold Object Name (Abbreviation)
General incident information is common header
data on many MPDC forms, including system
generated case numbers, party identification, and
incident locations.
Current View
Object Definition (free text)
BV-ESMP MPDC Event
Business Processes
AV-ESMP Records Management System
Application Modules
NV-ESMP RMS Production DB Server NV-ESMP RMS
Backup DB Server
Infrastructure Components
Always show UML facets in same order Current View
then Business (BV), Information (IV),
Appliacation (AV), Infrastructure (NV)
12
Sample Enterprise Information Architecture Model
STRICTLY PRELIMINARY DRAFT 6/1/2004
13
Enterprise Architecture Posters

• Summary Business Enterprise Architecture
• Business Processes and Relationships
• Summary Information Enterprise Architecture
• Information Categories and Relationships
• Summary Application Enterprise Architecture
• Application components/modules and relationships
• Summary Infrastructure Enterprise Architecture
• Server and network components
• Installed software packages

Focus is on SMPs and components they depend upon
14
Architecture Trace-ability to Business Goals
Mayors Citywide Strategic Goals
Goal
Goal
Goal
Goal
Goal
Goal
Goal
Goal
MPDC Scorecard Goals
OCTO Scorecard Goals
CFSA Scorecard Goals
Goal
Goal
Goal
Goal
Goal
Goal
Goal
Goal
Goal
Goal
Goal
Goal
Goal
Goal
Goal
Goal
Goal
Goal
ASMP
HSMP
ESMP
15
Sample Infrastructure Architecture View
SAMPLE MODEL
SAMPLE MODEL

• MODEL ELEMENTS
• Server Systems
• LAN/WAN Network Components
• Storage Servers
• Network Connections

• LEVEL OF DETAIL (for Citywide EA)
• All Production SMP-related Server Boxes
• All Production SMP-related Network Boxes
• Major Production LAN/WAN components used by (or
  interfaced to) SMPs
• Installed Software Packages and Versions

The actual EA models are PROTECTED CRITICAL
INFRASTRUCTURE INFORMATION (PCII)
16
Architecture Review Board ProcessAssuring IT
Quality Through Milestone Peer Reviews
Milestone 1 System Concept Readiness
Validate Architecture
RFP
Milestone 2 Construction Readiness
RFP
RFP
Milestone 3 Operational Readiness
RFP
Verify Design with Architecture
Design Reviews
Tactical Arch. Changes
Verify Implementation with Architecture
RFP
Tactical Arch. Changes
Tactical Arch. Changes
Critical Architecture Decisions
Important Architecture Decisions
IT Systems Planning and Development Phase
Advisory Services
17
Conclusions Lessons Learned

• Key purpose of EA Launch Migration to SOA Common
  Services
• Successful in Documenting and Prioritizing the
  Services through the EA
• Sparked Creation of New IT Business Unit for
  Common Services Oversight
• Information Transparency Breeds Corrective
  Behavior
• Architecture requirements are becoming
  self-reinforcing through EA experience
  Infrastructure Resilience, Use of Common Services
  Licenses,
• Governance is Communications
• ARB Reviews Promote Many to Many
  Communications/Sharing of Expertise
• Discover new enterprise licenses / common service
  opportunities most every time ARB meets
• Plan for the consequences of architecture success
• New investment for platforms, operations,
  training, support for new enterprise license
  Common Service technologies
• Excellent development and operations phase
  management is required to realize architecture
  plans
• There are 25 concurrent EA-related initiatives in
  progress
