Data Flow Diagram Concepts

1
Data Flow Diagram Concepts

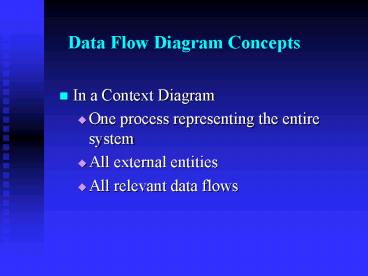

• In a Context Diagram
• One process representing the entire system
• All external entities
• All relevant data flows

2
Data Flow Diagram Concepts

• In a Level Zero Diagram
• Expect 5 /- 2 processes
• (Attempt to have all processes at same level of
  abstraction)
• All external entities
• All data stores used by these processes
• All relevant data flows

3
Data Flow Diagram Concepts

• Decomposition
• Decompose until process is clear enough that no
  further explanation is needed (functional
  primitive).

4
DFD Concepts

• Balancing
• Inputs and outputs from higher level process must
  be reflected in lower-level (decomposed)
  processes. These may be described in greater
  detail in the lower-level diagram.

5
Data Flow Diagram Concepts

• What is NOT in a LOGICAL DFD
• dynamics of system behavior
• timing
• control
• particular input/output/storage media

6
(No Transcript)
7
(No Transcript)
8
(No Transcript)
9
(No Transcript)
10
Data Flow Diagram Concepts

• Watch out for
• Black Holes
• data goes into a process (or data store) but
  doesnt come out
• Miracles
• a process produces output with no input
