Title: BTeV Muon Trigger


1

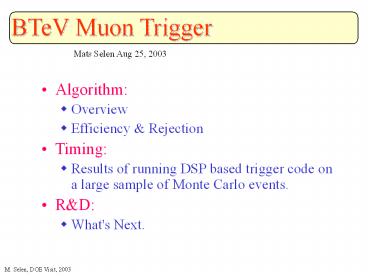

BTeV Muon Trigger
Mats Selen Aug 25, 2003
  • Algorithm
  • Overview
  • Efficiency Rejection
  • Timing
  • Results of running DSP based trigger code on a
    large sample of Monte Carlo events.
  • RD
  • What's Next.

2
Muon system has 3 stations with 4 views each
(R,U,V,S)
3
How to triggeron muon tracks
R2
R1
R0
m
In each octant For a given view (R,U,V, or
S) Examine correlations between hit tubes in
all 3 stations
4
Distance-To-Plane Cut
Muon tracks line on a simple plane R2 27.69 -
1.26R0 2.20R1(R0,R1,R2) in raw tube numbers
  • muon tracks
  • uds events

s1.5 tubes
good mevents
R2
R0
R1
Strategy Cut on closest distance to this plane
for each crossing/octant/view.
5
  • m-
  • m

Determiningtrack chargeis simple !
R2
R1
R0
R2
All we need to do is look at R2 vs R0.
R0
R2 1.275R0 -125
6
R2
Crude kinematicmeasurementsare also possible
Ptotal
  • Not exploited further in this study.
  • Can (for example) imagine calculating a
    crude dimuon mass.

R0
R2
Sin2q
R0
7
Di-Muon Trigger
m
m-
Look for tracks by octant. Look for tracks in one
or more views (R,U,V or S). Tag each octant as
NO, POS or NEG A dimuon event has at least one
POS and one NEG octant
8
Example Trigger Study
  • Conditions for these plots
  • Use all 384 tubes/view (also studied using
    only the outermost 352, 320 tubes)

2/4 and 3/4 means that 2 and 3 planes
respectively, out of the possible 4, were
needed to pass D-Cut toidentify a track in an
octant.
9
D-cut 1
ltNgt 2
Dimuon Trigger Efficiency vs. Tube Hit
Efficiency(this example is for Cut 1)
There is a large parameter space that yields e gt
60 and Rej gt 500
10
Performance vs. ltNgt (average number of min-bias
events/crossing)
3/4, e 97
Even for ltNgt 5 we can get a rejection of 500
with an efficiency of 60.
11
Size Speed
  • Work done by UIUC ECE grad student John Cassel
  • Ported RTES file-I/O code to the muon trigger.
  • Implement clock-cycle counting technique for
    timing tests.
  • Re-wrote optimized PC code for DSP (i.e. made
    it run fast !! )
  • DSP results for efficiency rejection agree with
    PC!

TMS320C6711
12
Executable Code91.3 kBytes
ltTimegt 760 ticks(6 ms _at_ 133 MHz)
ltTimegt 1686 ticks(13 ms _at_ 133 MHz)
Unless something changes,speed is not an issue.
13
Muon Trigger Status
  • Work to date is a existence proof.
  • Trigger algorithm in good shape.
  • Speed adequate.
  • System will evolve as design continues

14
BTeV Future
  • You tell us!
