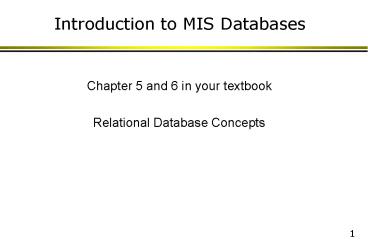

Introduction to MIS Databases

1
Introduction to MIS Databases
Chapter 5 and 6 in your textbook Relational
Database Concepts
2
Examples of Database Applications

• Purchases from the supermarket
• Purchases using your credit card
• Booking a holiday at the travel agents
• Using the local library
• Taking out insurance
• Using the Internet
• Studying at university

3
File-Based Systems

• Collection of application programs that perform
  services for the end users (e.g. reports).
• Each program defines and manages its own data.

4
Limitations of File-Based Approach

• Separation and isolation of data
• Each program maintains its own set of data.
• Users of one program may be unaware of
  potentially useful data held by other programs.
• Duplication of data
• Same data is held by different programs.
• Wasted space and potentially different values
  and/or different formats for the same item.

5
Database Approach

• Arose because
• Definition of data was embedded in application
  programs, rather than being stored separately and
  independently.
• No control over access and manipulation of data
  beyond that imposed by application programs.
• Result
• the database and Database Management System
  (DBMS).

6
Database

• Shared collection of logically related data (and
  a description of this data), designed to meet the
  information needs of an organization.
• System catalog (metadata) provides description of
  data to enable programdata independence.
• Logically related data comprises entities,
  attributes, and relationships of an
  organizations information.

7
Database Approach

• Controlled access to database may include
• A security system.
• An integrity system.
• A concurrency control system.
• A recovery control system.
• A user-accessible catalog.
• A view mechanism.
• Provides users with only the data they want or
  need to use.

8
Views

• Allows each user to have his or her own view of
  the database.
• A view is essentially some subset of the
  database.

9
Views

• Benefits include
• Reduce complexity
• Provide a level of security
• Provide a mechanism to customize the appearance
  of the database
• Present a consistent, unchanging picture of the
  structure of the database, even if the underlying
  database is changed.

10
History of Database Systems

• First-generation
• Hierarchical and Network
• Second generation
• Relational
• Third generation
• Object-Oriented

11
The DBMS Marketplace

• Relational DBMS companies Oracle, Sybase are
  among the largest software companies in the
  world.
• IBM offers its relational DB2 system. With IMS,
  a non-relational system, IBM is by some accounts
  the largest DBMS vendor in the world.
• Microsoft offers SQL-Server, plus Microsoft
  Access for the cheap DBMS on the desktop

12
Terminology

• Database persistent collection of data
• Database Management System (DBMS) software that
  controls access to the database
• Database Administrator (DBA) person who controls
  database
• Data Model general structure of the data in the
  database
• Data Language commands used to define the data
  model and give users access to the database

13
Utility of Databases

• Data has value independent of use
• Organized approach to data management
• Eliminate redundancy in data
• Share data
• Archive data
• Security of data
• Integrity of data

14
DB Terms and Techniques

• Database access is a key feature of current
  enterprise computing
• Relational DB tables
• To link/merge tables and extract/write
  information
• Structured Query Language (SQL) language of
  all modern databases (but many dialects)
• SQL is transparent operates with statements like
  SELECT, INSERT, DELETE, etc.
• SQL provides its result sets in table format

15
DB and the Internet

• One vs. multiple user access
• Internet browsers make it easy to access database
  programs (compared with traditional client/server
  programs)

16
Relational Database Model

• Database
• Database is a collection of tables (relations)
• Data are stored in tables
• Tables
• Each table has a name
• Each table has a set of columns (fields) and rows
  of data (records)
• Each table has a fixed number of columns
• Each table has an arbitrary number of rows
• Based on set theory
• SQL (Structured Query Language)
• DBMS independent language

17
Database Columns (Fields)

• Columns
• Each column has a name
• Columns are accessed by name
• No standard column ordering
• Data in a column belongs to a particular domain
• Columns are the attributes of the dataset
• Each value in a column is from the same domain
• Each value in a column is of the same data type

18
Database Rows (Records)

• Rows
• Each row entry is either a simple value or empty
  ("null")
• Rows are sets of values for the columns
  (attribute values)
• Primary key a set of columns that uniquely
  identifies each row
• Each row must be unique given the primary key (no
  duplicates)
• Rows are referenced by the primary key
• Row order cannot be determined by the user
• Does not make sense to say the fourth row like
  it does in a paper table or spreadsheet

19
Data Types

• Each row value is an instance of a primitive data
  type
• Integer
• Real (e.g., number, currency
• Character (e.g., text, hyperlink, yes/no)
• Date/Time
• No complex types in standard DBMS (matrix,
  drawing)
• MS Access will allow drawings and some objects
• Object oriented databases may allow objects and
  structures
• Non existent value is null

20
Database Design

• Database design deals with how to design a
  database
• Importance of Good Design
• Poor design results in unwanted data redundancy
• Poor design generates errors leading to bad
  decisions
• Practical Approach
• Focus on principles and concepts of database
  design
• Importance of logical design

21
Database Design Goals

• Create a balanced design which is good for all
  users
• Based on a set of assumptions about the world
  being modeled
• Determine the data to be stored
• Determine the relations among the data
• Determine the operations to be performed
• Specify the structure of the tables

22
Database Design Process

1. Identify all the objects, entities, and
   attributes
2. Identify all the dependencies, draw a dependency
   diagram
3. Design tables to represent the data items and
   dependencies
4. Verify the design
5. Implement the database
6. Design the queries
7. Test and revise

23
Identify All Objects and Entities

• Determine the objects of your Database
• For each object, describe each entity to be
  stored
• example better to store first name and last name
  separately
• Determine the data type for each item
• text, currency, date, etc.
• Determine the range of allowable values for each
  item
• non-negative?
• greater than zero?
• decimal points?
• any of the 50 state abbreviations
• zip code between 00000 and 99999
• phone number

24
Turn Data Items into Attributes

• Each attribute should have
• a meaningful name
• a description of what the attribute means or what
  kind of data make up the attribute
• a domain
• the data type of the attribute
• the range or a list of allowable values of the
  attribute

25
Identify All the Dependencies

• Assume a set of relationships between data items
• a model of the world
• may have to make assumptions
• these assumptions should be listed clearly
• Turn these relationships into dependencies
• single-valued there is one and only one value
  of x for every value of y
• a person Y receives a grade X for a course in a
  semester
• a person Y has a birth date X
• multi-valued there are zero (or one) or more
  values of x for every value of y
• a student Y enrolls in one or more classes (X)
  each semester
• a person Y has zero or more sisters
• Draw a dependency diagram

26
Single-Valued (One-to-One) Dependencies

• Draw a single-headed arrow for single-valued
  dependencies

a person has one and only one birth date
PERSON
BIRTHDATE
a student has one and only one final grade for a
course
FINAL COURSE GRADE
STUDENT
27
Multi-Valued (One-to-Many) Dependencies

• Draw a double-headed arrow between multi-valued
  dependencies

a student can enroll in one or more classes
STUDENT
CLASSES
a person has zero or more sisters
SISTERS
PERSON
28
Independent vs. Dependent Attributes

• Some attributes are independent
• E.g., in a business client relationship, your
  clients phone number does not depend on when you
  are scheduled to meet him
• your client still exists whether or not you have
  an appointment with him
• Some attributes are dependent
• the length of a side rails on a bridge is
  dependent on the structure of the bridge
• the side rails of a bridge would not exist if the
  bridge itself was not there

29
Dependent vs. Independent Attribute Representation

• Start a new bubble around an independent
  attribute
• properties of that attribute are attached to the
  new bubble
• properties that are dependent on other attributes
  are attached to the old bubble
• Each appointment is with one or more clients.
  Each appointment with one or more clients has a
  time. Each client has a single phone number.

PHONE NUMBER
CLIENT
APPOINTMENT
TIME
30
Design the Tables

• Draw a dependency diagram
• Each dependency statement is a part of the
  diagram
• Each statement is a single path through the
  diagram
• Tables are formed by traversing the dependency
  diagram

31
Traversing the Dependency Diagram

• Choose an attribute at the end of a path
• Follow the chain of arrows upwards
• each multi-valued dependency on the path becomes
  a primary key for the table
• combine all single-valued attributes at first
  level up into a single table
• all attributes on the path should be included in
  the table
• stop when you reach a bubble that has no arrows
  coming into it
• each path becomes a separate table
• Mark off your traversed path
• Repeat until all paths have been traversed

32
Verify the design

• Inspect your tables
• are all of the data included?
• Do you have too many tables? too few?
• If your design does not appear correct
• go back to step 1
• you must repeat all steps of process in order
• do not try to rearrange dependency diagram to
  give you the tables you think you should have

33
Common Database Design Mistakes

• Assuming the order of rows and columns is known
• this is not a spreadsheet!
• do not assume sorted order unless you explicitly
  sort
• Guessing the design, not following the process
• Storing what you can compute (when the value will
  change)
• e.g., do not store age if you are already storing
  birth date
• Represent multi-valued dependencies in fixed size
  sets
• if you know that there are exactly X number of
  something, create X single-valued dependencies,
  otherwise use multi-valued dependency
• Adding a key when a unique value exists
• adding an ID number for each person when you are
  already storing their social security number

34
Results

• If you follow the process correctly
• you will not have redundant data
• you will not lose unrelated data when you delete
  values
• Databases with these characteristics are called
  3NF (Third Normal Form) databases
• Normalization means the tables are properly
  designed.

35
Goal Build a Business Application
Tools Database Design SQL (queries) Programmin
g
Best
Spend your time
on design and SQL.
Worst
Compensate for poor design
and limited SQL with programming.
36
Application Development
tasks
Feasibility Identify scope, costs, and schedule
Analysis Gather information from users
Design Define tables, relationships, forms,
reports
Development Create forms, reports, and help
test
Implementation Transfer data, install, train,
review
time
37
DBMS Features/Components

• Database engine
• Storage
• Retrieval
• Update
• Query Processor
• Data dictionary
• Utilities
• Security

• Report writer
• Forms generator (input screens)
• Application generator
• Communications
• Programming Interface

38
DBMS Engine, Security, Utilities
Data Tables
Product ItemID Description 887 Dog food 946 Cat
food
Order OrderID ODate 9874 3-3-97 9888 3-9-97
Customer CustomerID Name 1195 Jones 2355 Rojas
Database Engine
Product ItemID Integer, Unique Description Text,
100 char
Customer CustomerID Integer, Unique Name Text, 50
char
Data Dictionary
Security
User Identification Access Rights
Concurrency and Lock Manager
Utilities
Backup and Recovery
Administration
39
Database Tables (MS Access)
40
Database Tables (Oracle)
41
DBMS Report Writer
All Data
Database Engine Data Dictionary
Query Processor
Report Writer
Report Format and Query
42
Report Writer (Oracle)
43
DBMS Input Forms
All Data
Database Engine Data Dictionary
Query Processor
Form Builder
Input Form Design
44
Relational Database
Customer(CustomerID, Name,
Order(OrderID, CustomerID, OrderDate,
ItemsOrdered(OrderID, ItemID, Quantity,
Items(ItemID, Description, Price,
45
Object-Oriented DBMS
Customer
Order
CustomerID Name
OrderID CustomerID
Add Customer Drop Customer Change Address
NewOrder DeleteOrder
OrderItem
Item
OrderID ItemID
ItemID Description
OrderItem DropOrderItem
New Item Sell Item Buy Item
46
OO Difficulties Methods
IBM Server
Unix Server
Database Object
Personal Computer
Database Object
How can a method run on different
computers? Different processors use different
code. Possibility Java
Customer Method Add New Customer
Application
Customer Name Address Phone
Program code
47
End of Lecture
Next Topic Entity Relationships and Database
Diagrams.
