Title: Automating Equipment Information eXchange AEX


1

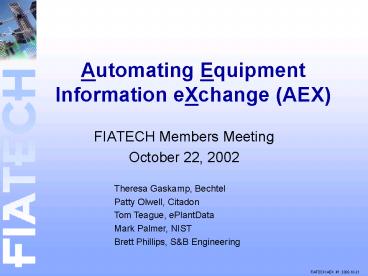

Automating Equipment Information eXchange (AEX)
  • FIATECH Members Meeting
  • October 22, 2002

Theresa Gaskamp, Bechtel Patty Olwell,
Citadon Tom Teague, ePlantData Mark Palmer,
NIST Brett Phillips, SB Engineering
2
FIATECH Vision
3
Software and Information Flows
Owner
EPC
Supplier
4
Lack of Interoperability
  • NIST auto industry study finding 1 Billion per
    year loss
  • Construction industry estimates higher cost
    impact
  • Longer cycle times impact schedules
  • Electronic data not effectively reused, leveraged
    or archived

5
Interoperable Future VisionData is available to
anyone, wherever, and whenever its needed
6
Benefits of Interoperability
More than 1 B estimated annual savings
  • Reduce supply chain friction
  • Reduce capital costs
  • Reuse data over facility life cycle
  • Reduce cost and implementation time for
    multi-vendor software integration

7
AEX Project
  • Objective
  • Automate equipment design and delivery work
    processes through software interoperability
  • Approach
  • Focus on solving problems that deliver high
    benefits
  • Demonstrate incremental working solutions
  • Deploy in months, not years
  • Promote broad-industry acceptance by
    collaborating with other industry groups and
    stakeholders

8
AEX Phase 1 Scope
  • Demonstrate success on small scope
  • Basic information model for all equipment
  • Detailed information models for
  • centrifugal pumps
  • shell and tube heat exchangers
  • Equipment data sheets and equipment lists
  • Transactions
  • RFQ, Quote, PO, As-built, BOM
  • Participants
  • Owners, EPCs, Software Suppliers
  • Related industry groups

9
Phase 1 Goals
  • Identify high-value opportunities
  • Develop practical analysis and development
    methodology
  • Produce robust equipment information models using
    XML
  • Software demonstrations
  • Obtain broad industry support
  • Publish XML Specifications and Guidelines

10
Phase 1 Results
  • Mapped equipment information flows and data
    elements
  • Identified high value transactions
  • Investigated and leveraged related efforts
  • Horizontal ebXML, OAGIS, UBL
  • Vertical PIDX, PlantData XML, RosettaNet
  • Worked with related industry groups
  • ASHRAE, CII, DIPPR, NIBS/OM, PDAC, PIDX, PIP,
    PlantSTEP
  • Developed XML specifications for common elements,
    pumps and heat exchangers

11
Phase 1 Industry Uptake
  • Draft XML specifications reviewed
  • Additional reviews planned for November
  • Openly available
  • Invite anyone planning XML software
    implementations to review draft specs now
  • Software implementations are starting
  • Project results published early next year

12
AEX Phase 2
  • Expand scope to 40-60 equipment types
  • Provide equipment list summary for all common
    equipment types
  • Investigate adding commissioning operations
    information
  • Deploy in multiple software systems
  • Promote broad deployment

13
Benefits to Owners
Improved competitiveness in global market
  • Reduce capital project costs and schedules
  • Archive and reuse electronic information over
    facility life cycle
  • Continued use of preferred software
  • Partners continue to use their own preferred
    software

14
Benefits to EPCs
Improved competitiveness in global market
  • Enhance delivered value to customers
  • Reduce costs and schedule
  • Streamline interactions with suppliers and
    subcontractors
  • Continued use of preferred software
  • Partners continue to use their own preferred
    software

15
Benefits to Software Suppliers
Improved competitiveness in global market
  • Enhance value to customers through reuse of data
    captured in other systems
  • Retain focus on core capabilities
  • Reduce integration costs for customers
  • Build and maintain one standard data interface,
    not many

16
Benefits to AEX Sponsors
  • It wont happen without YOU!
  • Pushes industry closer to true interoperability
    FASTER!
  • Influence scope of each development phase
  • Reduce risks through industry collaboration
  • Improve competitiveness through early deployment

17
Panelists
  • Theresa Gaskamp, Bechtel
  • Patty Olwell, Citadon
  • Tom Teague, ePlantData
  • Mark Palmer, NIST

18
AEX Project Organization
19
Software Usage Survey
  • Process Simulator
  • Aspen Tech/Hyprotech, SimSci, Chemstations, BRE
  • Equipment Design
  • Flowserve, Goulds, Sulzer, Engineered Software,
    Sundyne, Ebara, HTRI, AspenTech/Hyprotech, Coade,
    Codeware
  • Datasheet
  • In-house, AspenTech/Hyprotech, Intergraph,
    Cadcentre
  • Equipment Instrument List
  • In-house, AspenTech, Cadcentre, Intergraph,
    Bentley/Rebis
  • Intelligent PID
  • In-house (AutoCAD/Microstation), Bentley/Rebis,
    Cadcentre, Intergraph, Plant4D
  • Cost Estimating
  • In-house, AspenTech, Process Plant Estimating
  • Procurement
  • In-house, Marian/Intergraph, SAP
  • Bid Tabulation
  • In-house (EXCEL and Web Site)
  • Order Entry Tracking
  • In-house, Marian/Intergraph, SAP
  • Collaboration
  • Citadon, e-Builder, Skire
  • E-Marketplace
  • Trade-Ranger, ProcureZone, Pantellos
  • Plan, Schedule Track
  • Primavera, Microsoft, Meridian
  • ERP Asset Management
  • SAP
  • Maintenance Management
  • MRO Software, Meridium, SAP, JD Edwards
  • Integration / Middleware
  • Impress
  • Data Warehouse
  • EPM, ESSI, Intergraph

20
Status of Deliverables
  • Initial draft XML Schemas completed August 2002
  • Currently seeking broad industry review/comment
  • September-November 2002
  • Meetings, e.g., with PIDX, PIP, API, POSC Caesar
    9/26/02
  • Web-based reviews
  • Incorporating industry feedback
  • Initiate activity to build software
    implementations
  • November 2002
  • Incorporate feedback from software demos
  • Publish XML Schemas and Guidelines
  • January 2003

21
Review of eBus Frameworks and Specs (incomplete)
