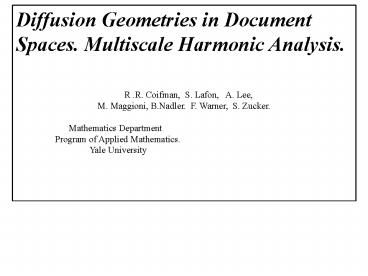

Diffusion Geometries in Document Spaces' Multiscale Harmonic Analysis'

1
Diffusion Geometries in Document Spaces.
Multiscale Harmonic Analysis. R .R.
Coifman, S. Lafon, A. Lee, M. Maggioni,
B.Nadler. F. Warner, S. Zucker.
Mathematics Department
Program of Applied Mathematics.
Yale University
2
Our goal is to report on mathematical tools used
in machine learning, document and web browsing,
bio informatics, and many other data mining
activities. The remarkable observation is that
basic geometric harmonic analysis of empirical
Markov processes provides a unified mathematical
structure which encapsulates most successful
methods in these areas. relations These methods
enable global descriptions of objects verifying
microscopic (like calculus). In particular we
relate the spectral properties of Laplace
operators (on discrete data ) with the
corresponding intrinsic multiscale folder
structure induced by the diffusion geometry of
the data (generalized Heisenberg principle)
3
This calculus with digital data provides a first
step in addressing and setting up many of the
issues mentioned above ,and much more, including
multidimensional document rankings extending
Google, information navigation, heterogeneous
material modeling, multiscale complex structure
organization etc. Remarkably this can be
achieved with algorithms which scale linearly
with the number of samples. The methods described
below are known as nonlinear principal component
analysis, kernel methods, support vector
machines, spectral graph theory, and many more
They are documented in literally hundreds of
papers in various communities. A simple
description is given through diffusion
geometries. We will now provide a sketch of the
basic ideas and potential applicability.
4
(No Transcript)
5
(No Transcript)
6
(No Transcript)
7
Diffusions between A and B have to go through the
bottleneck ,while C is easily reachable from B.
The Markov matrix defining a diffusion could be
given by a kernel , or by inference between
neighboring nodes. The diffusion distance
accounts for preponderance of inference . The
shortest path between A and C is roughly the same
as between B and C . The diffusion distance
however is larger since diffusion occurs through
a bottleneck.
8
Diffusion as a search mechanism. Starting with a
few labeled points in two classes , the points
are identified by the preponderance of
evidence. (Szummer ,Slonim, Tishby)
9
Conventional nearest neighbor search , compared
with a diffusion search. The data is a pathology
slide ,each pixel is a digital document (spectrum
below for each class )
10
Another simple empirical diffusion matrix A can
be constructed as follows Let represent
normalized data ,we soft truncate the
covariance matrix as
A is a renormalized Markov version of
this matrix The eigenvectors of this matrix
provide a local non linear principal component
analysis of the data . Whose entries are the
diffusion coordinates These are also the
eigenfunctions of the discrete Graph Laplace
Operator.
This map is a diffusion (at time t) embedding
into Euclidean space
11
As seen above on the spectra of various powers of
a Diffusion operator A . The numerical rank of
the powers are reduced . This corresponds to a
natural multiresolution wavelet or Littlewood
Paley analysis on the set . Orthonormal
scaling functions and corresponding wavelets can
be constructed (even in the non symmetric case)
12
A simple application of this diffusion on data
,or data filters is the Feature based diffusion
algorithms ,sometimes called collaborative
filtering. Given an image, associate with each
pixel p a vector v(p) of features . For example
a spectrum, or the 5x5 subimage centered at the
pixel ,or any combination of features . Define a
Markov filter as
The various powers of A or polynomials in A
provide filters which account for feature
similarity between pixels .
13
Feature diffusion filtering (by A. Szlam) of the
noisy Lenna image is achieved by associating with
each pixel a feature vector (say the 5x5 subimage
centerd at the pixel) this defines a Markov
diffusion matrix which is used to filter the
image ,as was done in for the spiral in the
preceding slide
14
The long term diffusion of heterogeneous material
is remapped below . The left side has a higher
proportion of heat conducting material ,thereby
reducing the diffusion distance among points ,
the bottle neck increases that distance
15
Diffusion map into 3 d of the heterogeneous graph
The distance between two points measures the
diffusion between them.
16
(No Transcript)
17
The First two eigenfunctions organize the small
images which were provided in random order
18
Organization of
documents using diffusion geometry
19
We claim that the self organization provided
through the diffusion coordinates of the data ,is
mathematically equivalent to a multiscale
folder structure on the data A structure that
can be obtained directly through basic
multiscale diffusion book keeping The
characteristic functions of the folders can be
used to define diffusion wavelets or filters . (
detailed Wavelet Analysis is provided by M
.Maggioni in his talk.)
20
A very simple way to build a hierarchical
multiscale folder structure is as follows. We
define the diffusion distance between two subsets
E and F as
21
To build a multiscale hierarchy of folders we
start with a cover of the document graph with
disjoint sets of rough diameter 1 at scale 1 .
We then organize this metric space into a
disjoint collection of folders whose diffusion
diameter at scale 2 is roughly 1 . Each such
collection of folders is a parent folder, we
repeat on the parent folders using the diffusion
distance at scale 4, and rough diameter 1 to
combine them into grandparents, etc . This
construction extends the usual binary coordinates
on the line and does not build clusters it merely
organizes the data.
22
(No Transcript)
23
(No Transcript)
24
In general given a data matrix such as a word
frequency matrix in a body of documents , there
are two folder structures ,one on the columns
documents graph the other on the words graph . In
the document graphs, folders correspond to
affinity between documents while on the words,
folders are meta words or conceptual functional
groups (as seen in the documents). In the image
below our body of documents are all 8x8
subimages of a simple image of a white disk on
black background . The documents are labeled by a
central pixel .The folders at different diffusion
scales are the geometric features derived from
this data set . The only input into the
construction is the infinitesimal affinity
between patches .
25
(No Transcript)
26
(No Transcript)
27
EEG Graphs

• Green most visited state, Blue no state, Red
  3 remaining states
• States defined via pattern of frontal electrodes
  (F7, Fp1,Fp2,F8)
• Three graphs for graph and three for Beltrami
  one using only front, one using a mix (indicated
  in figure), and one using all

28
10-20 System of Electrode Placement for EEG
29
