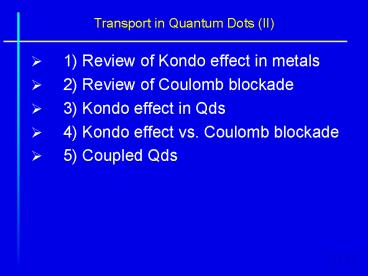

Transport in Quantum Dots (II)

• 1) Review of Kondo effect in metals
• 2) Review of Coulomb blockade
• 3) Kondo effect in Qds
• 4) Kondo effect vs. Coulomb blockade
• 5) Coupled Qds

2
Kondo effect in metals
Metal
Important A resonant state appears at EF
J. Kondo, Prog. Theor. Phys 32, 37 (1964)
3
Kondo model -gt Anderson model

When Ni 1 the impurity Anderson model can be
mapped in the Kondo impurity model
(Schrieffer-Wolff transformation).
4
Quantum Dot
Barriers (t')
Leads
Gate Potential (Vg)
Quantum Dot (U)
5
Conductance
Vg
The conductance is defined as (0 bias)
6
The effect of the temperature
Fermi distribution when T increase
Vg
Meir et al. Phys.Rev.B 23, 3048 (1991)
7
Coulomb Blockade vs Kondo
Kondo regime (TltTk)
CB regime (TgtTk)
8
Tk and experiments
The Tk for the Anderson impurity model is
9
QD - Kondo effect
Coulomb Blockade valley
Kondo peaks
Decreasing Temp.
L.Kouwenhoven et al Phys.Today Jan.2001
D.Goldhaber-Gordon et al Nature 391, 156 (1998).
10
Coupled Qds
Gate potential
Quantum dots
Barriers
Leads
11
Dimer states
.t'
Vg
Vg
Vgt'
Vg
.t'
.t'
Vg-t'
12
Exact diagonalization Dyson Eq.
1) Divide the system in two parts (cutting two
connections)
2) Solve the many-body cluster using exact
diagnalization technique (ground state
calculation)
3) re-establish the cutted connections using a
Dyson equation
13
Some results
Density of states
14
2QDs - Coulomb Blockade
Vg2
R
L
Vg1
Hubbard I calculation
F. Hofmann et al, Phys. Rev. B 51, 13872 (1995)
15
2QDs - Kondo regime
Exact diagonalization calculations
H. Jeong, Science Vol 293, 2221 (2001)
16
Conclusions

• 1) The discrete levels of the QDs can mimic the
  levels of the atoms. They are called artificial
  atoms.
• 2) The low energy physics (as Kondo effect) of
  atoms could be observed in Qds.
• 3) A collection of Qds can represent molecules

17
..........
18
Coulomb Diamond
Wider peaks in the conductance
19
Transport in organic molecules
W. Liang et al, Nature Vol. 417, 725 (2002)
Leads
Small gap (1 nm) between the metal tips
20
Kondo
No conductance
Coulomb blockade
