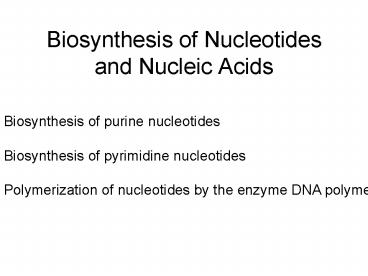

Biosynthesis of Nucleotides and Nucleic Acids

1
Biosynthesis of Nucleotidesand Nucleic Acids
Biosynthesis of purine nucleotides Biosynthesis
of pyrimidine nucleotides Polymerization of
nucleotides by the enzyme DNA polymerase
2
Structures of Nucleotide Bases
3
Nucleotide Structure
4
5-phosphoribosyl-1-pyrophosphate (PRPP)
The ribose phosphate in the final nucleotide
product is obtained from the precursor
molecule5-phosphoribosyl-1-pyrophosphate (PRPP).
Ribose 5-phosphate
Ribose phosphatepyrophosphokinase
5-phosphoribosyl-1-pyrophosphate (PRPP)
Nucleotides
5
Biosynthesis ofPurine Nucleotides
6
Origin of the ring atoms of purines
HCO
HCO
7
Step 1 An amino group donated by glutamine is
attached at carbon 1 of PRPP
8
Step 2 Three atoms from glycine, an amino
acid,are added to what will become the
five-membered ring
9
Step 3 The added glycine amino group is
formylated by N10-formyltetrahydrofolate
10
Step 4 A nitrogen is donated by glutamine
11
Step 5 Dehydration and ring closure producesthe
five-membered imidazole ring of the purine
12
Step 6 A carboxyl group is added using
bicarbonate
13
Step 7 A rearrangement transfers the carboxylate
from theexocyclic amino group to position 4 of
the imidazole ring
14
Step 8 Aspartate is added to the carbonderived
from bicarbonate
15
Step 9 The carbon skeleton of aspartate is
eliminated as fumarate
16
Step 10 The final carbon atom is contributed
byN10-formyltetrahydrofolate
17
Step 11 Ring closure produces inosinate (IMP)
18
Inosinate monophosphate (IMP) is a purine ring
precursor
19
Adenylate and Guanylate are synthesized from
Inosinate
20
Adenylate and Guanylate are synthesized from
Inosinate
21
Biosynthesis ofPyrimidine Nucleotides
22
UTP and CTP
H
Synthesis of pyrimidines UTPand CTP
fromaspartate andcarbamoyl phosphate
OPO3
23
Synthesis of pyrimidines UTPand CTP
fromaspartate andcarbamoyl phosphate
Dehydration and ring closure
Formation of a double bond
24
Synthesis of pyrimidines UTPand CTP
fromaspartate andcarbamoyl phosphate
25
Synthesis of pyrimidines UTPand CTP
fromaspartate andcarbamoyl phosphate

26
Synthesis of deoxyribonucleotides
Ribonucleotides are used for RNA synthesis.For
DNA deoxyribonucleotides are needed. The 2
carbon of ribose is reduced to form
deoxynucleotides. Ribonucleotide reductase
catalyzes the reduction of 2 carbon.
H
27
Synthesis of Thymidylate
28
Catalysis by thymidylate synthase
29
Nucleotide Biosynthesis and Cancer
Cancer cells, which are growing more rapidly than
normal cells have a requirement for the
synthesis of new DNA. Cancer cells, therefore,
are more sensitive to drugs that
inhibit nucleotide biosynthesis than a normal
cell. Many chemotherapeutic agents act by
inhibiting enzymes of nucleotide biosynthetic
pathways.
30
Azaserine and Acivicin
Glutamine analogs azaserine andacivicin inhibit
glutamine amidotransferases, enzymes
thatprovide nitrogen for manynucleotide
biosynthetic pathways.
XMP-glutamineamidotransferase
31
Thymidylate synthase and dihydrofolate reductase,
enzymes critical forthe synthesis of
thymidylate, are primary drug targets.
Methotrexate, an structural analog of
tetrahydrofolate, inhibits dihydrofolate
reductase. Fluorouracil inhibits thymidylate
synthase.
32
Fluorouracil inhibits the enzyme thymidylate
synthase
33
Methotrexate, an structural analog of
tetrahydrofolate, inhibits dihydrofolate
reductase
34
Nucleotide Structure
Nucleotides are linked by phosphodiester bonds
between the 5-PO4 and the 3-OH.
35
Phosphodiester bonds are formed by a nucleophilic
attack of a free 3-OH on the 5-a-PO4 of the
incoming dNTP.
36
Requirements for DNA replication
The enzyme DNA polymerase. A DNA template to
guide synthesis. A primer, a short nucleotide
segment complementary to the template that can
provide a free 3-OH for synthesis. Primers are
often short RNA oligonucleotides
synthesized when and where needed by specialized
enzymes.
