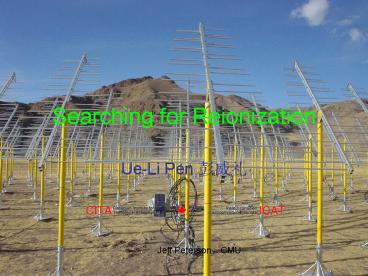

Searching for Reionization

1
Searching for Reionization

• Ue-Li Pen ???

Jeff Peterson,CMU
2
Reionization

• First objects
• 21cm _at_ zgt6
• 50-200 Mhz
• ?T 23 mK, 0.3 mJy
• Angular scale 5ltTlt20, freq res 500 khz

z10 simulation, Furlanetto et al, 2004
3
21CMA/PAST

• Funded by NOAC, 1m spent, 1m this year, 3m
  total
• Differs in approach from LOFAR, MWA focused EOR
  experiment, fixed NCP pointing, high gain
  antennae, PC correlators, TV components, CMB
  style fisher analysis
• 20000 m2 effective area

4
21CMA/PAST Site
5
(No Transcript)
6
(No Transcript)
7
(No Transcript)
8
(No Transcript)
9
(No Transcript)
10
Software correlator
11
Single baseline U-V map data
Almost no interference, excellent u-v coverage
12
Single day, single baseline, prototype
12 correlating pods of 127 antenna each 24h
integration many extragalactic sources
NCP
3C061.1
100-200 Mhz, 10o FOV
13
Meteor reflections
f
t
14
(No Transcript)
15
Analysis

• From CMB field generalized pixels
• Eg. CBI, DASI
• Linear algebra based on Fisher matrices, Wiener
  filters for foregrounds
• Linear measurement equation (Beam solving)

16
Indian Giant Meterwave Radio Telescope
30 dishes _at_40m ea. Operates in 2m
band Collaborators Y. Gupta (chief scientist),
Rajaram Nityananda (director), R. Subramanian
(Raman)
17
GMRT Search

• Operating telescope, 37000m2, up to 32 Mhz BW,
  polarized correlator, lowest band 100-200 Mhz.
  Biggest collecting area in this band.
• Half in central 1km core, rest in 50 km Y.
• Currently hits RFI limit after a few minutes of
  integration power lines, TV stations, HAM
  amateurs, faulty home electronics. Exploration of
  new RFI mitigation schemes, software correlator.

18
GMRT 150 Mhz image By Ishwara Chandra
(NCRA) Image noise 2 mJy Thermal limit 0.5 mJy
19
Lag-Frequency plot
freq
100 hz
50 hz
lag
20
Large Volume Simulations
100 Mpc 4 billion particle simulation I. Iliev,
G. Mellema 1 degree FOV
21
Comoving distances
Low l anomaly model primary CMB to l20
CMB
reionization
ISW lensing map predictions
T-E correlations can be predicted!
EoR
Pen 2003
22
Conclusions

• Several experiments operating or under
  construction. Detection will be very
  challenging 10mK.
• GMRT and 21CMA/PAST currently processing initial
  data. First detection goals largest structures
  (gt10 Mpc), lowest redshift. QSOs?
• Simulations will be challenging and crucial for
  the interpretation of initial data.
• Potential new window on universe, with very large
  numbers of structures with redshift Lensing,
  precision cosmology.
