Lecture 5 Basic Modulation Techniques (I)

1

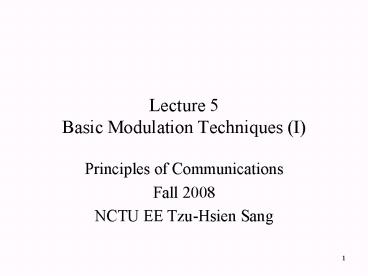

Lecture 5Basic Modulation Techniques (I)

• Principles of Communications
• Fall 2008
• NCTU EE Tzu-Hsien Sang

1
1
2
Outlines

• Linear Modulation
• Angle Modulation
• Interference
• Feedback Demodulators
• Analog Pulse Modulation
• Delta Modulation and PCM
• Multiplexing

2
3
To modulate or not to modulate, that is the
question

• Recall the simple digital modulation for
  transmitting 0s and 1s with fiber optics.
• In some aspects, digital modulation is much
  simpler than analog modulation.
• Modulator alters a carriers shape so that the
  alteration the intended message (information).
• Modulation, historically, is done on the RF
  carrier wave. Thus the conversion from message
  signals to RF signals is also called modulation.

4
Linear Modulatoin

• General form
• The envelope A(t) has a one-to-one correspondence
  with the message m(t).
• Example I DSB (Double SideBand) Suppressed
  Carrier (SC)

5

• Coherent (Synchronous) Demodulator (Detector)
  The receiver knows exactly the phase and
  frequency of the received signal.

6

• What if the receiver reference is not coherent?
  ---- A phase error case (?(t), unknown, random,
  time-varying, )

7
Lets synch up!

• Carrier recovery Regenerate the carrier at the
  receiver ( fc and ?(t) )
• Example Square circuit

8

• What are we expecting? It will become much
  clearer if we look in the frequency domain.
• FT of xr2(t)

9
Side Show The importance of synchronization

• In communications, many things heavily depend on
  the synchronization between the Rx and the Tx.
  There are many usages of the word
  synchronization. So be careful

• Example The French composer Pierre Schaeffer
  (1910-1995) had done probably the first
  tele-synchronized act of art in 1944 to celebrate
  the liberation of Paris.

10

• Example Global Positioning System Use the time
  differences of received signals from satellites
  to determine the location.
• Q Can you do a coarse estimation of what it
  takes to have a 10m precision?
• The speed of light
• The modulation scheme

11

• Example II Amplitude Modulation (AM), its
  simply DSB with carrier

12
(No Transcript)
13
Demodulation

• Coherent detection precise but requires carrier
  recovery circuit.
• Incoherent detection envelope detection Simple
  receiver (LPF) but requires sufficient carrier
  power (a lt 1) and fc gtgt W. ( In theory, fc gt W is
  ok, but a good LPF is needed.)
• Think about the advantages and disadvantages of
  analog signal processing (against DSP).

14
(No Transcript)
15
(No Transcript)
16
This is the way to figure out the power
17
How much power is for the message?
18
(No Transcript)
19
Single Sideband (SSB) modulation A good example
of signal manipulation

• Method one of generation of SSB signals Sideband
  filtering, easy to understand, but difficult to
  implement. Why?

20

• Method 2 Phase-shift modulation
