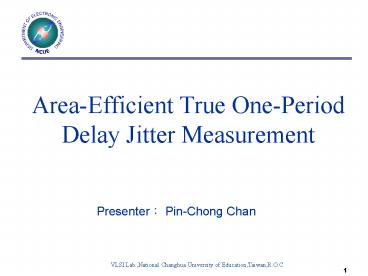

AreaEfficient True OnePeriod Delay Jitter Measurement

1
Area-Efficient True One-Period Delay Jitter
Measurement

• Presenter Pin-Chong Chan

2
Outline

• Introduction
• Previous Work
• Proposed Concept And Scheme
• Experimental Results
• Conclusions

3
Jitter
waveform timing variation
4
Analysis on the One Period Delay
One-period sampler. (a) Circuit diagram.
(b)Timing diagram.
5
Analysis on the One-Period Delay
One-period delay circuit.
Proposed self-sampled VDL structure
6
Analysis on the One Period Delay
One period is truly delayed for every period.
7
Proposed Structure
Proposed cycle-to-cycle jitter measurement
structure.
8
Area-Effective True One Period Delay
Proposed TOP circuit.
9
Basic Concept of CSMD
10
Verifying Simulation of the TOP Circuit
11
Comparison of SMD CSMD
21
41
33
63
45
73
12
Vernier Delayline
13
Measurement (I)
1?T
1?T
1?T
0
0
0
00011...
1
1
1
14
Measurement (II)
1
1?T
1
0
1
0
00011
1?T
1?T
1
15
Multiplexing For Multi-Purpose Measurement
Layout of a Double Period Delayline.
16
Experimental Results
Chip Implementation of a TOPJ.
17
Experimental Results
measured result of the TOP circuit
18
Experimental Results
Comparisons
19
Conclusions and Future Work

• In this paper we develop a novel digital and
  area-efficient true one period delay jitter
  measurement.
• For a delayline-based TOP with 300 stages, more
  than 75 of area overhead can be reduced.
• From simulations and physical experiments, our
  design can be performed at an acceptable speed.
• The same concept with more than two rings for
  further reduction in area will be the future work.

20
