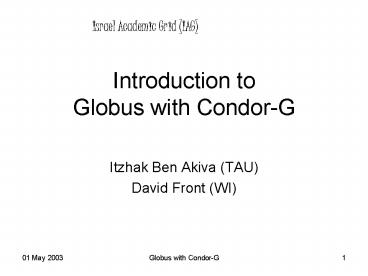

Introduction to Globus with Condor-G

1
Introduction to Globus with Condor-G
Israel Academic Grid (IAG)

• Itzhak Ben Akiva (TAU)
• David Front (WI)

2
Agenda

• Grid security and certificates
• Globus
• Condor-G
• Condor-G submission examples
• References

3
Grid Security Infrastructure (GSI)

• GSI is a set of tools, libraries and protocols
  used in Globus to allow users and applications to
  securely access resources.
• Based on a public key infrastructure, with
  certificate authorities and X509 certificates

Proxies and delegation for secure single Sign-on
Proxies and Delegation
SSL/ TLS
PKI (CAs and Certificates)
SSL for Authentication And message protection
PKI for credentials
4
Public Key Infrastructure (PKI)

• PKI allows you to know that a given public key
  belongs to a given user
• PKI builds off of asymmetric encryption
• Each entity has two keys public and private
• Data encrypted with one key can only be decrypted
  with other.
• The private key is known only to the entity
• The public key is given to the world encapsulated
  in a X.509 certificate

5
Certificates

• Certificates link between public key identity
  of a
• Person, organization, or device (subject)
• Associated with use of private key
• Used by a relying party
• Certificate Authority (CA) are responsible for
  establishing identity
• CA generates key pair, and digitally signs the
  public key making it a Certificate

6
Certificates what CA to use?

• The following possibilities go from the less
  secure to the most secure
• Anyone can become a certificate authority
• http//www.onlamp.com/pub/a/onlamp/2003/02/06/linu
  xhacks.html
• Free certificate authorities
• http//www.thawte.com/
• http//www.verisign.com/ ...
• Globus CAhttp//www-fp.globus.org/gt2.4/admin/gu
  ide-verify.htmlcert coerces some security
  limitations such as
• Domain of host to get a certificate should be the
  same as requestors email domain
• EDG CA
• http//igc.services.cnrs.fr/Datagrid-fr/english/i
  ndex.htmlEDG does not honor Globus
  certificates.EDG Grants certificates only to
  people that are known personally by an authorized
  third person.
• For each non-Globus CA, each site should
  configure the CA as being a trusted one.
• Globus is trusted by default and EDG has RPMs for
  adding it as a trusted CA.
• Recommendation until Machba supplies
  certificates, use Globus CA.

7
Globus with Condor-G. A resource broker to be
added later
8
Globus

• Gurus
• Ian Foster
• Carl Kesselman
• Globus Project
• www.globus.org
• Globus is a bag of tools
• Grid SW projects use Globus

9
What is Globus?

• A research and development project that enables
  the application of Grid concepts to scientific
  and engineering computing.
• Globus Toolkit allows build Grids, develop Grid
  applications
• Globus Project research targets technical
  challenges and Globus Toolkit supplies a set of
  services and software libraries to support Grids
  and Grid applications
• (GRAM) resource management
• (GSI) security
• (MDS) information infrastructure
• (GASS) data management
• (HBM) fault detection
• (Nexus and globus_io) portability communication

10
The Globus Toolkit contents

• A bag of services components to develop grid
  applications programming tools
• Component have a C application programmer
  interface (API)
• Some Components have Java classes and/or command
  line tools
• Prototypes of
• higher components (resource brokers,
  co-allocators)
• and services.
• Others use the Globus Toolkit to develop
• higher-level services,
• application frameworks,
• and scientific/engineering applications
• Example
• Condor-G uses Globus for its high-throughput
  computing framework

11
Globus Toolkit GRAM GSI

• Globus Resource Allocation Manager (GRAM)
• Resource allocation
• Process creation
• Monitoring
• Management
• Maps requests
• expressed in a Resource Specification Language
  (RSL)
• into commands
• to local schedulers and computers.
• Grid Security Infrastructure (GSI)
• A single-sign-on, run-anywhere authentication
  service,
• local control over access rights
• mapping from global to local user identities.
• Smartcard support increases credential security.

12
Globus Toolkit MDS GASS

• Monitoring and Discovery Service (MDS)
• Extensible Grid information service
• Combines data discovery mechanisms with the
  Lightweight Directory Access Protocol (LDAP).
• Uniform framework for providing and accessing
  system configuration and status information, such
  as
• Compute server configuration
• Network status,
• Locations of replicated datasets
• Global Access to Secondary Storage (GASS)
• Implements a variety of automatic and
  programmer-managed data movement and data access
  strategies
• Enables remote programs to read and write local
  data.

13
Globus Toolkit Nexus, globus_io, HBM, GPT

• Nexus and globus_io
• communication services for heterogeneous
  environments
• multimethod communication
• multithreading
• single-sided operations
• The Heartbeat Monitor (HBM)
• Allows system administrators or ordinary users to
• detect failure of system components
• detect failure of application processes
• Globus Packaging Tool (GPT)
• VDTs Packman installs Globus and
  Condor-G.Hence, is it more appropriate for
  Condor-G users.

14
Layered Grid Architecture(By Analogy to Internet
Architecture)
15
The Globus Toolkit in One Slide

• Grid protocols (GSI, GRAM, ) enable resource
  sharing within virtual orgs toolkit provides
  reference implementation
• ( Globus Toolkit services)

Protocols (and APIs) are central to Globus
toolkit
16
Globus Toolkit missing, weak, plans 1

• (GRAM) resource management
• Condor-G adds reliable job submission
• (EDG) Resource broker choose Globus resource to
  submit job
• Globus plans support end-to-end performance
  management and fault tolerance via network
  scheduling, advance reservations, and
  policy-based authorization.
• (GSI) security
• Using X.509 certificates has various limitations.
  For example
• If a user does not use a pass phrase, anyone
  that puts a hand on her certificate can use it.
• (MDS) information infrastructure
• LDAP too weak for frequently changing
  information (EDG uses RDBM instead of LDAP)

17
Globus Toolkit missing, weak, plans 2

• (GASS) data management
• Globus current replica management capabilities
  are limited
• Globus plans provide high-performance access to
  large amounts of data (terabytes or petabytes).
• (HBM) fault detection
• (Nexus and globus_io) portability communication
• Others
• Weak accounting
• The firewall problem In order to submit a
  Globus job, some Internet ports should be opened.
  This is a security problem.
• Weak fabric tools
• Installation/configuration
• VDT adds configurable installation via Packman
• EDG adds Client-server installation updating
  via LCFG
• Weak monitoring tools
• Restricted support for Windows.

18
Globus support for Windows

• Port of the Globus Toolkit to the Windows XP/2000
  platform is under development/test.
• Using Grid resources from Windows systems or turn
  Windows systems into Grid resources
• The Java CoG Kit (http//www.globus.org/cog/)
  provides access to Grid services via the Java
  programming language, available on Windows.
• A Java-based GRAM service is currently being
  developed.
• The Condor software from the Condor Project at
  the University of Wisconsin (http//www.cs.wisc.ed
  u/condor/) provides job management services that
  allow you to submit jobs to a local service that
  then submits your jobs to remote resources for
  execution. Condor can use Grid resources to
  execute these jobs. Condor is available for
  Windows.

19
Globus toolkit (re)structure
Service naming
Soft state management
Reliable invocation
GRAM
MDS
GridFTP
MDS
???
Notification
GSI
GSI
GSI
Other Service or Application
Compute Resource
Data Resource
Lots of good mechanisms, but (with the exception
of GSI) not that easily incorporated into other
systems
20
Service Oriented Architecture (SOA)

• New buzzwords
• Services (in addition to protocols and APIs)
• Open Grid Services Architecture (OGSA)
• Web services
• Soap
• XML

Service Registry
Service Requestor
Service Provider
OGSA may become standard
21
The Grid Service Interfaces/Behaviors Service
Data
Service data element
Service data element
Service data element
Binding properties - Reliable invocation -
Authentication
Implementation
Hosting environment/runtime (C, J2EE, .NET, )
22
Condor-G

• Guru
• Miron Livny
• Condor Project
• http//www.cs.wisc.edu/condor
• Condor-G manual
• http//www.cs.wisc.edu/condor/manual/v6.4/5_2Condo
  r_G.html
• Condor is a scheduler, similar to PBS, LSF and
  others
• Condor-G is (the submission) part of Condor.
• It adds to Globus Reliable job submission

23
Condor-G from Globus eyes

• Condor-G adds to Globus reliable job submission.
  It lets you
• Submit jobs into a queue
• have a log detailing the life cycle of your jobs
• manage your input and output files
• along with everything else you expect from a job
  queuing system.
• Condor-G does more than Globus toolkit's
  globusrun command
• It allows you to submit many jobs at once
• and then to monitor those jobs with a convenient
  interface
• receive notification when jobs complete or fail
• maintain your Globus credentials which may expire
  while a job runs
• Condor-G is a fault-tolerant systemIf your
  machine crashes, you can still perform all of
  these functions when your machine returns to
  life.

24
Condor-G from Condor eyes

• Condor-G is a Globus-enabled version of the
  Condor scheduler.It uses Globus to handle
  inter-organizational problems like
• Security
• Resource management for supercomputers,
• Executable staging.
• Hence The same Condor tools that access local
  resources are now able to use the Globus
  protocols to access resources at multiple sites.
• Condor-G manages both a queue of jobs and the
  resources from one or more sites where those jobs
  can execute. It communicates with these
  resources and transfers files to and from these
  resources using Globus mechanisms, such as
• GSI
• GRAM protocol for job submission,
• and a local GASS server for file transfers.
• The mutual look
• Condor can be used to submit jobs to systems
  managed by Globus.
• Globus tools can be used to submit jobs to
  systems managed by Condor.

25
how Condor-G interacts with Globus protocols

Figure 5.1 Remote Execution by Condor-G on
Globus managed resources
26
Submitting a job to Condor-G example 1

• Run your compiled program on a different Globus
  resource
• Make sure your Condor server service is running
  on the Condor server.
• (Not explained here)
• Make sure you have your Grid credentials, create
  a proxy grid-proxy-init
• To submit a job
• condor_ submit lt submit-description-file-namegt
• The following sample runs a job on the Origin2000
  at NCSA
• executable test
• globusscheduler modi4.ncsa.uiuc.edu/jobmanager
• universe globus
• output test.out
• log test.log queue
• The executable for this example is transferred
  from the local machine to the remote machine.
• By default, Condor transfers the executable, as
  well as any files specified by the input command.

• This executable must be compiled for the correct
  intended platform.

27
Submitting a job to Condor-G example 1 cont.

• The globusscheduler command is dependent on the
  scheduling software available on remote resource.
  This required command will change based on the
  Grid resource intended for execution of the job.
• All Condor-G jobs are submitted to the globus
  universe. Henceuniverse globus is always
  required in the submit description file.
• IONo input file is specified for this example
  job. Any output (file specified by the output)
  or error (file specified by the error) is
  transferred from the remote machine to the local
  machine as it is produced. This implies that
  these files may be incomplete in the case where
  the executable does not finish running on the
  remote resource. The job log file is maintained
  on the local machine.
• To submit this job to Condor-G for execution on
  the remote machine, use condor_submit
  test.submit where test.submit is the name of the
  submit description file.

28
Submitting a job to Condor-G example 1 cont.

• Example output from condor_ q for this submission
  looks like
• condor_q
• -- Submitter wireless48.cs.wisc.edu
  lt128.105.48.14833012gt wireless48.cs.wi
• ID OWNER SUBMITTED RUN_TIME ST PRI SIZE CMD
• 7.0 epaulson 3/26 1408 0000000 I 0 0.0 test

• 1 jobs 1 idle, 0 running, 0 held
• After a short time, Globus accepts the job.
• Again running condor_ q will now result in
• condor_q
• -- Submitter wireless48.cs.wisc.edu
  lt128.105.48.14833012gt wireless48.cs.wi
• ID OWNER SUBMITTED RUN_TIME ST PRI SIZE CMD
• 7.0 epaulson 3/26 1408 0000115 R 0 0.0
  test
• 1 jobs 0 idle, 1 running, 0 held
• Then, very shortly after that, the queue will be
  empty again, because the job has finished

29
Submitting a job to Condor-G example 2

• Run the (prestaged) Unix ls program on a
  different Globus resource
• executable /bin/ls
• Transfer_Executable false
• globusscheduler vulture.cs.wisc.edu/jobmanager
• universe globus
• output ls-test.out
• log ls-test.log queue
• The executable is pre-staged. Being on the remote
  machine, there is no need to transfer it before
  execution.
• The required globusscheduler and universe
  commands are present.
• The command Transfer_Executable FALSE
  identifies the executable as being pre-staged.
• In this case, the executable command gives the
  path to the executable on the remote machine.

30
Submitting a job to Condor-G example 3

• Submit a Perl script to be run as a Condor job.
• The Perl script both lists and sets environment
  variables for a job.
• Save the following Perl script with the name
  env-test.pl, to be used as a Condor job
  executable
• !/usr/bin/env perl
• foreach key (sort keys(ENV))
• print "key ENVkey\n"
• exit 0
• Run the Unix command chmod 755 env-test.pl to
  make the Perl script executable.
• Create the following submit description file
  executable env-test.pl
• globusscheduler biron.cs.wisc.edu/jobmanager
• universe globus
• environment foobar
• zotqux
• output env-test.out
• log env-test.log queue

31
Submitting a job to Condor-G example 3 cont.

• When the job has completed, the output file
  env-test.out should contain something like this
• GLOBUS_GRAM_JOB_CONTACT https//biron.cs.wisc.ed
  u36213/30905/1020633947/
• GLOBUS_GRAM_MYJOB_CONTACT URLx-nexus//biron.cs.
  wisc.edu36214
• GLOBUS_LOCATION /usr/local/globus
• GLOBUS_REMOTE_IO_URL /home/epaulson/.globus/.gas
  s_cache/globus_gass_cache_1020633948
• HOME /home/epaulson
• LANG en_US
• LOGNAME epaulson
• X509_USER_PROXY /home/epaulson/.globus/.gass_cac
  he/globus_gass_cache_1020633951
• foo bar
• zot qux

32
Submitting a job to Condor-G example 3 cont.

• Of particular interest is GLOBUS_REMOTE_IO_URL
  environment variable
• Condor-G automatically starts up a GASS remote
  I/O server on the submitting machine.
• Because of the potential for either side of the
  connection to fail, the URL for the server
  cannot be passed directly to the job.
• Instead, it is put into a file, and the
  GLOBUS_REMOTE_IO_URL environment variable points
  to this file.
• Remote jobs can read this file and use the URL it
  contains to access the remote GASS server running
  inside Condor-G.
• If the location of the GASS server changes (for
  example, if Condor-G restarts), Condor-G will
  contact the Globus gatekeeper and update this
  file on the machine where the job is running.
• It is therefore important that all accesses to
  the remote GASS server check this file for the
  latest location.

33
Submitting a job to Condor-G last example

• A Perl script that uses the GASS server in
  Condor-G to copy input files to the execute
  machine. (the remote job counts the number of
  lines in a file.)
• !/usr/bin/env perl use FileHandle
• use Cwd
• STDOUT-gtautoflush()
• gassUrl cat ENVGLOBUS_REMOTE_IO_URL
• chomp gassUrl
• ENVLD_LIBRARY_PATH ENVGLOBUS_LOCATION.
  "/lib"
• urlCopy ENVGLOBUS_LOCATION."/bin/globus-url-
  copy"
• globus-url-copy needs a full pathname
• pwd getcwd()
• print "urlCopy gassUrl/etc/hosts
  file//pwd/temporary.hosts\n\n"
• urlCopy gassUrl/etc/hosts file//pwd/temporary
  .hosts
• open(file, "temporary.hosts")
• while(ltfilegt) print _
• exit 0

34
Submitting a job to Condor-G last example Cont.

• The submit file
• executable gass-example.pl
• globusscheduler biron.cs.wisc.edu/jobmanager
• universe globus
• output gass.out
• log gass.log queue
• There are two optional submit description file
  commands of note x509userproxy and globusrsl.
• 1) The x509userproxy command specifies the path
  to an X.509 proxy, as
• x509userproxy /path/to/proxy
• If this optional command is not present in the
  submit description file,then Condor-G checks the
  value of the environment variable X509_USER_PROXY
  for the location of the proxy.
• If this environment variable is not present, then
  Condor-G looks for the proxy in the file
  /tmp/x509up_u0000, where the trailing zeros in
  this file name are replaced with the Unix user
  id.

35
Submitting a job to Condor-G last example Cont.

• 2)The globusrsl command is used to add
  additional attribute settings to a job's RSL
  string, as
• globusrsl (namevalue)(namevalue)
• An example of this command in a submit
  description file
• globusrsl (projectTest_Project)
• This example's attribute name for the additional
  RSL is project, and the value assigned is
  Test_Project.

36
Limitations of Condor-G

• No checkpoints.
• No matchmaking.
• File transfer is limited. There are no file
  transfer mechanisms for files other than the
  executable, stdin, stdout, and stderr.
• No job exit codes. Job exit codes are not
  available.
• Limited platform availability. Condor-G is only
  available on Linux, Solaris, Digital UNIX, and
  IRIX. HP-UX support will hopefully be available
  later.

37
References

• Globus Project www.globus.org
• Overviews of Grid computing
• Anatomy of the grid
• http//www-fp.globus.org/research/papers.htmlan
  atomy
• Physiology of the gridhttp//www-fp.globus.org/r
  esearch/papers.htmlOGSA
• Older, extensive
• The Grid Blueprint for a New Computing
  Infrastructure, I. Foster and C. Kesselman
  (Eds), Morgan Kaufmann, 1999.
• Globus FAQ http//www-fp.globus.org/about/faq/gene
  ral.html
• Globus installation http//www-fp.globus.org/gt2/a
  dmin/guide-verify.html
• Condor-G manual http//www.cs.wisc.edu/condor/man
  ual/v6.4/5_2Condor_G.html
• A topical school on Grid computing will be held
  in Vico Equense, Italy during the last two weeks
  of July, 2003.For details, send an email to
  grid-chool_at_ggf.org.
• Global Grid Forum www.gridforum.org
