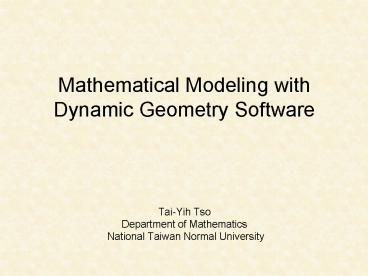

Title: Mathematical Modeling with Dynamic Geometry Software


1
Mathematical Modeling with Dynamic Geometry
Software
  • Tai-Yih Tso
  • Department of Mathematics
  • National Taiwan Normal University

2
Research Interests
  • My major research field is mathematics education,
    especially in how to integrate technology into
    mathematics learning and teachers education.
  • Earlier works
  • Dynamics windows for ellipse instruction.
  • Cognitive characteristic of senior high school
    students in constructing multiple representations
    of ellipse.
  • The design of junior high school geometry based
    on van Hiele model.
  • The study of interrelationship between spatial
    abilities and van Hiele levels of thinking in
    geometry of eigth-grade students.
  • The study of junior high school students
    symmetry concept image.
  • The critical phase curve of Van der pol equation.
  • The derivation of two parallel zero-finding
    algorithm of polynomials.

3
Current research topics of mine
  • One of my current research topics is studying
    mathematical modeling in mathematics education.
  • I am interested in investigating the theory and
    practice of teaching and learning mathematical
    modeling, particularly by using dynamic geometry
    software in the process of mathematical modeling.

4
Contents
  • I. Introduction
  • II. Theoretical Framework
  • III. A framework of mathematical modeling
  • IV. Case studies
  • V. Concluding remarks

5
Introduction
  • In this presentation, I will talk about my
    experience of integrating computer into a class
    for potential teachers. The goal of this course
    is to provide an opportunity for potential
    teachers to explore geometry by using the dynamic
    geometry software, such as Carbri, The Geometers
    Sketchpad. Moreover, they are expected to use
    this technical tool and their geometry knowledge
    to teach geometry in middle schools in the
    future. Usually, I use mathematics modeling as my
    teaching strategy in class.

6
Why students need to learn mathematical modeling
  • Why students ought to learn mathematical modeling
    is that it provides a means for understanding the
    world around us, for coping with everyday
    problems, for developing mathematical knowledge,
    and for preparing for future professions.
  • Today mathematical model and modeling have
    invaded a great variety of disciplines.
  • Mathematical modeling has been substantially
    supported and accelerated by the availability of
    powerful electronic tools, such as computers with
    their enormous communication capabilities.
    (Werner Blum ET AL. 2002)

7
Structural Aspect of Mathematical Modeling
  • A model is a structure R(S,P,M,T). In this
    relation structure, M is a model made by a
    subject S from a real world prototype T for the
    particular purpose of P (Leo Apostel, 1960) .
  • Thus the outcome model M of a certain T varies by
    two factors which are the subject S and purpose
    P. In other words, the same prototype T would
    lead to different models M due to different
    purposes and subjects.

8
Structural Aspect of Mathematical Modeling
  • A model as subjects taking the object as model of
    the object during the time and in view of the aim
    (H. Stachowiak,1973) .
  • He mentioned that in addition to subject and
    purpose, there is still another factor affecting
    the outcome model, which is time.
  • He pointed out three important properties of a
    model the mapping property, the shortening
    property, and the pragmatic property.

9
Conceptual Aspect of Mathematical Modeling
  • Models are conceptual systems (consisting of
    elements, relations, operations, and rules
    governing interactions) that are expressed using
    external notation system, and that are used to
    construct, describe, or explain the behaviors of
    other systems perhaps so that the other system
    can be manipulated or predicted intelligently.
  • A mathematical model focuses on structural
    characteristics (rather than, for example,
    physical or musical characteristics) of the
    relevant system. (Richard Lesh Helen M. Doerr,
    2000)

10
Mathematical Modeling
  • Mathematical models are mathematical structure
    describing a real world phenomenon that would
    differ according to different subjects, purpose
    and time being.
  • Mathematical modeling is a process that attempts
    to match observation with symbolic statement by
    creating a mathematical representation of some
    phenomenon in the real world in order to gain a
    better understanding of that phenomenon.

11
Theoretical Framework
  • ????????

12
(No Transcript)
13
(No Transcript)
14
Theoretical framework
15
environments supporting
16
Reflection-on-action
  • A action of metacognition involves stepping back
    and representing a difficulty, searching for
    solution, and conjecturing action in the
    construction or reconstruction knowledge
  • (Noddings,1984).
  • Reflection includes a state of doubt and an act
    of resolution.
  • (Deway, 1933)
  • The complex schema of knowledge is active in the
    long-term memory during performance of
    reflection-on-action
  • Reflective abstraction is a process in which
    individual try to construct abstract structures
    in long-term memory, operations by reflecting on
    their activities, and the arguments used in
    social interaction.
    (piaget, 1976)

17
A framework of mathematical modeling
Mathematical modeling as learning activities for
reflection-on-action
  • Mathematical modeling is a process of using
    mathematical language to describe, communicate,
    express, and think about the real world
  • Learning mathematics is like learning language.
    It is not only to learn vocabulary (symbol,
    definition), grammar(property, rule, procedure)
    but more important to use it (mathematical
    modeling).
  • Mathematical modeling has usually been applied in
    the research field, students have seldom
    experience in the process of building a
    mathematical model.
  • A major benefit in learning how to do
    mathematical modeling for students is to
    encourage them developing a particular way of
    reflecting and acting on mathematics through
    making connections between mathematics and real
    world.
  • Mathematical modeling is incorporated into the
    learning activities for two reasons for
    examplification and application (Nesher, 1989).

18
Mathematical Modeling in multiple representation
window
19
An example for learning mathematical modeling
A Real World Problem There are three fire
stations and a fire center(119) in a city. A fire
is reported to the fire center at a certain
address, which of the three fire stations should
send firefighters to the scene? How do we know
which is closest?
20
Two Approaches for the Fire Problem
  • Suppose we had a city map on which the sites of
    the fire stations are indicated with dots.
  • We could use a ruler measuring the distance from
    the fire to each station on the map.
  • We could divide the map to three regions, each
    region containing one fire station and consisting
    of all the points closer to that station than to
    any other.

21
Mathematical model
  • (Voronoi Diagrams)
  • A,B,C are three distinct points on a plane.
  • How do we divide the plane into three regions,
    each region containing a point and consisting of
    all the points closer to that point than to any
    other points?
  • 2. (Inverse problem)

22
A case study on modeling a heart-shaped figure at
the bottom of a cup
  • Due to the fact that applying computer to
    mathematical modeling is important for students
    and they seldom have the chance to experience it.
  • It is necessary to provide them with a
    computational environment. In order to design
    this environment, we need to understand the
    mathematical modeling process of students, and
    thus a case study is done on potential teachers,
    for teachers need to have the experience before
    they can teach students.
  • The major concerns of this case study are the
    process of potential teachers doing mathematical
    modeling, and the role of the dynamic geometric
    software in the process.

23
Experimental Design
  • The subjects of this experiment are 24 potential
    teachers divided into five groups.
  • The study of this paper would be focusing on the
    mathematical modeling process of one group came
    up with a more complete result.
  • Only a more complete mathematical modeling
    process, it can help the researcher draw out the
    features of this process .

24
Experimental Design
  • The setting of this experiment was in the
    computer room where each student had his own
    computer to work on. The students gathered into
    groups and were encouraged to discuss and solve
    the task. The classroom was videotaped and the
    discussion of each group was recorded separately.

25
A case study on modeling a heart-shaped figure at
the bottom of a cup
  • As an example, I shall illustrate students
    modeling process with the Geometers Sketchpad
    (GSP).
  • It starts generally from specifying the real
    world phenomena or problems in the process of
    mathematical modeling.

26
Specifying real-world phenomena
  • For the experiment that day I brought a
    cylindrical mug and a flash light to class and
    let students look at the bottom of mug with the
    flash light as a point source of light overhead.
  • By experimenting and observing this phenomenon,
    they wanted to understand two modeling problems
    (1)Why did the bottom of the cup display a heart
    shape? (2)What is the equation of the curve of
    the heart shape in mathematics?

27
Making Assumptions and Simplifications
  • The students analyzed the bright pattern within
    group discussion and found that the bottom of the
    mug is illuminated by rays directly from the
    flash light and by rays reflected one or more
    times.
  • They proposed a hypothesis that the hart-shaped
    pattern is mainly contributed by the reflections
    of rays at the bottom.
  • They simplified the cylindrical mug, a three
    dimension model, to the circular rim, a plane
    model.

28
Examining assumptions with GSP
  • After making the assumption, a student said that
    we could use GSP to examine how the reflections
    of rays work.

They found that the computer graph is similar to
the heart-shaped figure at the bottom of the mug
and could explain the real world phenomena.
29
Exploring the Mathematical Model
  • Students used computer simulation to develop a
    useful representation system for mathematical
    model (creating a coordinate system and choosing
    suitable parameters to describe the curve).

30
Modifying the Mathematical Model
  • Students constructed a conceptual system, which
    is expressed by mathematical symbols, formulas,
    and rules in order to interpret the behaviors of
    the real world.

31
Experiment Observations and Findings
  • From the above observations, I would like to
    conclude them into the following three findings.
  • Potential teachers explore in between three
    worlds, which are the real world, the
    mathematical world, and the computer world.
  • The transition between the three worlds is based
    on reflective acting.
  • The dynamic geometric software not only
    simulates the mathematical model, but also
    connects two aspects of mathematics, which are
    the experimental mathematics and the reasoning
    mathematics.

32
Experiment Findings
  • Real world
  • Observing physical phenomenon
  • and forming modeling task
  • 2.Making assumptions and
  • simplification to form real-world model.
  • 11.Examining the mathematical model.

Mathematical world 6. Creating
coordinate system and setting representation. 7.
Choosing parameters and studying the relations
among them. 8. Forming the equation
(mathematical model) 10.Modifying the
mathematical model. 13. investigating the
mathematics history abort the mathematical
model.
Reflecting and Acting
Computer world 3.Simulating the real-world
model and forming the computing
model. 4.Examining the assumptions and
simplification 5.Developing conceptual tool to
think mathematically. 9.Simulating the
mathematical model. 12.Simulating the modified
mathematical model.
33
Concluding remarks
making meaningful situations into mathematical
descriptions
Mathematical World
Real World
Using symbolically described situation to
interpret the real world
Experiment Geometry
Bridge
Reasoning Geometry
observing, manipulating
conjecturing, justifying
GSP Simulation
Computing World
34
BELIEVES Other Knowledge Fundamental assumptions
METACOGNITION Monitoring, evaluation, planning
and controlling.
PROBLEM DOMAIN Domain-specific reasoning
MATHEMATICAL DOMAIN Domain-specific reasoning
COMPUTATION DOMAIN Simulation reasoning
From the cognitive psychology point of view, we
can use this figure to explain.
35
Research issues of mathematical modeling with DGS
in mathematics education
  • What authentic modeling materials are available?
  • How does the authentic materials affect students
    mathematical learning and modeling?
  • What are the process components of modeling?
  • What is the meaning and role of abstraction,
    proof, proving, formalization, and generalization
    in the process of modeling?
  • What are the additional roles and functions of
    computer in the process of modeling?
  • What training strategies can be used to assess a
    future teachers ability to teach mathematical
    modeling?

Mathematical World
Real World
Computing World
36

Thank you Comments are welcomed
37
Two Questions about GSP
  • What is the difference between the circle drawing
    tool in GSP and the mechanical compass?
  • Do we have any tools for drawing a straight line?
    In other words, how can I guarantee that the line
    segment I get from a ruler is a definite straight
    line?

38
Human intellectual activities
  • According to Vygostkian socio-cultural
    perspective, the formation of human intellectual
    activities requires the use of technical and
    symbolic tools as mediators of acting and
    thinking.
  • In order for the students to solve problems
    systematically, I believe to introduce the
    culture and history of human development in
    mathematics is helpful for increasing their
    interest in both geometry and history in
    mathematics.

39
What is the difference between the circle drawing
tool in GSP and the mechanical compass? Study
history of mathematics before Build up a
mathematical model
  • The students studied Euclids Elements in order
    to investigate the Euclidean construction tools.
  • They noted that the first three postulates of
    Euclids Elements is to state the primitive
    construction tools. Let the following be
    postulated
  • to draw a straight line from any point to any
    point.
  • to produce a finite straight line continuously in
    a straight line.
  • to describe a circle with any center and
    distance.
  • The first two postulates state what we can do
    with a ruler(Euclidean straightedge) and
  • the third postulate tell us the circle drawing
    instrument(Euclidean compass).
  • The Euclidean straightedge is a tool to draw the
    straight line of passing through given two
    distinct points and the Euclidean compass is a
    tool to draw a circle of given a center and
    passing through a given point. Both of these two
    primitive construction tools can not be marked.

40
The Euclidean compass and the modern mechanical
compass
  • The students noted that the construction tools of
    the Geometers Sketchpad are just the Euclidean
    construction tools after studying the postulates
    of Elements.
  • They also found that the Euclidean compass
    differs from the modern mechanical compass which
    can draw a circle of given center and radius.
  • The Euclidean compass (computer compass) is often
    referred as a collapsing compass that if either
    leg is lifted from the paper the tool immediately
    collapses.
  • The students asked naturally a problem if the
    Euclidean compass can serve as the modern
    mechanical compass.

41
Build up a mathematical model
  • This is not easy for our students to obtain the
    idea of the construction procedure(mathematical
    model ).
  • They continuously read the Elements and found
    that the proposition 2 of Book I.
  • To place at a given point a straight line equal
    to a given straight line is useful for the
    model.
  • The construction of the proposition 2 shows that
    the Euclidean compass the Euclidean
    straightedge is equivalent to the modern compass.

42
students report
  • In our original knowledge, we believed that the
    history of mathematics and the drawing tool of
    mathematical software are unrelated.
  • Now we find that the history of mathematics can
    give us hints to overcome the restriction of
    computer technology.
  • We understand much more about the Euclids
    Elements.

43
Do we have any tools for drawing a straight line?
  • The second question is particularly practical.
  • James Watt (1736-1819) had a problem when he
    worked on improving the efficiency and power of
    steam engines.
  • His problem was how to turn the linear motion
    into the circular motion of a wheel and vice
    versa.

44
Study history of mathematics before making
computer simulation
  • The students read the book A Survey of Geometry
    by Howard Eves, and the paper How to Draw a
    Straight Line by Daina Taimina.
  • They noted that An outstanding geometrical
    problem of the last half of the nineteen century
    was to discover a linkage mechanism for drawing a
    straight line.

45
  • A solution was finally found in 1864 by a French
    army officer, A. Peaucellier (1832-1913), and an
    announcement of the invention was made by A.
    Mannheim (1831-1906), a brother officer of
    engineers and inventor of the so-called Mannheim
    slide rule, at a meeting of the Paris Philomathic
    Society in 1867.
  • But the announcement was little heeded until
    Lipkin, a young student of the celebrated Russian
    mathematician Chebyshev (1821-1894),
    independently reinvented the mechanism in 1871.
  • Lipkin received a substantial reward from the
    Russian Government.
  • Peaucelliers merit was finally recognized and he
    was awarded the great mechanical prize of the
    Institut de France.

46
students report
  • Form the History, we noted that a pure
    geometrical problem can be connected with a
    mechanical problem.
  • We also learnt what is the Peaucellier-Lipkin
    Linkage.

47
Conclusion Remarks
  • 1.Through the history of mathematics they can
    understand where the mathematic questions came
    from and in which direction they will develop.
  • 2.It gives students a complete concept and a
    picture as a whole of geometry.
  • 3.While tracing the paths of mathematics history,
    they can get ideas for solving their problems.
  • 4.It provides an environment for students to
    experience reflective thinking.

48
Research issues of mathematical modeling with DGS
in mathematics education
  • What authentic modeling materials are available?
  • How does the authentic materials affect students
    mathematical learning and modeling?
  • What are the process components of modeling?
  • What is the meaning and role of abstraction,
    proof, proving, formalization, and generalization
    in the process of modeling?
  • What are the additional roles and functions of
    computer in the process of modeling?
  • What training strategies can be used to assess a
    future teachers ability to teach mathematical
    modeling?

Mathematical World
Real World
Computing World
49

Thank you Comments are welcomed
50
  • The floor is open for suggestions and comments.
  • Thank you for your participation.

51
(No Transcript)
52
(No Transcript)
53
(No Transcript)
54
(No Transcript)
55
(No Transcript)
56
(No Transcript)
57
(No Transcript)
58
Research issues of mathematical modeling with DGS
in mathematics education
  • What authentic modeling materials are available?
  • How does the authentic materials affect students
    mathematical learning and modeling?
  • What are the process components of modeling?
  • What is the meaning and role of abstraction,
    proof, proving, formalization, and generalization
    in the process of modeling?
  • What are the additional roles and functions of
    computer in the process of modeling?
  • What training strategies can be used to assess a
    future teachers ability to teach mathematical
    modeling?

Mathematical World
Real World
Computing World
Write a Comment
User Comments (0)
About PowerShow.com
