Relationship of Cloud Water Budgets to Heating Profile Calculations

1

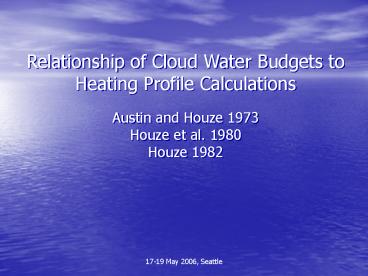

Relationship of Cloud Water Budgets to Heating
Profile Calculations Austin and Houze 1973 Houze
et al. 1980 Houze 1982
17-19 May 2006, Seattle
2
Austin and Houze 1973 Houze et al.
1980 PREMISE Measure rain amount as a function
of radar Echo Heights --gt Large-scale Mass
Transport Profile (aka LH)
3
Houze 1982 PREMISE Can also relate eddy
radiative heating profiles to water budget to
obtain latent eddy radiative heating
4
Tropical MCSs inject lots of hydrometeors into
upper troposphere
Idealized life cycle of tropical MCS as proposed
by Houze 1982
5
Contributions to Total Heating by Convective
Cloud System
6
These combine to give top-heavy heating profile
Houze 1982 idealized case
7
Think of the following schematic as a composite
of the water budget of an MCS over its whole life
cycle
Ac
As
After Houze et al. (1980)
8
Ac
Stratiform water budget equation
Rain not simply related to condensation
9
Water budget parameters could be measured
Cloud radar ? As Precip radar ? Rs Doppler
soundings ? As, Csu, CT
10
Ac
Convective region water budget equation
11
Ac
For each height category i
Sum over all cloud height categories i
with the constraint
(each height cat.)
12



?ZAC

Ac


?ZAS

?XAC
?XAC
Dimensions and hydrometeor content of anvils are
determined by the cloud dynamics and are related
to the radiative heating profiles
13
Summary

• Latent, eddy, and radiative heating are
  interrelated through the water budget of the
  precipitating cloud system.
• Profiles of latent heating estimated by spectral
  methods are not independent of eddy and radiative
  heating profiles.
• Water budget parameters can be used to establish
  the internal consistency of latent eddy and
  radiative heating profiles.

14
Thank you!
15
Extra Slides
16
In TWP-ICE we are subdividing the anvil into
mixed and ice anvils
17
Example from TWP-ICE
Precipitation Radar
Cloud Radar
18
TWP-ICE Precipitation Radar Rain Rate (20
stratiform)
Longer-term records of the water budget
parameters also are being derived. Figures here
are for duration of TWP-ICE.
This will also be done for a longer-term
climatology. We will use cloud precipitation
radars permanently located at Darwin.
TWP-ICE Cloud Radar Anvil Frequency
19
Could use empirically derived water budget
parameters b and es, to estimate the stratiform
regions anvil mass proportional to the SF rain
As (bRs)/es
For example
Looking at it the other way around Whatever
latent heating budget is derived from the TRMM
precip info must be internally consistent with
the radiative heating profiles
