Local Area Network LAN Switching

1

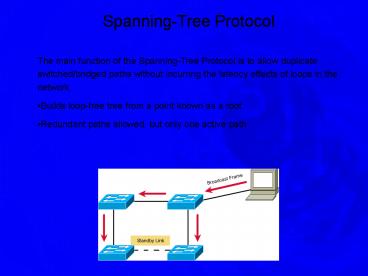

Spanning-Tree Protocol

• The main function of the Spanning-Tree Protocol
  is to allow duplicate switched/bridged paths
  without incurring the latency effects of loops in
  the network.
• Builds loop-free tree from a point known as a
  root
• Redundant paths allowed, but only one active path

2
Spanning Tree Algorithm (STA)

• Part of 802.1d standard
• Simple principle Build a loop-free tree from
  some identified point known as the root.
• Redundant paths allowed, but only one active
  path.

3
SPANNING TREE

• Developed by Digital Equipment Corporation
• IEEE revised standard released 802.1d
• Cisco Switches use IEEE 802.1d
• Continually probes network automatically
  reconfigures ports.
• New Standard IEEE 802.1w has recently been
  developed.

4
(No Transcript)
5
Introducing Spanning-Tree Protocol

• The main function of the Spanning Tree Protocol
  (STP) is to allow redundant switched/bridged
  paths without suffering the effects of loops in
  the network.

6

• The STA is used to calculate a loop-free path.
• Spanning-tree frames called bridge protocol data
  units (BPDUs) are sent and received by all
  switches in the network at regular intervals and
  are used to determine the spanning tree topology.
• A separate instance of STP runs within each
  configured VLAN.

7
(No Transcript)
8
Understanding STP States

• Blocking - No frames forwarded, BPDUs heard
• Listening - No frames forwarded, listening for
  frames
• Learning - No frames forwarded, learning
  addresses
• Forwarding - Frames forwarded, learning addresses

• Disabled - No frames forwarded, no BPDUs heard

9
Bridging without Spanning Tree
10
(No Transcript)
11
(No Transcript)
12
(No Transcript)
13
Even worseBroadcast Frames
14
(No Transcript)
15
(No Transcript)
16
(No Transcript)
17
(No Transcript)
18
(No Transcript)
19
Spanning Tree takes care of this
20
Spanning Tree Process

• Elect a Root Bridge on the LAN
• All switches send out Configuration Bridge
  Protocol Data Units (Configuration BPDUs)
• BPDUs are sent out all interfaces every two
  seconds (by default - can change)

21
bridge protocol data units are sent and received
by all switches in the network at regular
intervals and are used to determine the spanning
tree topology.
22
(No Transcript)
23
(No Transcript)
24
(No Transcript)
25
(No Transcript)
26
Path Cost
27
STP Timers
28
IEEE 802.1w (RSTP)

• Designed to speed recalcualtion process
• Converges faster than STP
• Provides rapid connectivity following switch
  failure
• Enhanced Software Image (EI) must be installed
  on your switch

29
RSTP STP Comparisions
