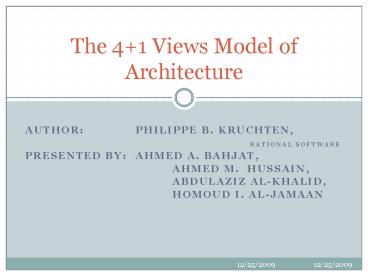

The 41 Views Model of Architecture
1
  • AUTHOR PHILIPPE B. KRUCHTEN,
  • RATIONAL SOFTWARE
  • PRESENTED BY AHMED A. BAHJAT,
  • AHMED M. HUSSAIN,
  • ABDULAZIZ AL-KHALID,
  • HOMOUD I. AL-JAMAAN

12/25/2009
2
Introduction
2
  • Using multiple views allows to address separately
    the concerns of the various stakeholders
    (end-users, developers, systems engineers,
    project managers, etc..)
  • Also an aid to handle functional and
    non-functional requirements.
  • Diagrams and articles (consist of boxes and
    arrows) attempt to show the core of the
    architecture of the system. But there are some
    questions
  • Are the boxes representing running programs?
    chunks of code? physical computers? logical
    grouping of functionality?
  • Are the arrows representing compilation
    dependencies? control flow? dataflow?
  • does an architecture need a single architectural
    style?
  • The architecture does not address the concerns of
    all its customers or stakeholders?

12/25/2009
3
An Architectural Model
3
  • Perry and Wolfe put software architecture in very
    nice formula, modified by Boehm
  • Software Architecture Elements, Forms,
    Rationale/Constraints
  • Software architecture is the result of assembling
    these architectural elements in some well-chosen
    forms to satisfy functionality, performance of
    the system, and non-functional requirements such
    as reliability, scalability, portability and
    reliability.
  • Software architecture deals with design,
    implementation of the high level structure of the
    software, abstraction, decomposition and
    composition, style and esthetics.
  • We use a model composed of five views
  • A- The Logical view the object model for the
    design(for object oriented methods).
  • B- The Process view for capturing concurrency
    and synchronization aspects of the design.
  • C- The Physical view for mapping the software
    onto the hardware and reflects its distributed
    aspects.
  • D- The Development view for describing the
    static organization of the software in its
    development environment.
  • E- Decision made or description of an
    architecture this illustrated by a few selected
    use cases or scenarios.

12/25/2009
4
The 41 view model
4
12/25/2009
5
The logical View
5
12/25/2009
6
The Logical Architecture (Object Oriented
Decomposition)
6
  • Primarily supports the functional requirements.
  • The system is decomposed into a set of key
    abstractions, taken from problem domain in the
    form of objects or object classes.
  • Principles of abstraction, encapsulation, and
    inheritance are used.
  • Class diagram shows a set of classes and their
    logical relationship, association, usage,
    composition, inheritance and so forth.
  • Class template emphasize the main class
    operations and identify key object
    characteristics
  • Class utilities define common mechanisms or
    services.
  • State transition diagrams or state charts are
    used to define the internal behavior of an
    object.
  • Applications that is very data-driven may use
    some other form of logical view, such as E-R
    diagrams.
  • Notation for Logical View
  • Rationale/Boach approach used for representing
    the logical architecture by means of class
    diagrams and class templates.
  • Take items that are architecturally significant .

12/25/2009
7
Style for Logical view
7
  • Object oriented style.
  • We try to keep a single, coherent object model
    across the whole system.

12/25/2009
8
Example 1
8
  • Line Controller
  • decode and inject all the signals on the line
    interface card, translating card-specific signals
    to and from a small, uniform set of events
    start, stop, digit, etc.
  • Terminal
  • maintain the state of a terminal,
  • and negotiate services on behalf of that line.
  • Conversation
  • set of terminals engaged in a conversation.

12/25/2009
9
Example 2
ICS 513 Software Design
10
The Process View
10
12/25/2009
ICS 513 Software Design
11
The Process Decomposition
  • It takes into account
  • Some non-functional requirements (performance,
    Availability).
  • Issues of (concurrency, distribution, systems
    integrity)
  • Description
  • It described at several levels of abstraction
  • highest level logical networks of processes
    distributed across a set of hardware resources
    connected by a LAN or a WAN.

ICS 513 Software Design
12
Process Task
  • Process is a grouping of tasks that form an
    executable unit (executable started, recovered,
    reconfigured, shutdown).
  • Task is a thread of control that can be
    scheduled individually on one process.
  • major tasks architectural elements that can be
    uniquely addressed.
  • minor tasks additional tasks used for
    implementation reasons (cyclical activities,
    buffering, time-outs, etc.).
  • software is partitioned into a set of independent
    tasks.

ICS 513 Software Design
13
Communication
  • Major tasks communicate via a set of well-defined
    inter-task.
  • communication mechanisms
  • synchronous and asynchronous message-based
    communication services
  • remote procedure calls
  • event broadcast
  • .
  • Minor tasks may communicate by rendezvous or
    shared memory.

ICS 513 Software Design
14
Notation
ICS 513 Software Design
15
Style for the process view
  • Garlan and Shaws taxonomy pipes and filters,
    or client/server, with variants of multiple
    client/single server and multiple
    clients/multiple servers.
  • For more complex systems, style similar to the
    process groups approach of the system as
    described by K. Birman with another notation and
    toolset.

ICS 513 Software Design
16
Process blueprint for the Telic PABX (partial)
ICS 513 Software Design
17
Process blueprint for the Telic PABX (partial)
  • Terminal process handle all terminals, and
    driven by messages in its input queues.
  • Controller Process is composed of three tasks,
    controller objects are executed on one of these 3
    tasks.
  • Low cycle rate task scans all inactive terminals
    (200 ms), puts any terminal becoming active in
    the scan list of the high cycle rate task.
  • High cycle rate task (10ms) detects any
    significant change of state, and passes them to
    the main controller task
  • Main controller task which interprets the changes
    and communicates them by message to the
    corresponding terminal.
  • message passing within the controller process is
    done via shared memory.

ICS 513 Software Design
18
Correspondence From logical to process view
19
Correspondence From logical to process view
  • classes characteristics
  • Autonomy
  • are the objects active, passive, protected?
  • Active object
  • invoke other objects operations or its own
    operations
  • has full control over the invocation of its own
    operations by other objects.
  • Passive object
  • never invokes any operations
  • has no control over the invocation of its own
    operations by other objects.
  • protected object
  • never invokes any operations
  • performs some arbitration on the invocation of
    its operations
  • Persistence
  • are the objects transient , permanent?
  • Subordination
  • is the existence of an object depending on
    another object?
  • Distribution
  • are the operations of an object accessible from
    several processes in the process architecture?

ICS 513 Software Design
20
Strategies
  • We use two strategies the set of processes that
    are needed.
  • Inside-out
  • Definition define agent tasks (a single thread
    of control , multiple active objects of a class)
  • Subordination objects whose life is subordinate
    to an active object executed on that same agent
  • Mutual exclusion several classes that need to
    be executed in mutual exclusion share a single
    agent.
  • Mini Processing Objects that require only small
    amount of processing share a single agent
  • Outside-in
  • External requests identify external requests to
    the system, define client processes to handle the
    request
  • data integrity use the data integrity and
    constraints of the problem to define the right
    set of servers
  • Distribution identify which objects must be
    distributed.

ICS 513 Software Design
21
About Agent Task
  • there is an agent task for an active class, with
    some variations
  • several agents for a given class to increase
    throughput.
  • several classes mapped onto a single agent
    because their operations are infrequently
    invoked.
  • its requires a few iterations to get an
    acceptable solution.

ICS 513 Software Design
22
Example Air-traffic Control System
23
Air-traffic Control System
  • The flight class is mapped onto a set of flight
    agents
  • there are many flights to process,
  • a high rate of external requests,
  • response time is critical,
  • the load must be spread across multiple CPUs.
  • The distribution aspects of the flight processing
    are delayed to a flight server, which is
    duplicated for availability reasons.
  • A flight profile or a clearance are always
    subordinate to a flight So they share the
    processes of the flight class.
  • Sectorization class, which established a
    partitioning of airspace over flights, can be
    handled only by a single agent because of its
    integrity constraints, but can share the server
    process with the flight .
  • Locations and airspace and other static
    information are protected objects, shared among
    several classes, rarely updated they are mapped
    on their own server, and distributed to other
    processes.

ICS 513 Software Design
24
The Development View
24
12/25/2009
25
Development view
  • This view is used to describe the static
    organization of the software in the development
    environment.
  • Development view audience programmers and
    software managers.

ICS 513 Software Design
26
Development view
  • Focuses on the actual module organization on the
    software development environment.
  • Development architecture is represented by module
    and subsystem diagrams, showing import and export
    relationships.
  • Software is packaged in small subsystems.
  • Subsystems are organized in a hierarchy of
    layers.
  • Development architecture can only be described
    when all the elements of the software have been
    identified.

ICS 513 Software Design
27
Development view
  • List of rules that govern the development
    architecture
  • Partitioning
  • Grouping
  • Visibility
  • Development architecture takes into account the
    internal requirements related to the ease of
    development, software management, reuse,
    constraints imposed by the programming language.

ICS 513 Software Design
28
Development view
  • Development view serves as the basis for
  • Requirements allocation
  • Team organization
  • Cost evaluation and planning
  • Monitoring the progress of the work
  • Reasoning about software reuse
  • Establishing a line of product

29
Notation
  • Booch notation
  • Rational rose can draw these diagrams.

ICS 513 Software Design
30
Development view style
  • Layered style should be adopted for the
    development view.
  • Each layer has a well-defined responsibility.
  • Design rule a subsystem can only depend on
    subsystems that are in the same layer or in
    layers below.
  • Why this design rule? To minimize the development
    of very complex network of dependencies between
    modules and allow simple release strategies layer
    by layer.

ICS 513 Software Design
31
Example of development architecture
  • The following figure represents the development
    organization of Air Traffic Control systems
    developed by Hughes Aircraft of Canada.

ICS 513 Software Design
32
From logical to development
  • Large classes are decomposed into multiple
    packages.
  • Closely related classes are grouped into
    subsystems.
  • When we define subsystems, we must consider
    additional constraints
  • Team organization
  • Expected code
  • Degree of reuse
  • Strict layering principles
  • Configuration management

ICS 513 Software Design
33
From logical to development
  • Logical and development views are very close, but
    address different concerns.
  • There is no one to one mapping of the class
    categories to the layers.

ICS 513 Software Design
34
The Physical View
34
12/25/2009
35
The Physical Archeticture
  • Mapping the software to the hardware
  • Takes into account primarily the non-functional
    requirements
  • We expect that several different physical
    configurations will be used some for development
    and testing, others for the deployment of the
    system for various sites or for different
    customers.
  • The mapping of the software to the nodes
    therefore needs to be highly flexible and have a
    minimal impact on the source code itself.

ICS 513 Software Design
36
Notations
ICS 513 Software Design
37
Example
ICS 513 Software Design
38
1 Scenarios
38
12/25/2009
39
Scenarios
  • This view is redundant with the other ones (hence
    the 1), but it serves two main purposes
  • as a driver to discover the architectural
    elements during the architecture design
  • as a validation and illustration role after this
    architecture design is complete,
  • An abstraction of the most iprtant requirements.
  • Audience All users of other views and
    Evaluators.
  • Addresses System consistency, validity
  • Method English, graphical notations, UML use
    cases.
  • Authors Advice and Experience.
  • Views are interconnected.
  • Start with Logical view (Req. Doc) and Move to
    Development or Process view and then finally go
    to Physical view.
  • Concurrency analysis methods (Inside Out and
    Outside In).

ICS 513 Software Design
40
Example
The notation is very similar to the logical view
for the components, but uses the connectors of
the Process view for interactions between objects.
ICS 513 Software Design
41
Remarks
  • Methodology used in the industry
  • Industry specific targeted to RT systems
    (aerospace, teleco.). Consider Desktop
    application development
  • Complete All other views are reducible to one of
    the 4 views
  • No tools to connect the views together. Views
    will suffer from inconsistencies. Problems will
    worsen as we start maintaining the Architecture

ICS 513 Software Design
42
Tailoring the Model
42
  • Not all software architecture need the full
    41 views. Views that are useless can be
    omitted from the architecture description, such
    as the physical view, if there is only one
    processor, and the process view if there is only
    process or program. For very small system, it is
    even possible that the logical view and the
    development view are so similar that they do not
    require separate descriptions. The scenarios are
    useful in all circumstances.

12/25/2009
43
ICS 513 Software Design
44
Documenting the Architecture
44
1
2
3
4
5
12/25/2009
45
Conclusion
45
  • Problem
  • Arch. documents overemphasize an aspect of
    development or do not address the concerns of all
    customers
  • Arch. documents contain complex diagrams
  • Solution
  • Different notation for the different aspects of
    the system 4 Views an architecture
    verification technique

12/25/2009
46
Logical View
  •
  • Audience End-user
  • Addresses Functional requirements
  • Method OMT notation (object and dynamic models)


ICS 513 Software Design
47
Process View
  • Audience Integrators
  • Addresses Non - functional requirements
    (concurrency,
  • performance, scalability)
  • Method Garlan and Shaw s Architecture styles
  • Uses multiple levels of abstractions
  • Major Tasks Arch. relevant tasks (Serial Server)
  • Minor Tasks Helper tasks. (Input / Output
    Threads)

ICS 513 Software Design
48
Development View
  • AKA. (Traditional Design Document)
  •  Audience Programmers and Software Mgrs.
  • Addresses file layout, production schedule
  • Method dependency graphs and Layered diagrams
  • It could be in the form of guidelines or
    extremely detailed

ICS 513 Software Design
49
Physical View
  • Audience System Engineers
  • Addresses Topology, Communication
  • Method English or a simple notation that is over
    the process view diagrams
  • Tightly connected to the process view.

ICS 513 Software Design
50
Q A
Write a Comment
User Comments (0)
About PowerShow.com
