Generation of CDFGs from Scheduled and Pipelined Assembly Code

1

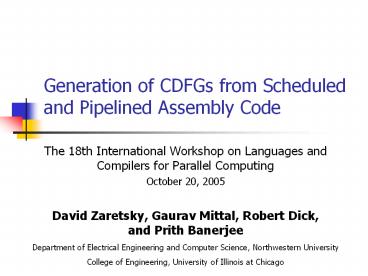

Generation of CDFGs from Scheduled and Pipelined
Assembly Code

• The 18th International Workshop on Languages and
  Compilers for Parallel Computing
• October 20, 2005
• David Zaretsky, Gaurav Mittal, Robert Dick, and
  Prith Banerjee
• Department of Electrical Engineering and Computer
  Science, Northwestern University
• College of Engineering, University of Illinois at
  Chicago

2
The Future of DSP Applications

• Recent advances in embedded communications and
  control systems are pushing the computational
  limits of DSP applications, driving the need for
  hardware/software co-design system.

3
Binary Translation

• Problems with high-level synthesis
• High-level application unavailable
• Hardware compiler unavailable
• Binary Translation
• Grammar
• Operation Latencies
• Software Pipelining
• Processor Architecture Limitations
• Functional Units
• Data Paths
• Physical Registers
• Memory Spilling
• Control and Data Flow Graphs
• Optimizations
• Scheduling
• Design decisions

4
FREEDOM Bridging the Gap

• FREEDOM compiler automates the task of hw/sw
  partitioning for software binaries.
• FREEDOM is an acronym for Fabrication of
  Reconfigurable Hardware Environments from DSP
  Optimized Machine Code

5
Related Work

• Binary Decompilation Translation
• Cifuentes93/96/98
• Kruegel04
• Dehnert03
• Stitt02/03
• Dynamic Binary Optimizations
• Bala00
• Gschwind00
• Ye00
• Levine03
• Control and Data Flow Analysis
• Kastner02
• Decker03
• Amme00
• Cooper02

6
Presentation Overview

• FREEDOM Compiler Infrastructure
• Data Dependency Analysis
• CDFG Generation from Scheduled Assembly Code
• Experimental Results
• Summary Conclusions

7
The FREEDOM Compiler

• Common entry point for multiple assembly
  languages.
• Intermediate levels
• Machine Language Syntax Tree
• Control Data Flow Graph
• Hardware Description Language
• Architecture Description Language provides
  resource information for target FPGA
  architecture.
• Output RTL VHDL/Verilog and testbench.

8
Machine Language Abstract Syntax Tree (MST)

• Generic language encapsulates most ISAs,
  including predicated and parallel instruction
  sets.
• All MST instructions are three-operand,
  predicated instructions pred op src1 src2
  dst
• Operand Types Memory Address, Label, Register,
  Immediate.
• Operator types
• Logical AND, NAND, NEG, NOR, NOT, OR, XOR, SLL,
  SRL, etc.
• Arithmetic ADD, DIV, MULT, SUB
• Branch BEQ, BGEQ, BGT, BLEQ, BLT, BNEQ, GOTO,
  CALL
• Comparison CMPEQ, CMPNE, CMPLT, CMPLE, CMPGT,
  CMPGE
• Assignment LD, ST, MOVE, UNION
• General NOP

9
Data Dependency Analysis

• MST instructions are assigned
• A timestep T
• An operation delay
• Each instruction in a parallel set is incremented
  by Tn T 0.01 n
• Each instructions in an expanded set is
  incremented by Tm Tn 0.0001 m
• The write-back stage of an instruction is defined
  as wb timestep delay

TIMESTEP PC OP DELAY SRC1 SRC2 DST
1.0000 0X0020 MULT (2) A4, 2, A4
2.0000 0X0024 LD (5) (A4), A2
2.0100 0X0028 ADD (1) A4, 4,
A2 3.0000 0X002c ADD (1) A4, A2,
A3
10
CDFG Generation from Scheduled Assembly Code
0x0000 VECTORSUM ZERO A7 0x0004
LDW A4, A6 0x0008 B LOOP
0x000C LDW A4, A6
0x0010 B LOOP 0x0014
LDW A4, A6 0x0018 B
LOOP 0x001C LDW A4, A6
0x0020 B LOOP 0x0024
LDW A4, A6 0x0028 B
LOOP 0x002C SUB A1, 4,
A1 0x0030 LOOP ADD A6, A7, A7 0x0034
A1 LDW A4, A6 0x0038
A1 SUB A1, 1, A1 0x003C A1 B
LOOP 0x0040 STW A7, A5 0x0044
NOP 4

• Pipelined assembly code present difficulties in
  CDFG generation
• Complex control flows
• Varying data dependencies
• CDFG generation in 3 steps
• Generate a Control Flow Graph
• Linearize Pipelined Operations
• Generate Data Flow Graph

11
Building a Control Flow Graph

• Based on work by K. Cooper et al, Building a
  Control-Flow Graph from Scheduled Assembly Code,
  Dept. of Computer Science, Rice University.
• Generates a CFG in O(n) time.
• Requires 3 Stages
• Partition the code at labels into a set of basic
  blocks.
• Add edges between CFG blocks to represent normal
  flow of control.
• Iteratively propagate pipelined branch and
  counter information in a simulated control flow.

12
Event-Triggered Operations

• Analogous to a read/write pipeline architecture.
• Event trigger and execution stages are offset by
  operation delay (d).
• Implemented using a virtual shift register of
  size d.
• Event is triggered by assigning a 1 to the
  highest bit (d-1).
• SRL operation is performed on the register in
  successive cycles.
• Event is executed after d cycles, when a 1
  appears in the zero bit.

13
Linearizing Pipelined Branch Operations

• Iteratively propagate pipelined branch and
  counter information in a simulated control flow.
• Trigger a change in control flow after a number
  of delay cycles.
• Only the event is propagated using the SRL
  operation.
• Copy of branch instruction inserted at each
  execution point.
• The branch is predicated on the event
  shift-register.
• Intersecting branch paths are merged by OR-ing
  predicates.
• The original branch instructions are replaced
  with NOPs.

14
Linearizing Pipelined Computational Operations

• Multi-cycle instructions are serialized into
  well-defined data flow paths along the pipeline.
• For an instruction with n delay slots, the value
  is propagated through virtual registers Rn-1?Rn,
  Rn-2?Rn-1, R0?R1, where R0 is the original
  register name.
• Each instruction in the sequence is guarded by a
  predicate on an event-triggering register bit.
• Intersecting data paths are merged by OR-ing
  predicates.

15
Building the Data Flow Graph

• DFG represents data dependencies in each MST
  procedure.
• DFG is generated using write-back times of MST
  instructions.

DOTPROD MVK .S1 500,A1 ZERO .L1
A7 MVK .S1 2000,A3 LOOP LDW
.D1 A4,A2 LDW .D1 A3,A5
NOP 4 MPY .M1
A2,A5,A6 SUB .S1 A1,1,A1
ADD .L1 A6,A7,A7 A1 B .S2
LOOP NOP 5 STW
.D1 A7,A3
16
CDFG Optimizations

• Traditional Optimizations
• SSA
• Common Sub-Expression
• Copy Propagation
• Constant Propagation
• Constant Folding
• Strength Reduction
• Dead Code Elimination
• Loop Unrolling
• Register Allocation
• Custom Optimizations
• Identify I/O Ports
• Undefined Var Elimination
• Const Predicate Elimination
• Memory Forwarding
• Boolean Reduction
• Shift Reduction
• Block-Set Merging

17
Experimental Results

• Each benchmark verified bit-true accurate using
  Modelsim.
• 9 instructions were added for each pipelined
  operation.
• 27 increase in code size during the
  linearization process.
• Values reflect the size of the design before CDFG
  optimizations.

18
Summary Conclusions

• HLS compilers generally convert designs into
  CDFGs.
• Optimizations
• Scheduling
• Design decisions
• Generating CDFGs from pipelined and scheduled
  assembly code is complex.
• FREEDOM compiler generates CDFGs in three stages

• Generate the control flow graph
• Linearize the assembly code
• Generate the data flow graph
• Verification on highly pipelined benchmarks show
  improved performance.
