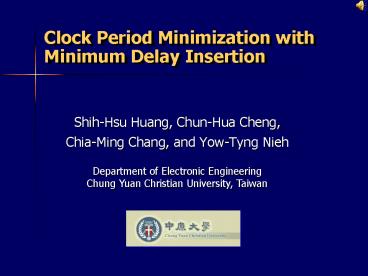

Title: Clock Period Minimization with Minimum Delay Insertion


1
Clock Period Minimization with Minimum Delay
Insertion
  • Shih-Hsu Huang, Chun-Hua Cheng,
  • Chia-Ming Chang, and Yow-Tyng Nieh

Department of Electronic Engineering Chung Yuan
Christian University, Taiwan
2
Outline
  • Introduction
  • Preliminaries
  • Motivation
  • Our Approach
  • Linear Program
  • Solution Space Reduction
  • Experimental Result
  • Conclusion

3
Outline
  • Introduction
  • Preliminaries
  • Motivation
  • Our Approach
  • Linear Program
  • Solution Space Reduction
  • Experimental Result
  • Conclusion

4
Clock Period Minimization
  • Clock period minimization is always one of
    themost important objectives in the design of
    edge-triggered circuits.
  • Although the optimal clock skew scheduling can
    enhance the circuit performance, it has not
    achieved the lower bound of the clock period.
  • The hold constraints often limit the smallest
    feasible clock period that the optimal clock skew
    scheduling can achieve.
  • In fact, hold violations can be resolved by
    applying the delay insertion. Therefore, the
    combination of clock skew scheduling and delay
    insertion can lead to further clock period
    reduction.

5
Why Minimize the Required Inserted Delay?
  • In addition to minimizing the clock period,
    minimizing the required inserted delay is also an
    important objective of this problem.
  • We point out two reasons as below.
  • Minimizing the required inserted delay makes it
    easier to achieve the design closure.
  • Minimizing the required inserted delay makes it
    easier to find a feasible solution from the cell
    library.

6
Pervious Works (1/2)
  • Minimum Padding
  • Minimizes the required inserted delay under a
    given clock skew schedule.
  • Does NOT deal with the determination of
    clockskew schedule.
  • DIANA Algorithm
  • Finds a good clock skew schedule for
    theminimum padding method.
  • Guarantees achieving the lower bound ofthe clock
    period.
  • But only heuristically reduces the
    requiredinserted delay.

7
Pervious Works (2/2)
  • RCA Algorithm
  • Obtains the result as that of the DIANA
    algorithm.
  • Has a lower time complexity than that of
    theDIANA algorithm.
  • Data Path Level Delay Insertion in Clock Skew
    Scheduling
  • Does NOT achieve the lower bound of theclock
    period
  • Does NOT attempt to minimize the
    requiredinserted delay.

8
Our Contributions
  • Obtains the Optimal Solution
  • Our paper is the first work that guarantees
    solving this problem optimally.
  • Achieves the lower bound of the clock period.
  • Achieves the lower bound of required inserted
    delay (for working with the lower bound of the
    clock period)
  • Shows This Problem Is Polynomial
  • We use a linear program to formally formulate
    this problem. Note that a linear program can be
    solved in polynomial time complexity.
  • Thus, our paper is the first proof of showing
    that the time complexity of this problem is
    polynomial.

9
Outline
  • Introduction
  • Preliminaries
  • Motivation
  • Our Approach
  • Linear Program
  • Solution Space Reduction
  • Experimental Result
  • Conclusion

10
Zero Clock Skew Circuit
Longest timing path r?s?t?v?w?y?z?b?c?d
If the clock skew is zero, the clock period P 15
11
Constraint Graph (1/2)
  • By properly scheduling the clock arrival time of
    registers, the clock period can be smaller than
    the delay of longest timing path.
  • Several graph-based algorithms use the constraint
    graph to solve the optimal clock skew scheduling.
  • A constraint graph works with the clock period P,
    provided that it has no negative cycle when the
    clock period is P.
  • There exists at least one critical cycle (i.e.,
    the cycle in which the summation of weights is
    zero) in the constraint graph, if the clock
    period is the smallest feasible clock period.

12
Constraint Graph (2/2)
Circuit Graph
Constraint Graph
13
Optimal Clock Skew Scheduling
Critical Cycle
P 13
14
Lower Bound Pseq (1/2)
  • Since sequential timing optimization adjusts the
    timing slacks among data paths, the lower bound
    of sequential timing optimization Pseq is only
    determined by setup constraints.
  • Due to the limitation of hold constraints, the
    optimal clock skew scheduling often does not
    achieve this lower bound.

15
Lower Bound Pseq (2/2)
  • The cycle consisting S-edge es(R1,R3) and S-edge
    es(R3,R1) determine the lower bound of sequential
    timing optimization.
  • Since (155)/ 2 10, we have Pseq 10.

16
Lower Bound Ppad (1/2)
  • In fact, hold violations may be resolved by
    applying the delay insertion, which is referred
    to as the padding method.
  • Note that the padding problem is not always
    solvable. The largest delay difference among all
    the timing paths gives a lower bound of the clock
    period Ppad for a feasible padding solution.

17
Lower Bound Ppad (2/2)
  • Due to timing path r?s?t?v?w?y?z?b?c?d, we have
    Ppad (5361)-(1211) 10.

18
Lower Bound PLB
  • Let the clock period PLB max(Pseq,Ppad).
    Obviously, the clock period PLB gives a lower
    bound of the clock period for the combination of
    clock skew scheduling and delay insertion.
  • In this example,we have PLB max(Pseq,Ppad)
    max (10,10) 10.

19
Outline
  • Introduction
  • Preliminaries
  • Motivation
  • Our Approach
  • Linear Program
  • Solution Space Reduction
  • Experimental Result
  • Conclusion

20
Drawback of Data Path Level Delay Insertion (1/2)
  • The main drawback of data path level delay
    insertion in clock skew scheduling is that it
    does NOT achieve the lower bound of the clock
    period.
  • The reason is that in their approach, the
    maximum delay and the minimum delay must be
    increased at the same time.
  • Another drawback of data path level delay
    insertion in clock skew scheduling is that it
    does NOT attempt to minimize the required
    inserted delay.
  • As a result, their approach often suffers from a
    huge amount of delay insertion.

21
Drawback of Data Path Level Delay Insertion (2/2)
  • TC3-TC1 P-(15I3,1)
  • TC1-TC3 3i3,1
  • i3,1 I3,1
  • Since the maximum delay and the minimum delay of
    data path R3?R1 must be increased at the same
    time, the clock period P obtained by data path
    level delay insertion in clock skew scheduling is
    12.
  • However, the lower bound of the clock periodPLB
    10.

22
Limitation of Minimum Padding (1/4)
  • The limitation of the minimum padding method is
    that it does not deal with the determination of
    clock skew schedule.
  • Intuitively, we can derive a clock skew schedule
    by only considering all the setup constraints.
    Then, all the hold violations can be resolved by
    applying the minimum padding method.
  • However, there are many clock skew schedules that
    can satisfy all the setup constraints. Since
    different clock skew schedules have different
    hold violations, they require different amounts
    of delay insertion.

23
Limitation of Minimum Padding (2/4)
Under the clock skew schedule Thost 0, TC1
-2, TC2 -11, TC3 -7, the required inserted
delay is 16
24
Limitation of Minimum Padding (3/4)
Under the clock skew schedule Thost 0, TC1 4,
TC2 5, TC3 -1, the required inserted delay is
9
25
Limitation of Minimum Padding (4/4)
Under the clock skew schedule Thost 0, TC1 1,
TC2 -5, TC3 -4, the required inserted delay
is 5
26
Drawback of RCA algorithm (1/2)
  • The RCA algorithm attempts to find one
    irredundant relaxed constraint graph, in which
    the hold constraints are not over-relaxed.
  • However, the irredundant-relaxed constraint graph
    may be non-unique.
  • Different irredundant relaxed-constraint graphs
    lead to different clock skew schedules, which
    require different amounts of delay insertion.
  • Therefore, the RCA algorithm only heuristically
    minimizes the required inserted delay.

27
Drawback of RCA algorithm (2/2)
Another irredundant-relaxed constraint graph
Thost 0, TC1 1, TC2 -5, TC3 -4.
One irredundant-relaxed constraint graph Thost
0, TC1 4, TC2 5, TC3 -1.
28
Our Motivation
  • Although the combination of the RCA algorithm and
    the minimum padding method can minimize the clock
    period, it only heuristically reduces the
    required inserted delay.
  • The main reason is that the RCA algorithm
    determines the clock skew schedule without the
    knowledge of minimum padding method.
  • To guarantee achieving the lower bound of
    required inserted delay, the minimum padding
    method should be directly integrated into the
    stage of clock skew scheduling.
  • Based on that observation, we have the motivation
    to study the simultaneous application of clock
    skew scheduling and minimum padding.

29
Outline
  • Introduction
  • Preliminaries
  • Motivation
  • Our Approach
  • Linear Program
  • Solution Space Reduction
  • Experimental Result
  • Conclusion

30
Outline
  • Introduction
  • Motivation
  • Our Approach
  • Linear Program
  • Solution Space Reduction
  • Experimental Result
  • Conclusion

31
Variables in Our Linear Program
  • Variable TCi denotes the clock arrival time
    ofregister Ri
  • For each pin u
  • Variable EAu denotes the earliest data arrival
    time
  • Variable LAu denotes the latest data arrival time
  • For each wire from pin u to pin v, Xu,v denotes
    the delay insertion

32
Objective Function
  • Our objective function is to minimize the
    required inserted delay for working with the
    lower bound of the clock period PLB.
  • Minimize (Xi1,a Xc,d Xe,f Xg,h Xl,j
    Xk,o1 Xe,n Xl,m Xp,q Xr,s Xt,o2 Xr,u
    Xt,v Xw,y Xi2,x Xz,b)

33
Formula 1
  • The amount of delay insertion should be greater
    than or equal to 0.
  • Thus, we have the following constraints
  • 0Xi1,a
  • 0Xi2,x,
  • 0Xc,d,
  • 0Xe,f,
  • 0Xg,h,
  • 0Xl,j, and so on.

34
Formula 2
  • For each output pin of a logic gate, its earliest
    data arrival time should not be greater than the
    earliest data arrival time of input pin plus the
    minimum delay of this timing arc.
  • Thus, we have the following constraints
  • EAc EAa1, EAc EAb1, EAp EAm1, and so on.

35
Formula 3
  • For each output pin of a logic gate, its latest
    data arrival time should not be less than the
    latest data arrival time of input pin plus the
    maximum delay of this timing arc.
  • Thus, we have the following constraints
  • LAa3 LAc, LAb1 LAc, LAm4 LAp, and so on.

36
Formula 4
  • For each wire, the earliest data arrival time of
    starting pin should not be greater than the
    earliest data arrival time of ending pin plus the
    amount of delay insertion.
  • Thus, we have the following constraints
  • EAa EAi1Xi1,a, EAx EAi2Xi2,x, EAd
    EAcXc,d, and so on.

37
Formula 5
  • For each wire, the latest data arrival time of
    starting pin should not be less than the latest
    data arrival time of ending pin plus the amount
    of delay insertion.
  • Thus, we have the following constraints
  • LAi1Xi1,a LAa, LAi2Xi2,x LAx, LAcXc,d
    LAd,
  • and so on.

38
Formula 6
  • For the starting pin of each data path, its
    earliest data arrival time is the clock arrival
    time.
  • Thus, we have the following constraints
  • EAi1 Thost, EAi2 Thost,
  • EAe TC1, EAl TC2, EAr TC3.

39
Formula 7
  • For the starting pin of each data path, its
    latest data arrival time is the clock arrival
    time.
  • Thus, we have the following constraints
  • LAi1 Thost, LAi2 Thost,
  • LAe TC1, LAl TC2, LAr TC3.

40
Formula 8
  • Due to the hold constraint, for the ending pin of
    each data path, its earliest data arrival time
    should be greater than or equal to the clock
    arrival time.
  • Thus, we have the following constraints
  • Tc1EAd, Tc2 EAh, Tc3 EAq,
  • Thost EAo1, Thost EAo2.

41
Formula 9
  • Due to the setup constraint, for the ending
    pinof each data path, its latest data arrival
    time should be less than or equal to the arrival
    time of next clock edge.
  • Thus, we have the following constraints
  • LAd TC1PLB, LAhTC2PLB, LAqTC3PLB,
  • LAo1ThostPLB, LAo2 ThostPLB.

42
Our Results
  • After solving the linear program, we find that
  • Xt,o23, Xr,u2, Thost 0, TC1 1, TC2 -5,
    and TC3 -4.
  • The delay insertions of other wires are 0.
  • The required inserted delay is only 5.
  • The padded circuit works with the lower bound of
    the clock period.

43
Outline
  • Introduction
  • Preliminaries
  • Motivation
  • Our Approach
  • Linear Program
  • Solution Space Reduction
  • Experimental Result
  • Conclusion

44
Find Zero-Delay-Insertion Wires
  • The delay insertion of many wires are 0.
  • We say these wires are zero-delay-insertion
    wires.
  • If we can find zero-delay-insertion wires in
    advance, the solution space of our linear program
    can be greatly reduced.
  • Our Strategies
  • Find zero-delay-insertion wires from the
    viewpointof hold constraints.
  • Find zero-delay-insertion wires from the
    viewpointof setup constraints.

45
From Hold Constraints (1/4)
  • Only the hold-critical data paths may
    requiredelay insertion.
  • A data path is hold-critical if its hold
    constraint limits the circuit performance.
  • We can use an iteration process to find
    hold-critical data paths.
  • The wires that are not in any hold-critical data
    path are zero-delay-insertion wires.

46
From Hold Constraints (2/4)
  • R2?R3, R3?host, host?R1 are hold-critical

P 12
47
From Hold Constraints (3/4)
  • R3?R1 is hold-critical

P 10
48
From Hold Constraints (4/4)
  • Xl,m, Xp,q, Xr,s, Xt,o2, Xt,v, Xw,y, Xz,b, Xi1,a,
    Xi2,x, Xc,d, Xr,u are in hold-critical data
    paths. They may require delay insertion.
  • Xe,f, Xg,h, Xe.n, Xl,j, Xk,o1 are not in any
    hold-critical data paths. Thus, we have Xe,f
    Xg,h Xe,n Xl,j Xk,o1 0.

49
From Setup Constraints (1/2)
  • If the lower bound of the clock period is the
    lower bound of sequential timing optimization
  • The data paths that determine the lower bound of
    sequential timing optimization is setup-critical.
  • For each setup-critical data path, we cannot
    insert any delay into its longest timing paths.
  • Therefore, the wires in the longest timing paths
    of setup-critical data paths are
    zero-delay-insertion wires.

50
From Setup Constraints (2/2)
  • R1?R3 and R3?R1 are setup-critical
  • For R1?R3, e?n?p?q is longest timing path.
  • For R3?R1, r?s?t?v?w?y?z?b?c?d is longest timing
    path.
  • Thus,we have Xe,n Xp,q Xr,s Xt,v Xw,y
    Xz,b Xc,d 0.

51
Reduced Linear Program
  • Zero-delay-insertion wires
  • From the viewpoint of hold constraints, we can
    let Xe,f Xg,h Xe.n Xl,j Xk,o1 0 in
    advance.
  • From the viewpoint of setup constraints, we can
    let Xe,n Xp,q Xr,s Xt,v Xw,y Xz,b
    Xc,d 0 in advance.
  • Although a lot of variable are pruned,
    aftersolving the linear program, we still obtain
    the same optimal solution.
  • Xt,o23, Xr,u2, Thost 0, TC1 1, TC2 -5,
    and TC3 -4.
  • The required inserted delay is only 5.
  • The padded circuit works with the lower bound of
    the clock period.

52
Outline
  • Introduction
  • Preliminaries
  • Motivation
  • Our Approach
  • Linear Program
  • Solution Space Reduction
  • Experimental Result
  • Conclusion

53
Benchmark Data
  • Our platform is Windows XP operating system
    running on AMD K8-3000 processor.
  • We use Extended-LINGO Release 8.0 as the linear
    program solver.
  • We use C programming language to implement the
    process of solution space reduction.
  • We compare our approach with RCA, DIANA, and data
    path level delay insertion in clock skew
    scheduling.
  • The circuits in ISCAS89 benchmark suite are
    targeted to UMC 0.18µm cell library to test the
    effectiveness of our approach.
  • The comparisons include the clock period, the
    required inserted delay, and the CPU time.

54
Clock Period-S3384
55
Clock Period-S6669
56
Clock Period-S15850
57
Clock Period-S35932
58
Required Inserted Delay-S3384
59
Required Inserted Delay-S6669
60
Required Inserted Delay-S15850
61
Required Inserted Delay-S35932
62
CPU Time-S3384
63
CPU Time-S6669
64
CPU Time-S15850
65
CPU Time-S35932
66
Outline
  • Introduction
  • Preliminaries
  • Motivation
  • Our Approach
  • Linear Program
  • Solution Space Reduction
  • Experimental Result
  • Conclusions

67
Concluding Remarks
  • This paper investigates the simultaneous
    application of clock skew scheduling and minimum
    padding. A linear program is proposed to formally
    formulate this problem.
  • Our paper is the first work that guarantees
    solving this problem optimally. Our approach not
    only achieves the lower bound of the clock
    period, but also achieves the lower bound of
    required inserted delay.
  • Benchmark data show that the CPU time of our
    approach is comparable to those of
    state-of-the-art heuristic methodologies.

68
Thank you
69
Q A
70
Clock Period
71
Required Inserted Delay
72
Required Inserted Delay
73
CPU Time
Write a Comment
User Comments (0)
About PowerShow.com
