Histology

1

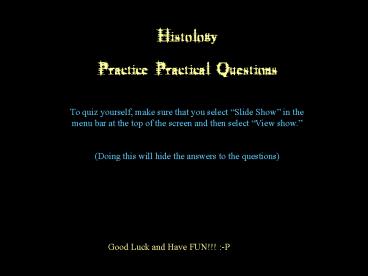

Histology Practice Practical Questions
To quiz yourself, make sure that you select
Slide Show in the menu bar at the top of the
screen and then select View show. (Doing this
will hide the answers to the questions)
Good Luck and Have FUN!!! -P
2
Click here for Answers
1) Identify the organ. 2) Identify the
structure indicated by the arrow. 3) Identify
the strustures indicated by the brackets.
1) Kidney 2) Glomerulous 3) Medullary Rays
3
Click here for Answers
1) Identify the organ 2) Identify the cells
indicated by the arrow 3) Identify the cells
indicated by the green arrow
1) Parathyroid 2) Oxyphils 3) Chief cells
4
Click here for Answers
1) Identify the organ - be specific 2) Identify
the structure indicated by the bracket 3)
Identify the region that fills up the left of the
field
1) Proliferative Uterus 2) Coiled tubular
glands 3) Myometrium
5
1-3
4
1) Seminiferous Tubule 2) B spermatogonia
C primary spermatocytes D sperm
arrow sertoli cell
1) Identify the organ 2) Identify the cells
indicated by the letters B, C, D and the arrow
Click here for Answers
6
1) Pituitatry gland 2) A anterior pituitary
B Pars Intermedia C Posterior
Pituitary 3) Pitocytes 4) Chromophobes and
chromophils
1) Identify the organ 2) Identify the regions
indicated by the letters A, B, and C 3) Identify
the nucleatd cells seen the region labeled with
C 4) Name the two types of cells found in the
region labeld with A
Click here for Answers
7
Click here for Answers
1) Identify the structure 2) Identify the type
of epithelium lining the lumen of this
structure 3) Identify the layer to which the
green arrow is pointing
1) Vas Deferens 2) Pseudostratified columnar
epithelium with stereocilia 3) Lamina propria
8
1) Identify this structure 2) Identify the
regions indicated by CC and CS 3) Identify the
stucture indicated by the green arrow
Click here for Answers
1) Penis 2) CC Corpus cavernosa CS
Corpus Spongisum 3) Urethra
9
Click here for Answers
1) Identify the organ 2) Identify the cells to
which the green arrows are pointing 3) Identify
the substance in the center of each unit 4)
bonus! What are the arrow heads pointing to in
the insert
1) Thyroid 2) Follicular epithelium 3)
Colloid 4) c-cells/parafollicular cells
10
1) Adrenal Gland 2) G zona glomerulosa
F zona fasiculata R zona reticulata
M medulla
1) Identify the structure 2) Identify the
regions labeled G, F, R, and M.
Click here for Answers
11
Click here for Answer
1) Identify this structure 2) Identify
structure indicated by the arrow 3) Identify the
tissue indicated by the green arrow
1) Prostate gland 2) Concretion 3) Smooth muscle
12
Click here for Answers
1) Name the structure depicted here - be
specific 2) Identify the structure indicated by
the black arrow 3) What are the arrow heads
pointing to? 4) What is the green arrow
defining?
1) Active Mammary gland 2) CT Septa 3)
Secretory product 4) Lobule
13
Click here for Answers
1) Identify this structure. 2) Identify the
tissue that the black arrow is poining to
1) Oviduct 2) Smooth muscle
14
Click here for Answers
1) Identify the structure 2) Identify the
structure to which the black arrow is pointing 3)
Identify the other types of cells seen around
the structur named in 2
1) Pineal Gland 2) Brain sand 3) Secretory
cells and neuroglia
15
Click here for Answers
1) Identify the organ
1) Ovary
16
Click here for Answers
1) Identify the organ 2) Identify the layer
that fills the left of the field
1) Urinary bladder 2) Smooth muscle
17
Click here for Answers
1) Identify the structure - Be specific 2)
Identify the cells to which the arrow heads are
pointing 3) Name the tissue to which the green
arrow is pointing 4) Identify the tissue that
the black arrow is pointing to
1) Ductilus Epididymis 2) Sperm 3) Smooth
muscle 4) Pseudostratified epithelium with
stereocilia
18
A
B
c
1) Ureter 2) A Transitional Epithelium B
Lamina Propria C Smooth Muscle
1) Identify this structure 2) Identify the
layers indicated by the letters A, B, and C
Click here for Answers
