GenRiver 1.0

1

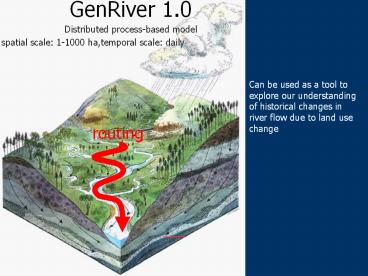

GenRiver 1.0 Distributed process-based model
spatial scale 1-1000 ha,temporal scale daily
Can be used as a tool to explore our
understanding of historical changes in river flow
due to land use change
2
cloud interception
Hydrological functions of forest
rainfall
canopy water evaporation
Forest
transpiration
surface evaporation
Trees
through-fall
surface run-on
stem-flow

Quick flow
infiltration
surface run-off
recharge
sub-surfacelateral inflow
Soil
lateral outflow
uptake
base flow
percolation
3
poverty
Adequate supply of clean water, no flooding
4
Watershedfunctions
Site cha- racteristics
Relevant for

• 1. Transmit water
• 2. Buffer peak rain events
• 3. Release gradually
• 4. Maintain quality
• 5. Reduce mass wasting

• Rainfall
• Land form
• Soil type
• Rooting depth (natural vegetation)

• Downstream water users,
• esp. living in floodplains river beds,
• esp. without storage
• or purification
• at foot of slope

5
GenRiver 1.0 a simple model that translates a
plot-level water balance to landscape level river
flow
Land cover influences evapotranspiration -gt
water yield (immediate) infiltration (medium
term soil type)
6
(No Transcript)
7
The core of the model Patch level represent
daily water balance, driven by local rain
rainfall and modified by land cover and soil
properties of the patch
8

• The patch can contribute to three types of stream
  flow
• Surface quick flow on the day of rain event
• Soil quick flow on the next day after rain
  event
• Base flow via gradual release of groundwater

9
(No Transcript)
10
Step 1 canopy interception
1. Interception evaporation from wet surfaces
1
Current LAI Waterfilm thickness
Cap(1-EXP(-Rain/Cap))
Will evaporate within a day
Calder (2004) HYLUC
11
Step 2 Lack of Infiltration gt overland flow
1. Interception evaporation from wet surfaces
2. Overland flow into streams quickflow
PotInfRate
Rain duration, Can.Interc.Delay Surface staorage,
Slope
SoilSat - Actual
12
Step 3 Soil quickflow drain towards field
capacity
1. Interception evaporation from wet surfaces
2. Overland flow into streams quickflow
3. Subsurface flow into streams interflow or
soilquickflow
Two-tank model
RootZone store
Saturation
FC
SoilQuickFlow Max(0,Soil- FieldCap)
Percolation Fraction
GW store
Saturation
GW release Fraction
Baseflow
13
Step 4 Plant uptake and transpitation
1. Interception evaporation from wet surfaces
2. Overland flow into streams quickflow
3. Subsurface flow into streams interflow or
soilquickflow
4. Uptake by plants for transpiration ( soil
evaporation)
(Epot IntercEff Einterc) W_avail
Evaporation of intercepted water reduces transp.
demand
Energy driven, e.g.Penman
14
Step 5 Percolation to streams as slow flow
1. Interception evaporation from wet surfaces
2. Overland flow into streams quickflow
3. Subsurface flow into streams interflow or
soilquickflow
1
4
4. Uptake by plants for trans-piration ( soil
evaporation)
5. Gradual release to streams through deep soil
pathways
2
3
RootZone store
5
Percolation Fraction
GW store
Saturation
GW release Fraction
Baseflow
15
(No Transcript)
16
Topology of stream network distances to array
of observation points
A
Obs point 1 2 3 4 5
B
SubA 15 -1 -1 7 . SubB
16 -1 -1 8 . SubC 14
8 2 -1 . SubD 8 1 -1
-1 . ..
C
D
3
4
E
2
F
G
1
17
Array dimensions in the model
18
Model implementation in Excel

• GenRiver.xls
• Rain Debit data (daily)
• Land cover
• Subcatchment info

19
Model implementation in Stella
GenRiver.stm Model sector
20
Model implementation in Stella
GenRiver.stm
GenRiver.stm
Input section
21
Model implementation in Stella
GenRiver.stm
GenRiver.stm
Patch level water balance
22
Model implementation in Stella
GenRiver.stm
GenRiver.stm
River flow
23
Default run of GenRiver 1.0
24
When seen over a long time series, both under-
and over-estimates occur in dry periods, but the
model tends to exaggerate peaks
25
The model is in the right range but
underestimates flows in dry periods and
exaggerates peaks
26
Model implementation in Stella
GenRiver.stm
GenRiver.stm
Output sector
27
GenRiver application in Sumberjaya - Indonesia
Explore the effect of land cover spatial
pattern for rainfall on river flow
Using 2 time series of land cover fractions
Year 3()
Year 20() Forest 58
14 Cropland
22 11 Coffee
12 70
28
Cumulative water balance
29
River flow using Pathcy Homogenous rain
30
(No Transcript)
31
(No Transcript)
32
(No Transcript)
33
Simulation results current MixedLU situation
not much different from forest, but for a
Degraded soil buffering would be much less
