Title: Integrated Services Architecture IntServ


1

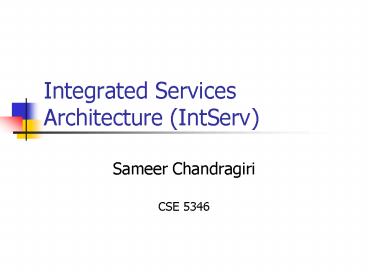

Integrated Services Architecture (IntServ)
  • Sameer Chandragiri
  • CSE 5346

2
Contents
  • Introduction
  • IntServ over DiffServ Networks
  • Benefits of Using IntServ with DiffServ
  • Framework
  • Examples
  • Implications
  • Future work
  • Conclusion
  • References

3
Introduction
  • Internet provides Best effort service
  • Simple
  • No admission control
  • No guarantee no performance assurance
  • Single level of service
  • Not suitable for booming real time applications.
  • The capability to provide resource assurance and
    service differentiation in a network is often
    referred to as quality of service (QoS).

4
Introduction (contd.)
  • QoS parameters
  • Throughput Delay Jitter Data corruption etc.
  • Developed technologies categorized by two key QoS
    issues
  • Resource allocation
  • Integrated Service
  • Differentiated Service
  • Performance optimization
  • Multiprotocol label switching (MPLS)
  • Traffic engineering

5
Introduction (contd.)
  • Integrated Services Architecture (IntServ)
  • Architecture for providing QoS guarantees in IP
    networks for individual application sessions
  • Resource reservation, routers maintain state info
    of
  • Allocated resources
  • QoS requirements
  • Admit / deny new call setup requests

6
Introduction (contd.)
  • Two classes
  • Guaranteed service hard real-time
  • provides firm (mathematically provable) bounds on
    the queuing delays that a packet will experience
    in a router.
  • Controlled load service soft real-time
  • a quality of service closely approximating the
    QoS that same flow would receive from an unloaded
    network element
  • session may assume that a "very high percentage"
    of its packets will successfully pass through the
    router without being dropped and will experience
    a queuing delay in the router that is close to
    zero.
  • targets real-time multimedia applications that
    have been developed for today's Internet.

7
Introduction (contd.)
  • DiffServ
  • Define forwarding behavior not end-to-end
    services.
  • Guarantee by provisioning rather than
    reservation
  • For each forwarding class, the amount of traffic
    that users can inject into the network is limited
    at the edge of the network.
  • service providers can adjust the level of
    resource provisioning
  • control the degree of resource assurance to the
    users.

8
IntServ over DiffServ Networks
  • Use of Diffserv network in the context of the
    Intserv architecture to support end-to-end QoS.
  • Benefits of Using IntServ with DiffServ
  • Resource Based Admission Control
  • Explicit and dynamic admission control in IntServ
    networks
  • Helps to assure that network resources are
    optimally used
  • By appointing an Intserv conversant admission
    control agent for the Diffserv region of the
    network it is possible to enhance the service
    that the network can provide to QoS applications.

9
IntServ over DiffServ Networks (contd.)
  • Benefits (contd.)
  • Policy Based Admission Control
  • RSVP conversant admission control agents can be
    used to apply specific customer policies in
    determining the specific customer traffic flows
    entitled to use the Diffserv network region's
    resources.
  • Customer policies can be used to allocate
    resources to specific users and/or applications.
  • Assistance in Traffic Identification/Classificatio
    n
  • To obtain a particular level of service within
    the Diffserv network region, it is necessary to
    mark the correct DSCP in transmitted IP packet
    headers. The marking can be done either by the
    transmitting host or router.

10
IntServ over DiffServ Networks (contd.)
  • Framework
  • Diffserv region in the middle of a larger network
    supporting Intserv
  • end-to-end
  • Diffserv region contains a mesh of routers, at
    least some of which provide aggregate traffic
    control.
  • Non-Diffserv regions contain meshes of routers
    and attached hosts, at least some of which
    support the Integrated Services architecture.

11
IntServ over DiffServ Networks (contd.)
  • Framework (contd.)
  • Service Mapping
  • selecting an appropriate Per hop behaviour (PHB)
    for the requested service
  • performing appropriate policing (including,
    perhaps, shaping or remarking) at the edges of
    the Diffserv region
  • exporting Intserv parameters from the Diffserv
    region (e.g. for the updating of ADSPECs)
  • performing admission control on the Intserv
    requests that takes into account the resource
    availability in the Diffserv region.
  • 2 schemes to communicate DSCP choice for flow to
    other network elements
  • Default mapping
  • Network driven mapping

12
IntServ over DiffServ Networks (contd.)
  • Framework (contd.)
  • Microflow separation
  • Boundary routers of Diffserv region will police
    outside traffic to protect resources within own
    region
  • Applied on aggregate basis, and NOT to individual
    microflows
  • Misbehaving microflow can claim more share of
    resources
  • Degrades service provided to other microflows

13
IntServ over DiffServ Networks (contd.)
  • Framework
  • Microflow separation (contd.)
  • How do we address this problem???
  • Per microflow policing at edge routers
  • Per microflow policing at border routers
  • Relying on upstream shaping and policing
  • Resource Management in Diffserv Regions
  • statically provisioned resources
  • resources dynamically provisioned by RSVP
  • resources dynamically provisioned by other means
    (e.g., a form of Bandwidth Broker)

14
IntServ over DiffServ Networks (contd.)
  • Examples of IntServ over Diffserv
  • Statically Provisioned, RSVP unaware Diffserv
    Network Region
  • no devices in the Diffserv network region support
    RSVP signalling
  • Diffserv network region is statically provisioned
  • The customer(s) of the Diffserv network regions
    and the owner of the Diffserv network region have
    negotiated a static contract (service level
    specification, SLS) for the transmit capacity to
    be provided to the customer at each of a number
    of standard Diffserv service levels.
  • Disadvantages
  • no signalling between the Diffserv network region
    and network elements outside it. The negotiation
    of an SLS is the only explicit exchange of
    resource availability information between the two
    network regions.
  • does not readily support dynamically changing
    SLSs, since ER1 requires reconfiguration each
    time the SLS changes.
  • it is difficult to make efficient use of the
    resources in the Diffserv network region, because
    admission control does not consider the
    availability of resources in the Diffserv network
    region.

15
IntServ over DiffServ Networks (contd.)
End-to-end QoS through a combination of networks
that support RSVP/Intserv and networks that
support Diffserv
16
IntServ over DiffServ Networks (contd.)
  • Examples of IntServ over Diffserv
  • RSVP-Aware Diffserv Network Region
  • edge routers are standard RSVP routers.
  • The border router, BR1 is RSVP aware.
  • This approach exploits the benefits of RSVP
    signalling while maintaining much of the
    scalability associated with Diffserv.
  • Advantages
  • the admission control agent is part of the
    Diffserv network.
  • By including routers interior to the Diffserv
    network region in RSVP signalling, it is possible
    to simultaneously improve the efficiency of
    resource usage within the Diffserv region and to
    improve the level of confidence that the
    resources requested at admission control are
    indeed available at this particular point in
    time.
  • it is possible to effect changes in the
    provisioning of the Diffserv network region in
    response to resource requests from outside of the
    Diffserv region.

17
IntServ over DiffServ Networks (contd.)
  • Implications
  • Requirements for Diffserv network region
  • Must provide support for standard Intserv QoS
    services between border routers
  • Must provide admission control information to
    non-Diffserv regions.
  • Must be able to pass RSVP messages that are
    recoverable at egress of Diffserv network region.

18
IntServ over DiffServ Networks (contd.)
  • Future Work
  • Mapping Intserv style service specifications to
    services that can be provided by Diffserv network
    regions.
  • Definition of the functionality required in
    (Diffserv) network elements to support RSVP
    signalling with aggregate traffic control
  • Definition of mechanisms to efficiently and
    dynamically provision resources in a Diffserv
    network region (e.g. aggregated RSVP,
    Multi-Protocol Label Switching MPLS, etc.)

19
IntServ over DiffServ Networks (contd.)
  • Conclusion
  • Studied a framework by which Integrated Services
  • may be supported over Diffserv networks.
  • Benefits
  • Resource and policy based admission control
  • Assistance in Traffic Identification/Classificatio
    n
  • The most feasible Intserv over Diffserv
    implementation requires some RSVP aware routers
    within the Diffserv network region.
  • Some requirements that the framework imposes are
    still open and require additional specification
    work.

20
IntServ over DiffServ Networks (contd.)
  • References
  • RFC 1633 - Integrated Services in the Internet
    Architecture an Overview
  • RFC 2998 - A Framework for Integrated Services
    over Diffserv Network
  • Tomi Solala, A Framework for Integrated Services
    over Diffserv Network (2000)
  • RFC 2211 - Specification of the Controlled-Load
    Network Element Service

21
