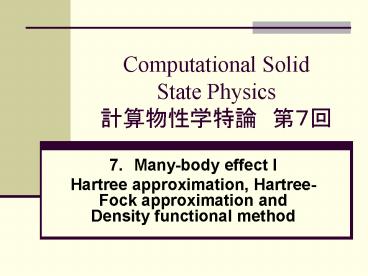

Computational Solid State Physics ??????? ?7?

1
Computational Solid State Physics ??????? ?7?

• 7. Many-body effect I
• Hartree approximation, Hartree-Fock approximation
  andDensity functional method

2
Hartree approximation
N-electron Hamiltonian
N-electron wave function
i-th spin-orbit
ortho-normal set
3
Expectation value of the energy
single electron energy
Hartree interaction
4
Charge density
charge density operator
charge density
Hartree interaction
5
Hartree calculation for Ngtgt1
Energy minimization with condition
Self-consistent Schröedinger equation for the
i-th state
Electrostatic potential energy caused by
electron-electron Coulomb interaction
charge density
6
Hartree-Fock approximation

• Pauli principle
• Identical particles
• Slater determinant
• Exchange interaction
• Hartree-Fock-Roothaans equation

7
Many electron Hamiltonian
single electron Hamiltonian
electron-electron Coulomb interaction
8
Slater determinant
or
N-electron wave function
John Slater
spin orbit
Permutation of N numbers
9
Properties of Slater determinant
or
If
Pauli principle
Identical Fermi particles
The Slater determinant satisfies both
requirements of Pauli principle and identical
Fermi particles on N-electron wave function.
10
Ground state energy
Permutation of N numbers
Orthonormal set
11
Expectation value of Hamiltonian
12
Expectation value of Hamiltonian
13
Expectation value of many-electron Hamiltonian
Coulomb integral
Exchange integral
Hartree term between like spin electrons and
between unlike spin electrons
Fock term between like spin electrons
14
Exchange interaction
Pauli principle
X
no transfer
transfer
suppression of electron-electron Coulomb energy
No suppression of electron-electron Coulomb energy
gain of exchange energy
No exchange energy
15
Hartree-Fock calculation (1)
Expansion by base functions
16
Hartree-Fock calculation (2)
Calculation of the expectation value
17
Hartree-Fock calculation (3)
Expectation value of N-electron Hamiltonian
18
Hartree-Fock calculation (4)
Minimization of E with condition
Hartree-Fock-Roothaans equation
Exchange interaction is also considered in
addition to electrostatic interaction.
19
Hartree-Fock calculation (5)
Schröedinger equation for k-th state
m number of base functions N number of
electrons
Self-consistent solution on C and P
20
Density functional theory

• Density functional method to calculate the ground
  state of many electrons
• Kohn-Sham equations to calculate the single
  particle state
• Flow chart of solving Kohn-Sham equation

21
Many-electron Hamiltonian
T kinetic energy operator Vee electron-electron
Coulomb interaction vext external potential
22
Variational principles

• Variational principle on the ground state energy
  functional En The ground state energy EGS is
  the lowest limit of En.
• Representability of the ground state energy.

charge density
23
Density-functional theory

• Kohn-Sham total-energy functional for a set of
  doubly occupied electronic states

24
Kohn-Sham equations
Hartree potential of the electron charge
density
exchange-correlation potential
excahnge-correlation functional
25
Kohn-Sham eigenvalues

Kinetic energy functional
Janaks theorem
If f dependence of ei is small, ei means an
ionization energy.
26
Local density approximation
nX(r12)
Exchange-correlation energy per electron in
homogeneous electron gas
exchange hole distribution for like spin
Local-density approximation satisfies the sum
rule.
Sum Rule
exchange-correlation hole
27
Blochs theorem for periodic system
G Reciprocal lattice vector a Lattice
vector
28
Plane wave representation of Kohn-Sham equations
29
Supercell geometry
Point defect
Surface
Molecule
30
Flow chart describing the computational procedure
for the total energy calculation
Conjugate gradient method
Molecular-dynamics method
31
Hellman-Feynman force on ions (1)

• for eigenfunctions

32
Hellman-Feynman force on ions (2)
Electrostatic force between an ion and electron
charge density
Electrostatic force between ions
33
Problems 7

• Derive the single-electron Schröedinger equations
  in Hartree approximation.
• Derive the single-electron Schröedinger equations
  in Hartree-Fock approximation.
• Derive the Kohn-Sham equation in density
  functional method.
• Solve the sub-band structure at the interface of
  the GaAs active channel in a HEMT structure in
  Hartree approximation.
