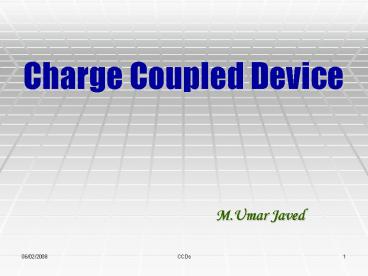

Charge Coupled Device

1
Charge Coupled Device

• M.Umar Javed

2
Outlines

• Basics
• Photodiodes
• Photodiode Arrays
• Charge Coupled Device (CCD)
• History and Principle of working
• Characteristics
• Applications
• Advantages and Disadvantages
• References

3
Photodiode

• A photodiode is a PN junction or
• PIN structure.

4
Operation Modes

• Forward Bias

5

• Reverse Bias

6
Characteristics of PN Junction
7
Photodiode Arrays

• A photodiode array is a linear array of discrete
  photodiodes on an integrated circuit chip.
• It works on the same principle as simple
  photovoltaic detector.

8

• The photodiode array is a multichannel detector.
• They are useful in recording UV-Vis absorption
  spectra of samples.

9
Charge Coupled Device (CCD)

• An instrument whose semiconductors are connected
  in such a way so that the output of one serves as
  the input of the next.

10

• History
• The Charge Coupled Device was conceived
• in 1970 at Bell Labs by W.Boyle and G.Smith.
• Working Principle
• 1 Generate Charge ? Photoelectric Effect
• 2 Collect Charge ?Pixels (gates)
• 3 Transfer Charge ?Apply a differential voltage
  across gates. Signal electrons move down,
  vertical registers to horizontal register.
• 4 Detect Charge ?Individual charge packets are
  converted to an output voltage.

11
(No Transcript)
12
(No Transcript)
13
The voltages supplied to the electrodes change,
and the electron packets move in response.
14
(No Transcript)
15
CCD Characteristics

• Quantum Efficiency ()It is the ratio between
  photogenerated carriers to incident photons per
  pixel.

16
Typical peak values

• Photographic plate 1-2
• Eye 1-2
• Photomultiplier tube20-30
• CCD 70-90
• (HgCdTe)30-50

17

• Charge Transfer Efficiency (CTE)
• The fraction of electrons that are moved from
  one pixel to another during read-out is described
  by the charge transfer efficiency (CTE).
• Pixel to Pixel Variation
• This is fixed pattern noise because of the cell
  to cell non-uniformity.

18

• Dynamic Range
• D well capacity / dark current

19

• Dark Current
• It is produced by thermally generated carriers
  in depletion region.
• Total Noise

20

• Signal To Noise Ratio (SNR)
• For visible region

21
Applications

• CCD imaging systems in astronomy.
• The acquisition, guiding and wave front sensing
  applications in astronomy.
• Fabry-Perot CCD annular-summing spectroscopy.
• Electron-bombarded CCD detectors for ultraviolet
  atmospheric remote sensing.
• MAXDOAS instrument at Bremen.
• To retrieve the 2-dimensional distribution of the
  intensity.

22
Advantages of CCD

• Quantum efficiency (QE) 80
• Low noise.
• High dynamic range.
• High photometric precision.
• Very linear behavior.
• Immediate digital conversion of data.

23

• Low voltages required (5V-15V)
• Geomatrically stable (Good for astronomy).
• Rapid clocking.
• Disadvantages of CCD
• Limited exposure time.
• Cooling required to reduce noise.

24

• Blooming or bleeding in columns due to bright
  sources.

25
References

• Spectral Imaging of the Atmosphere (Gordon
  G.shepherd),June1999
• http//www.astro.virginia.edu/class/oconnell/astr5
  11/lec11-f03.html
• http//chemistry.hull.ac.uk/lectures/adw/06
• spiff.rit.edu/.../ lectures/ccd1/ccd1.html
• Semiconductor Radiation Detectors by Gerhard
  Lutz,1999.
• Single Particle Detection and Measurement by
  R.Gilmore,1992.
• http//www.iup.uni-bremen.de/doas/doas_glossary.ht
  m
