Title: Chapter3 Discrete Random Variables


1

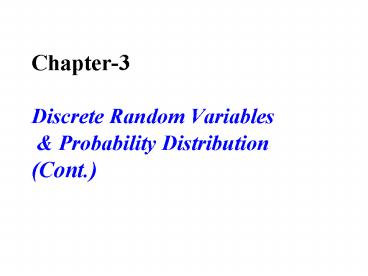

Chapter-3 Discrete Random Variables
Probability Distribution (Cont.)
2
Discrete Uniform Distribution
  • Simplest random variable assumes only a finite
    number of possible values, each with equal
    probability.
  • A random variable X has a discrete uniform
    distribution if each of the n values in its
    range, say, x1, x2, , xn, has equal probability.
    Then,
  • f(xi) 1/n

3
Example 3-13
4
Discrete Uniform Distribution (Cont.)
  • Suppose X is a discrete uniform random variable
    on the consecutive integers a, a1, a2, , b,
    for a lt b. The mean of X is
  • The variance of X is

5
Discrete Uniform Distribution (Cont.)
  • Example 3-14.
  • If all the values in the range of a random
    variable X are multiplied by a constant (without
    changing any probabilities), the mean and
    standard deviation of X are multiplied by the
    constant. The variance should be multiplied by
    the constant squared.
  • Example 3-15.

6
(No Transcript)
7
REVISION
8
(No Transcript)
9
Binomial distribution
  • Examples
  • Flip a coin 10 times. X Number of heads
    obtained.
  • Worn machine tool produces 1 defective parts. X
    Number of defective parts in the next 25 parts
    selected.
  • In the next births at a hospital. X Number of
    female births.
  • Multiple choice test contains 10 questions, each
    with four choices, and you guess at each
    question. X Number of questions answered
    correctly.

10
Binomial distribution (Cont.)
  • Bernoulli Trial A trial with only two possible
    outcomes.
  • It is usually assumed that the trials that
    constitute the random experiment are independent.
    This implies that the outcome from one trial has
    no effect on the outcome to be obtained from any
    other trial.

11
Binomial distribution (Cont.)
  • The number of ways of partitioning n objects into
    two groups, one of which is of size x, is
  • For Success and Failure trials, the above
    expression equals the total number of different
    sequences of trials that contain x successes and
    n-x failures.
  • Remember n! n(n-1)(n-2)(2)(1), 1! 1, 0! 1

12
  • Example 3-16 (refer to example 3-4 Figure 3.1)

13
Binomial distribution (Cont.)
  • A random experiment consists of n Bernoulli
    trials such that
  • (1) The trials are independent.
  • (2) Each trial results in only two possible
    outcomes, labeled as success and failure.
  • (3) The possibility of a success in each trial,
    denoted as p, remains constant.

14
Binomial distribution (Cont.)
  • The random variable X that equals the number of
    trials that result in a success has a binomial
    random variable with parameters 0 lt p lt 1 and n
    1, 2,
  • The probability mass function of X is
  • (X 0, 1, 2, , n)

15
Binomial distribution (Cont.)
  • For a fixed n, the distribution becomes more
    symmetric as p increases from 0 to 0.5 or
    decreases from 1 to 0.5.
  • For a fixed p, the distribution becomes more
    symmetric as n increases.
  • Example 3-18.
  • If X is a binomial random variable with
    parameters p and n,
  • ? E(X) np ?2 V(X) np(1-p)
  • Exercises 3-61, 3-66.

16
(No Transcript)
17
(No Transcript)
18
(No Transcript)
19
REVISION
  • Bernoulli distribution
  • (1) The trials are independent.
  • (2) Each trial results in only two possible
    outcomes, labeled as success and failure.
  • (3) The possibility of a success in each trial,
    denoted as p, remains constant.
  • ? E(X) np
  • ?2 V(X) np(1-p)

20
(No Transcript)
21
Poisson Distribution
  • Examples
  • (1) Particles of contamination in semiconductor
    manufacturing.
  • (2) Flaws in rolls of textiles.
  • (3) Calls to a telephone exchange.
  • (4) Power outages.
  • (5) Atomic particles emitted from a specimen.

22
Poisson Distribution
  • Given an interval of real numbers, assume counts
    occur at random throughout the interval. If the
    interval can be partitioned into subintervals of
    small enough length such that
  • (1) The probability of more than one count in a
    subinterval is zero,
  • (2) The probability of one count in a subinterval
    is the same for all subintervals and proportional
    to the length of the subinterval,
  • (3) The count in each subinterval is independent
    of other subintervals, THEN
  • The random experiment is called a Poisson
    process.

23
Poisson Distribution (Cont.)
  • The random variable X that equals the number of
    counts in the interval is a Poisson Random
    Variable with parameters 0 lt ? , and the
    probability mass function of X is
  • The distribution can be applied to time interval,
    area interval, etc.

24
Poisson distributions for selected values of the
parameters
25
Poisson Distribution (Cont.)
  • If the Poisson random variable represents the
    number of counts in some interval, the mean of
    the random variable must equal the expected
    number of counts in the same length of interval.
  • It is important to use consistent units in the
    calculation of probabilities, means, and
    variances involving Poisson random variables.
  • Example
  • If average number of flaws per millimeter of
    wire is 3.4, then the average number of flaws in
    10 millimeters of wire is 34.
  • Examples 3-32, 3-33

26
Poisson Distribution (Cont.)
  • If X is a Poisson random variable with parameter
    , then
  • ? E(X) ? ?2 V(X) ?
  • THUS, the mean and variance of a Poisson random
    variable are equal.
  • If the variance of count data for the
    distribution is much greater than the mean of the
    same data, the Poisson distribution is not a good
    model for the distribution of the random
    variable.

27
(No Transcript)
28
(No Transcript)
29
Probability models
  • Binomial distribution X denotes the number of
    trials that result in a success out of n trials.
  • Geometric distribution X denotes the number of
    trials until the first success.
  • Negative binomial distribution X denotes the
    number of trials required to obtain r successes.
  • Poisson distribution X denotes the number of
    counts in some interval.

30
(No Transcript)
31
ANNOUNCEMENTS
  • Assignment III
  • 4, 5, 15, 17, 27, 28, 36, 38, 39, 45, 47, 48
  • Assignment IV
  • 56, 57, 62, 64, 68, 98, 100, 101, 102
