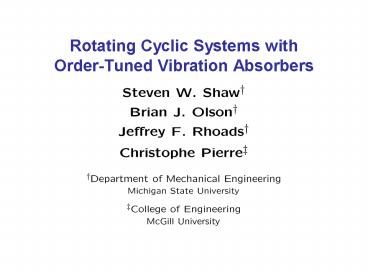

Rotating Cyclic Systems with Order-Tuned Vibration Absorbers

1
Rotating Cyclic Systems with Order-Tuned
Vibration Absorbers
2
Outline

• Cyclic Structures
• Order-Tuned Absorbers
• Motivation Background
• The Linear Problem
• The Nonlinear Problem
• Conclusions Future Work

3
Relevant Previous Work

• Order-Tuned Vibration Absorbers
• Den Hartog, Denman, Cronin, Shaw, Borowski,
  Duffy,
• Vibration Characteristics of Bladed Disk
  Assemblies
• Ewins, Srinivasan, Griffin, Whitehead, Pierre,
• Localization
• Pierre, Bajaj, Vakakis,
• Linear Cyclic Systems
• Pierre, Shapiro, Bajaj, Vakakis,
• Nonlinear Cyclic Systems
• Bajaj, Vakakis, Coller, King,

4
Background
Bladed Disk Assemblies
5
Background
Engine Order Excitation
6
Background
Order Excitation
7
Background
Self-tuning Impact Damper
Turbine Blade
Sleeves
Tuned Dampers
Chamber End Caps
8
Order-Tuned Vibration Absorbers
9
Order-Tuned Vibration Absorbers
Torsional Vibration Reduction
10
History Torsional Vibration Reduction

• Early designs
• Sizing, physical arrangement
• Linear tuning local path curvature - 1930
• Implementations
• Light aircraft engines, WWII
• Helicopter rotors,1980s
• Experimental/racing automotive engines,1990-
• Path designs for nonlinearities
• Cycloids (Madden, 1980), Epicycloids (Denman,
  1991), Subharmonic epicycloids (Lee Shaw,
  1995), General paths (Alsuwayian and Shaw, 2001)

11
Absorber Paths
General Path Representation
12
Absorber Paths

• Linear Tuning
• Frequency of small amplitude motions
• Circles
• Easily manufactured
• Strong nonlinear effects, softening,
• Cycloids
• The tautochrone in uniform fields
• Weak nonlinear effects, hardening,
• Epicycloid
• The tautochrone in radial fields
• Linear absorber motions at all amplitudes,

13
Mathematical Model
Equations of Motion
14
Mathematical Model
Equations of Motion
15
Mathematical Model
16
Cyclic Symmetry
17
The Linearized System
Sector Model
18
The Linearized System
System Model M DOF/Sector
19
The Linearized System
System Model M DOF/Sector
20
Mathematical Preliminaries
Circulant Matrices
21
Mathematical Preliminaries
Diagonalization of a Block Circulant
22
Mathematical Preliminaries
The Fourier Matrix
23
Mathematical Preliminaries
The Direct (Kronecker) Product
24
Linear Vibration
(Block) Decoupling the EOM
25
Linear Free Vibration
One DOF/Sector
26
Linear Free Vibration
One DOF/Sector
27
Linear Free Vibration
One DOF/Sector
28
Linear Forced Vibration
Steady-State Response
29
Linear Forced Vibration
Steady-State Physical Response
30
Linear Forced Vibration
Blade Response (Absorbers Locked)
31
Linear Isolated Absorber Response
Absorber Free, Blades Locked
32
Linear Response
N Blades with Absorbers
33
Linear Response
The Effects of Detuning, Weak Coupling (like N1)
34
Linear Response
The Effects of Detuning, Strong Coupling
35
Linear Response
The Effects of Detuning
36
Linear Response
Frequency Response (zero damping)
37
Nonlinear Blade Response
One DOF/Sector (Blades) Weakly Nonlinear
Strong Coupling
Weak Coupling
38
Nonlinear Blade Response
One DOF/Sector (Blades) Strongly Coupled
39
Nonlinear Blade Response
One DOF/Sector (Blades) Strongly Coupled
40
Nonlinear Blade Response
One DOF/Sector (Blades) Strongly Coupled
41
Nonlinear Blade Response
One DOF/Sector (Blades) Strongly Coupled
42
Nonlinear Blade Response
One DOF/Sector (Blades) Weakly Coupled
43
Nonlinear Blade Response
One DOF/Sector (Blades) Weakly Coupled
44
Nonlinear Blade Response
One DOF/Sector (Blades) Weakly Coupled
45
Nonlinear Blade Response
One DOF/Sector (Blades) Weakly Coupled
46
Nonlinear Blade Response
One DOF/Sector (Blades) Weakly Coupled
47
Nonlinear Blade Response
One DOF/Sector (Blades) Weakly Nonlinear
48
Linear Blade Nonlinear Absorber
Assumptions and Scaling
Goal Capture nonlinear absorber behavior
49
Linear Blade Nonlinear Absorber
N Blade/Absorbers, Weak Coupling
50
Linear Blade Nonlinear Absorber
N Blade/Absorbers, Weak Coupling
51
Linear Blade Nonlinear Absorber
Weak Coupling
52
Linear Blade Nonlinear Absorber
53
Linear Blade Nonlinear Absorber
54
Linear Blade Nonlinear Absorber
55
Summary Conclusions

• Linear System, Blades Absorbers absorber
  effective, no resonance zone
• Nonlinear System, Blades Only traveling wave
  excitation limits some types of instabilities
• Nonlinear System, Blades Absorbers absorbers
  can be effective, but nonlinear absorber paths
  often lead to system resonance

56
Directions for Future Work

• Linear System effects of damping, mistuning
• Nonlinear System, blades only post-bifurcation
  analysis
• Nonlinear System, blades absorbers scaling
  for tautochronic (linear) absorber path,
  detailed parameter studies
• Mistuning random and intentional reduction or
  elimination of symmetry
• Experiments
