Title: Multiple opposing jets in a cross-flow at TKK


1

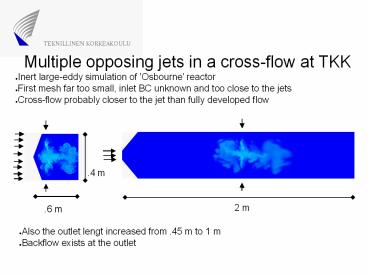

Multiple opposing jets in a cross-flow at TKK
  • Inert large-eddy simulation of 'Osbourne' reactor
  • First mesh far too small, inlet BC unknown and
    too close to the jets
  • Cross-flow probably closer to the jet than fully
    developed flow

.4 m
2 m
.6 m
.6 m
  • Also the outlet lengt increased from .45 m to 1 m
  • Backflow exists at the outlet

2
Multiple opposing jets in a cross-flow at TKK
  • The current mesh includes 4 million control
    volumes
  • The flow possesses large range of scale -gt a
    challenging case
  • The cross-flow is slow compared to the jet flow
  • Crash after one month of computation with 30
    processors !

3
Multiple opposing jets in a cross-flow at TKK
  • No fully converged results obtained yet
  • The flow appears to become asymmetric
