Magnetism

1

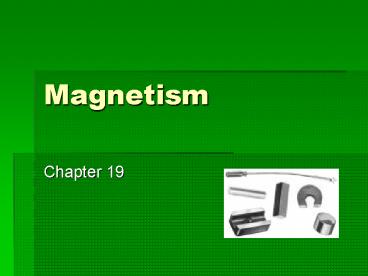

Magnetism

• Chapter 19

2
Chapter 19 Homework

• Conceptual Questions P.611
• 1,3,4,5,7,8,10
• Homework P.611-618
• 1-5,11,14,18,27,29,30,34,37,44,46

3
Magnets

• North and South Poles
• Magnetic Field lines leave the North pole and
  terminate on the South pole
• Like poles repel, unlike poles attract
• Magnetic poles always occur in pairs and cannot
  be isolated
• Bar Magnets

4
Magnets
5
Magnets

• Magnetic Materials
• Soft magnetic materials
• Easily magnetized
• Tend to lose their magnetism easily
• Hard magnetic materials
• Hard to magnetize
• Tend to retain their magnetism longer

6
Magnets Electricity

• Similarities
• Attractive/Repulsive Forces
• Methods for making magnets and charging objects
• E-Field B-Field

• Differences
• Magnetic poles come in pairs electric charges
  can be separated

7
Magnetic Field of the Earth

• Geographic North ? Magnetic South
• Geographic South ? Magnetic North
• Dip Angle

8
Magnetic Field of the Earth
9
Magnetic Fields, B

• A charged particle moving through a magnetic
  field experiences a magnetic force
• This force is at a maximum when the charge moves
  perpendicular to the field.
• F q n B sinq

10
Magnetic Fields, B

• B F
• q n B sinq
• q C, F N, v m/s, B Tesla Wb/m2
• Maximum Force
• F qvB _at_ q 90

11
Magnetic Fields, B

• Right Hand Rule
• Fingers in direction of B-Field, Thumb in
  direction of velocity, then the palm will face
  the direction of the Magnetic Force on a positive
  charge.
• If charge is negative, then the Magnetic Force is
  in the opposite direction.

12
Right Hand Rule
13
A charged particle moves in a straight line
through a certain region of space. The magnetic
field in that region (a) has a magnitude of zero,
(b) has a zero component perpendicular to the
particle's velocity, or (c) has a zero component
parallel to the particle's velocity.
QUICK QUIZ 19.1
14
(b). The force that a magnetic field exerts on a
charged particle moving through it is given by F
qvB sin ? qvB , where B is the component of
the field perpendicular to the particles
velocity. Since the particle moves in a straight
line, the magnetic force (and hence B , since qv
? 0) must be zero.
QUICK QUIZ 19.1 ANSWER
15
The north-pole end of a bar magnet is held near a
stationary positively charged piece of plastic.
Is the plastic (a) attracted, (b) repelled, or
(c) unaffected by the magnet?
QUICK QUIZ 19.2
16
(c). The magnetic force exerted by a magnetic
field on a charge is proportional to the charges
velocity relative to the field. If the charge is
stationary, as in this situation, there is no
magnetic force.
QUICK QUIZ 19.2 ANSWER
17
Magnetic Force on a Current-Carrying Wire

• Right Hand Rule Applies
• Notation is always blue for B-Fields
• ? means into the board
• ? means out of the board
• ? means in the plane of the board

18
Magnetic Force on a Current-Carrying Wire

• Finding the total force on a current carrying
  conductor
• F qvB
• I nqvdA
• Total Force (F) B I l sin q

19
Torque on a Current Loop

• Torque Fd (d lever arm)
• F B I l sin q
• Lever arm half of the loop
• Only works when B is parallel to the plane of the
  loop

20
Torque on a Current Loop

• Torque ( t ) Area B I sin q
• Works for all types of loops
• Torque ( t ) NBIA sin q
• For coil of wire with N turns

21
Galvanometer its Applications

• A device used in the construction of Ammeters and
  volt meters, which has the following components
• Magnetic Field
• Coil of wire free to rotate
• Torque is proportional to current
• Works for small currents

22
Motion of a Charged Particle in a Magnetic Field

• The magnetic force acting on a charged particle
  is always toward the center of a circle
• Causes centripetal acceleration
• F qvB mv/r2
• r mv2/qvB
• What happens if the particles velocity is not
  perpendicular to the B-field?

23
Motion of a Charged Particle in a Magnetic Field
24
Amperes Law

• B-field of a long straight wire
• B moI
• 2pr
• Right hand rule
• If the wire is grasped in the right hand with the
  thumb in the direction of the current, the
  fingers will curl in the direction of the B-Field

25
Amperes Law
26
Magnetic Force Between Two Parallel Conductors

• Force per unit length
• F1 moI1I2
• l 2pd
• The Force is attractive between the wires if the
  current in each wire is in the same direction,
  and repulsive if the current is not in the same
  direction.

27
Magnetic Force Between Two Parallel Conductors
28
If I1 2 A and I2 6 A in the figure below,
which of the following is true(a) F1 3F2, (b)
F1 F2, or (c) F1 F2/3?
QUICK QUIZ 19.5
29
(b). The two forces are an action-reaction pair.
They act on different wires, and have equal
magnitudes but opposite directions.
QUICK QUIZ 19.5 ANSWER
30
Magnetic Field of Current Loop

• All segments of the current loop produce a
  magnetic field at the center of the loop directed
  out of the page
