How%20Far%20is%20a%20Light%20Year?

1

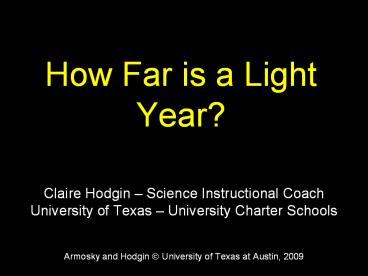

How Far is a Light Year?

• Claire Hodgin Science Instructional Coach
• University of Texas University Charter Schools
• Armosky and Hodgin ? University of Texas at
  Austin, 2009

2
Engage

• Powers of Ten
• About the Relative Size of Things in the Universe
• What was the smallest to the largest distance on
  the video?

1040 10,000,000,000,000,000,000,000,000,000,000,0
00,000,000 m
3
Explore
messagesfromearth.wordpress.com

• If we could shrink the Sun to the size of this
  balloon, how big would the Earth be?

4
Our Solar System
kiroastro.com
5
What is one way to measure a planet or star?

• By the Diameter of the sphere

6
Diameter of a planet
Diameter of a sphere

• The distance from one edge to the opposite edge

7
It would take 108 Earths laid side-by-side to go
across the Suns diameter
messagesfromearth.wordpress.com
findfreeclipart.com
8
Finding the Earth/Sun Diameter Ratio
The Earths diameter is 12,756,000 meters or
1.3 X 107 m
The Suns diameter is 1,400,000,000
meters or 1.4 X 109 m The ratio of the Earth
Sun diameter is 1.3 X 107 m 1.4 X 109
m Simplify the ratio...
1.3 X 107 m 1 m 1.4 X 109 m 108
m Earth to Sun Diameter ratio is
1 108
9
(No Transcript)
10
Actual Distance from the Sun to the Earth
11
If we use the same scale as we used for the SIZE
of Sun and Earth

• How far apart would the Sun and Earth be in our
  model?

Sun Diameter Sun Diameter Sun to Earth Distance Sun to Earth Distance
Model .45 m X Model
Actual 1.4 x 109 m 1.5 x 1011 m Actual
Cross multiply and x 4.8 x 101 m (48 m) or 50
m
12
Distance from the Sun to the Earth in our model
13
Lets take a field trip

• To build a model to scale
• the Sun will be a 450 mm balloon
• the Earth will be a 4 mm lentil
• and they will be 50 meters apart

14
(No Transcript)
15
Explain
The Milky Way Galaxy is about 100,000 light years
across
Powersof10.com
16
One light-year is the DISTANCE that light travels
in one year

• If we are going to find out
• HOW FAR is a Light Year,
• we need to know two things
• The speed of light, measured in meters per second
  and
• The number of seconds in a year

17
What is the fastest speed in the universe?

• The Speed of Light
• What is the speed of light?
• (abbreviated c)
• 300,000,000 meters per second or
• 3 X 108 m/s
• (remember the line in Powers of Ten?)

18
How Many Seconds in a Year?

• 60 seconds per minute
• X 60 minutes per hour
• X 24 hours per day
• X 365.25 days per year
• the number of seconds per year

19
On the Graphing Calculator

• Turn on and press Mode
• At the top row are the words
• Normal Sci Eng
• And the Normal is highlighted in black
• Arrow right to Sci until it is highlighted, and
  press Enter
• Quit (2nd Mode), and now all of your calculations
  are in Scientific Notation (Powers of Ten)

20
In science we call this Dimensional Analysis,
in math Unit Conversion
60 s 60 min 24 hr 365.25 days 3.2 x 107 s
1 min 1 hr 1 day 1 yr 1 yr

Lets try this on the graphing calculator
21
So How Far is a Light Year?

• Multiply the Speed of light (m/s) by the number
  of seconds per year (s/yr)
• number of m/yr
• 3 x 108 m/s X 3.2 x 107 s/yr
• 3 2nd LOG 8 ) X 3.2 2nd LOG 7 ) Enter
• 9.5 x 1015 m/yr
• Or 9,500,000,000,000,000 meters
• Thats Nine Quadrillion, Five Hundred Trillion
  Meters

22

• How long does it take light to get from the Sun
  to the Earth?
• 8 minutes

It takes 16 minutes to go there and back
23
(No Transcript)
24
If we use the same scale as we used for the SIZE
and DISTANCE of Sun and Earth

• How long would a light year be in the model?

Sun Diameter Sun Diameter Light Year Light Year
Model .45 m X Model
Actual 1.4 x 109 m 9.5 x 1015 m Actual
Cross multiply and x 3.1 x 106 m
25
3.1 x 106 meters

• Thats 3.1 x 103 kilometers!
• Thats 3 times wider than Texas!
• Thats too much tape!

26
Lets change the scale of our model.

• What is the new scale factor so that 1 light year
  fits inside a 50 meter paper strip?

Light Year Distance Light Year Distance Sun Diameter Sun Diameter
Model 50 m X Model
Actual 9.5 x 1015 m 1.4 x 109 m Actual
Cross multiply and x 7.4 x 10-6 m
27
(No Transcript)
