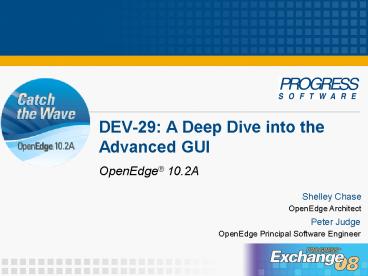

DEV-29 A Deep Dive into the Advanced GUI

• OpenEdge 10.2A

Shelley Chase
OpenEdge Architect
Peter Judge
OpenEdge Principal Software Engineer
2
Get Ready Were Going Under

• Attended Advanced GUI Intro
• Understand OO concepts
• Classes, Inheritance, Methods
• Comfortable with OE Architect
• Can hold your breath for a really long time

3
Demo Advanced GUI in AutoEdge

• Existing application following OERA with
• OpenEdge GUI, Open Clients, WebSpeed, Sonic
• New Advanced GUI
• Main container
• Customer maintenance form
• Test drive scheduling form
• Existing Architecture / Code
• Replaced View only in existing MVP model
  presentation layer
• OERA business and data layers
• Mix and match for remaining windows

4
Under Development

• This talk includes information about potential
  future products and/or product enhancements.
• What I am going to say reflects our current
  thinking, but the information contained herein is
  preliminary and subject to change. Any future
  products we ultimately deliver may be materially
  different from what is described here.

5
Agenda

• ABL for the Advanced GUI
• Advanced GUI Architecture
• ABL Container Classes
• Mix and Match Support
• ABL Data Binding
• ABL Event Handlers
• ABL Custom Controls
• Using the Advanced GUI in AutoEdge

6
Advanced GUI Architecture
Single Process for OpenEdge Runtime and .NET
Common Language Runtime (CLR)
.NET GUI
ABL Logic
.NET UI (View)
OpenEdge UI (Presenter)
7
Advanced GUI Architecture
Single Process for OpenEdge Runtime and .NET
Common Language Runtime (CLR)
.NET GUI
ABL Logic
.NET UI (View)
OpenEdge UI (Presenter)
8
.NET Inheritance Stack

• UI components inheritance stack includes .NET
  root class System.Object

ABL Forms
.NET Controls
All .NET Classes


System Form
System Control
Progress. Windows.Form
Infragistics UltraButton
CustEntryForm (ABL)
.NET Classes Green ABL Classes Blue
9
.NET Windows I/O Blocking Model

• Application with a single main form
• WAIT-FOR ApplicationRun( form ).
• Used for dashboard and MDI applications
• Other forms are children of the main form
• Closing the main form automatically terminates
  WAIT-FOR
• Application with several equal forms
• WAIT-FOR ApplicationRun( ).
• Forms shown at the same time or separately
• An event handler needs to terminate WAIT-FOR

10
ABL Forms in the Advanced GUI
CLASS CustForm INHERITS Progress.Windows.Form

• ABL form classes inherit from one of the
  following
• Progress.Windows.Form
• ABL WINDOW
• Progress.Windows.Dialog
• ABL FRAME VIEW-AS DIALOG-BOX
• Progress.Windows.MDIForm
• No ABL equivalent

11
.NET Controls and ABL Forms

• ABL Forms are containers for .NET UI Controls
• Microsoft .NET Windows Form controls
• Advanced GUI Controls (Infragistics WinForms)
• 3rd-party .NET controls
• Other supported components
• Non-visual controls
• Extender providers (UltraToolTipManager)
• User-defined ABL custom controls

12
Demo ABL Forms

• Create a login dialog

13
ABL Mix and Match UI for Migration

• .NET forms and OpenEdge GUI windows can co-exist
  in same session
• One can parent the other
• All functionality maintained independently
• OpenEdge GUI windows can be embedded in a .NET
  forms
• Client area managed in ABL
• Other functionality managed in .NET
• Progress.Windows.MDIChildForm
• Progress.Windows.WindowContainer

14
.NET UI Programming Model

• Supports static (pre-defined) and dynamic
  (on-the-fly) user interfaces
• Static UI normally built using new WYSIWYG Visual
  Designer in Architect
• Dynamic UI is coded, often repository-based
  customized for site, user, etc.
• Mix of both is supported
• Apply each where necessary
• Hide / show / modify controls dynamically as
  necessary

15
.NET Data Types

• Value types
• All numeric data types, Boolean
• Structures (Datetime, Size, Color)
• Enumerations
• Always passed by value
• Reference types
• System.String
• .NET arrays ( indexes start at 0! )
• All other objects
• Always passed by reference

16
.NET Event Model

• Controls define events they publish
• Strongly-typed events
• Support a list of handlers (callbacks)
• Controls fire an event when an action occurs
• All subscribed handlers get called
• Subscribe ABL event handlers to events
• Information passed in from .NET

17
Event Handling in the Advanced GUI
CustFormFormClosingSubscribe( FormClosingHdlr ).

• Use the Subscribe( ) method to add event handlers
  written in ABL
• Method or internal procedure
• Support for multiple subscribers to one handler
• Event handler called when events fires
• Two parameters passed in
• Object firing the event ( System.Object )
• Event specific arguments ( System.EventArgs)

18
Demo Event Handler

• Validate user on OK button click

19
.NET Data Binding Model

• Progress.Data.BindingSource
• Provides data for .NET UI Controls
• How Provides required APIs to .NET Controls
  (IList)
• Why OpenEdge data provided as .NET needs
• What Any ABL Query, Buffer or ProDataSet

Progress.Data. BindingSource
1
2
3
20
Power of Progress.Data.BindingSource

• Brings ABL data-centric behavior to .NET
• Automatic data synchronization
• Automatic updating
• Automatic batching
• Automatic currency
• Properties
• Updating AllowEdit, AllowNew, AllowRemove
• Current row state NewRow, RowModified
• Typed screen value InputValue, ChildInputValue
• General Information Position, Count

21
Data Binding Examples

• Simple .NET control ( UltraEdit )
• .NET browse-like control ( UltraGrid )
• .NET list control ( UltraListView )

editBoxDataBindingsAdd ( Text, pBS,
OrderNum ).
gridDataSource pBS.
listDataSource pBS. listDataTextField
State. listDataValueField State-Name.
22
Demo Databinding

• Bind a list of UI styles to the login dialog

23
ABL Custom Controls User Controls
CLASS AddrViewer INHERITS ProgressUserControl

• Inherits from Progress.Windows.UserControl
• Custom ABL control container
• Gives common behavior, look and feel to UI
• Add to control toolbox in Visual Designer
• Examples of user controls
• Label and editbox
• Address block
• Grid and viewer

24
ABL Custom Controls Inherited Controls
CLASS OkButton INHERITS InfragisticsUltraButton

• Inherits from existing .NET UI control
• Customize existing control
• Gives common behavior, look and feel to UI
• Add to control toolbox in Visual Designer
• Sample inherited controls
• OK button
• Cancel button
• Read-only grid

25
Demo User-defined ABL Controls

• Create ExplorerBar user control

26
Agenda

• ABL for the Advanced GUI
• Advanced GUI Architecture
• ABL Container Classes
• Mix and Match Support
• ABL Data Binding
• ABL Event Handlers
• ABL Custom Controls
• Using the Advanced GUI in AutoEdge

27
Outlook-style Container for AutoEdge

• Advanced GUI main form
• Dashboard / Container
• Dynamic menu and toolbar
• Hook up events
• Re-use existing architecture
• OERA and MVP
• Run using WAIT-FOR ApplicationRun ( ).

28
Demo

• AutoEdge main container form

29
MDI Child Forms

• Progress.Windows.MDIChildForm
• Hosts OpenEdge GUI windows
• Only client area used
• Uses window handle of .w
• Menu, statusbar, etc. on main form
• Progress.Windows.Form
• New Advanced GUI form
• Infragistics UltraGrid, UltraTree, Ribbon
• ParentMDI property on child
• Menu, statusbar, etc. on main form

30
Demo

• MDIChild forms and GUI windows

31
In Summary

• Modern, competitive UI in ABL
• Uses .NET objects
• Object-oriented ABL
• .NET object features (methods, properties,
  events)
• WYSIWYG Visual Designer
• Unlimited controls available
• Leverages what you know
• ABL (events, business logic, data constructs)
• Event-driven programming (WAIT-FOR)
• OpenEdge Architect

32
Relevant Exchange Sessions

• DEV-2 Making OpenEdge Architect Work for You
• DEV-6 Introduction to the OpenEdge Advanced GUI
• DEV-16 Leveraging the Power of Advanced GUI
• DEV-32 Using the Advanced GUI, Structured Error
  Handling and SonicMQ to build a Semi-Disconnected
  Point of Sales
• DEV-20 Sex and Sizzle Developing with .NET and
  OpenEdge 10
• DEV-40 Using SmartDataObjects (SDO) with the
  Advanced GUI

33
?
