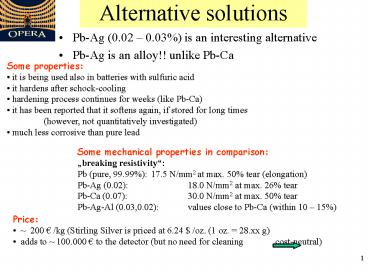

Alternative solutions

1
Alternative solutions

• Pb-Ag (0.02 0.03) is an interesting
  alternative
• Pb-Ag is an alloy!! unlike Pb-Ca

• Some properties
• it is being used also in batteries with sulfuric
  acid
• it hardens after schock-cooling
• hardening process continues for weeks (like
  Pb-Ca)
• it has been reported that it softens again, if
  stored for long times
• (however, not quantitatively investigated)
• much less corrosive than pure lead

Some mechanical properties in comparison breakin
g resistivity Pb (pure, 99.99) 17.5 N/mm2 at
max. 50 tear (elongation) Pb-Ag (0.02) 18.0
N/mm2 at max. 26 tear Pb-Ca (0.07) 30.0 N/mm2
at max. 50 tear Pb-Ag-Al (0.03,0.02) values
close to Pb-Ca (within 10 15)

• Price
• 200 /kg (Stirling Silver is priced at 6.24
  /oz. (1 oz. 28.xx g)
• adds to 100.000 to the detector (but no
  need for cleaning cost-neutral)

2
Pb-Ag
1000 pieces ordered and received
pure Pb
Same 4 plates with different light reflection
Pb-Ag
pure Pb
3
conclude

• should start tests
• already brought 10 samples to Jp
• further hardening possible by adding 0.02 Al to
  Pb-Ag. Do we know what Al does to emulsions?
• also brought Pb-Cu as another possibility
