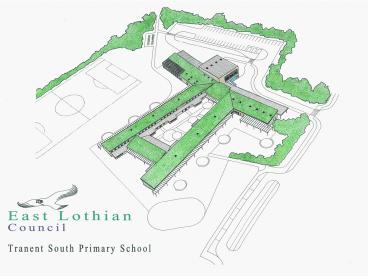

TRANENT SOUTHERN PRIMARY SCHOOL

1
(No Transcript)
2
CLIENT BRIEF

• All work to be planned and implemented to meet
  the following principle - to conserve natural
  resources and minimise pollution in the layout,
  construction and ongoing use of asset/building.
• Flexibility is the keynote of the project.
  Community use of the facility is to be a key
  element of the design solution in a multi-use
  basis. The design would allow for further
  extension of the building if that were required
  at some future date with relative ease
  classrooms, dining areas and school hall.

3
(No Transcript)
4
(No Transcript)
5
DESIGN ISSUES

• Flexible, adaptable, extendable.
• Energy efficient high insulation, low embodied
  energy.
• Natural ventilation good natural day lighting
  simple controls.
• Natural materials, renewable, recyclable.
• Durable and low maintenance.
• A high quality, healthy, educational environment,
  both internally and externally.

6
(No Transcript)
7
(No Transcript)
8
(No Transcript)
9

• Thermal modelling annual space heating load
• CIBSE Good Practice target 113kWh/m2
• Simulation prediction of 56.14 kWh/m2
• Thermal modelling Thermal Comfort Criteria
• CIBSE target not to exceed 25OC for more than
  5 annual occupied hours.
• Simulation prediction of less than 3.45.
• Underfloor heating/ condensing boilers low water
  usage - 3.5m3/pupil/annum energy saving lighting
  controls natural ventilation generally solar
  water heating array.
• Integrated photovoltaics 50 grant from the
  Energy Saving Trust
• 12,461 kWh/annum 14 of estimated requirement
  linked to real time display and IT network to
  support Eco Schools initiative and curriculum.

10
(No Transcript)
11
FABRIC

• Prefabricated engineered timber frame recycled
  cellulose insulation breathing wall
  construction Roof - 0.1 W/m2K Walls 0.17
  W/m2K.
• Sedum roof biodiversity, improved performance,
  water attenuation.
• Terned stainless steel standing seam roofing to
  smaller and north facing areas.
• Clad externally in unfinished Siberian Larch
  weatherboarding with facing brick panels.
• Composite aluminium-timber windows high
  performance, long life, low maintenance.
  Sunpipes remote operated opening rooflights.
• Internal finishes fibre reinforced gypsum board,
  linoleum, 100 recyclable carpet, natural timber
  and breathable non-allergenic mineral paints.

12
(No Transcript)
13
EXTERNAL ENVIRONMENT

• Courtyard providing a quiet area for learning and
  safe exploration of water. To be developed by
  school.
• Outdoor classrooms engaging the environment in
  the curriculum.
• Areas for play and exploration woodland,
  wildflower, and habitat areas, as well as playing
  field for use by school and community.

14
GOAL

• To establish sustainability as a core ethos of
  the school, engaging its users and the wider
  community.
• To use the design itself as an educational tool
  to deepen understanding of the relationship
  between our environment, our communities, and our
  society.
• To embed sustainability and biodiversity allowing
  future users to take ownership and develop their
  own responses to our place in the natural world.

15
(No Transcript)
16
(No Transcript)
17
(No Transcript)
18
(No Transcript)
19
BMS DATA
20
(No Transcript)
21
(No Transcript)
22
(No Transcript)
