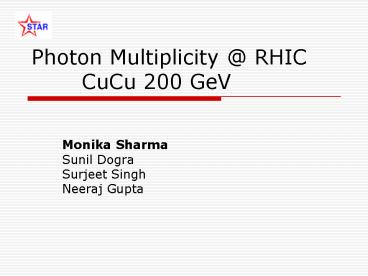

Photon Multiplicity RHIC CuCu 200 GeV

1
Photon Multiplicity _at_ RHIC CuCu 200 GeV

• Monika Sharma
• Sunil Dogra
• Surjeet Singh
• Neeraj Gupta

2
Outline of the presentation

• STAR experiment
• Photon Multiplicity Detector
• Recent results from charge particles
• Comparison of STAR-PMD results from AuAu 62.4 GeV
  CuCu 200 GeV
• Outlook summary

3
The STAR experiment

• The STAR (Solenoidal
• tracker At RHIC)
• experiment at
• Relativistic Heavy
• Ion Collider (RHIC) is
• designed to search
• for different signals of QGP formation.

4
The Photon Multiplicity Detector

• Preshower detector with fine granularity
• Two planes Veto Pre
• - shower.
• ? coverage -2.3 - 3.9
• Total no. of cells 82,944
• Distance from vertex 540 cm
• Cell cross section 1.0cm2, depth 0.8cm
• Readout GASSIPLEX C-RAMS

5

• Area of the detector 4.2m2
• Weight of the detector 900 kg
• F coverage 2p
• Detector design criteria
• Confine charged particle hits to
• single cell.
• Reduce cross-talk stop d-rays
• with in a cell.
• Uses a gas mixture of 70Ar30CO2.

6
Detector
Principle of Preshower

• Photons passing through the
• converter initiate an
• electromagnetic shower
• produce large signals on
• several cells of the
• sensitive volume of the
• detector. Hadrons normally
• affect only one cell
• produce a signal
• representing minimum ionizing particles.

? CLUSTER
ISOLATED CH PARTICLE HIT
7
Techniques of PMD data analysis

• ADC distribution of isolated cells is studied to
  calculate the gain of each cell.
• Gain is normalized to ensure uniformity over the
  entire detector.
• Photon counting efficiency purity in photon
  samples are calculated from simulation
  (HIJINGGEANT).
• Photon discriminating threshold 3MIP NCellgt 1 is
  now applied to identify photons.
• Geometrical acceptance correction factors are
  applied to the data to correct for any dead
  region of the detector.

8
Results for STAR-PMD dataRun V CuCu 200 GeV
9
Centrality Selection is STAR
275K events were used in the presnt analysis
10
Pseudorapidity Distribution of photons (CuCu 200
GeV)
STAR preliminary
Upper limit on systematic Error 24
11
Comparison of results from PHOBOS (Charge
Particles)
Charge particle production at forward rapidities
are independent of system size
12
Previous STAR-PMD results

• Reference PRL 95, 062301 (2005)
• First results of photon multiplicity measurement
  were shown.
• Photons are observed to follow a centrality
  independent limiting
• fragmentation scenario.
• Photons and pions
• follow an energy
• independent limiting
• fragmentation behaviour.

13
Pseudorapidity distribution per participant pair

STAR preliminary
STAR preliminary
Pseudorapidity distribution per participant pair
is independent of centrality. Results agree with
previous STAR-PMD Photon 62.4 GeV results!!!
14
Limiting Fragmentation

• Number of particles produced per participant
  pairs as a function of
• ?-ybeam is independent of beam energy.
• Why limiting fragmentation?
• At higher energies target fragments seen in lab
  frame reach a limit in momentum space.

15
Particle production at forward rapidities is
independent of centrality as well as system size
STAR preliminary
16
Photons and pions follow an energy independent
limiting fragmentation behaviour
STAR preliminary
17
Summary Outlook

• Results of photon multiplicity measurements at
  RHIC in the pseudorapidity region 2.3 lt ? lt 3.7
  are shown.
• Photon production per participant pair is found
  to be approximately independent of centrality in
  this eta region.
• The comparison of AuAu and CuCu most central
  collisions indicate that the pseudorapidity
  density per participant pair does not depend on
  the size of the two colliding nuclei.
