Model : PDR'net 4500

1

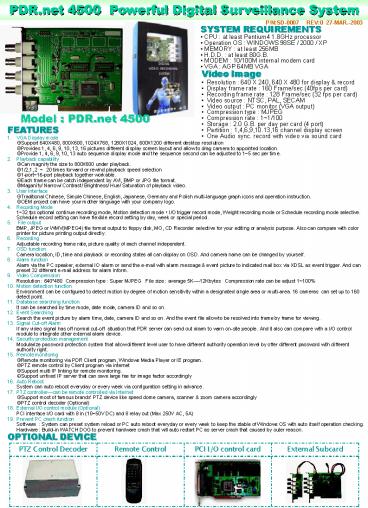

PDR.net 4500 Powerful Digital Surveillance System
P/NSD-0007 REV0 27-MAR.-2003

• SYSTEM REQUIREMENTS
• CPU at least Pentium4 1.8GHz processor
• Operation OS WINDOWS 98SE / 2000 / XP
• MEMORY at least 256MB
• H.D.D. at least 80G.B.
• MODEM 10/100M internal modem card
• VGA AGP 64MB VGA

• Video Image
• Resolution 640 X 240, 640 X 480 for display
  record
• Display frame rate 160 Frame/sec (40fps per
  card)
• Recording frame rate 128 Frame/sec (32 fps per
  card)
• Video source NTSC, PAL, SECAM
• Video output PC monitor (VGA output)
• Compression type MJPEG
• Compression rate 11/100
• Storage 2.0 G.B. per day per card (4 port)
• Partition 1,4,6,9,10.13,16 channel display
  screen
• One Audio sync. record with video via sound card

Model PDR.net 4500

• FEATURES
• VGA Display mode
• Support 640X480, 800X600, 1024X768, 1280X1024,
  600X1200 different desktop resolution
• Provides 1, 4, 6, 9, 10, 13, 16 pictures
  different display screen layout and allow to drag
  camera to appointed location.
• Provide 1, 4, 6, 9, 10, 13 auto sequence display
  mode and the sequence second can be adjusted to
  15 sec per time.
• Playback capability
• Can magnify the size to 800X600 under playback.
• 1/2,1, 2 20 times forward or rewind playback
  speed selection
• 1-port16-port playback together workable.
• Each frame can be catch independent by AVI, BMP
  or JPG file format.
• Maganify/ Narrow/ Contrast/ Brightness/ Hue/
  Saturation of playback video.
• User Interface
• Traditional Chinese, Simple Chinese, English,
  Japanese, Germany and Polish multi-language graph
  icons and operation instruction.
• OEM project can have your mother language with
  your company logo.
• Recording Mode
• 132 fps optional continue recording mode, Motion
  detection mode,I/O trigger record mode, Weight
  recording mode or Schedule recording mode
  selective. Schedule record setting can have
  flexible record setting by day, week or special
  period.
• File output
• BMP, JPEG or WMV(MPEG4) file format output to
  floppy disk, MO, CD Recorder selective for your
  editing or analysis purpose. Also can compare
  with color printer for picture printing output
  directly.
• Recording

OPTIONAL DEVICE
