Reliability Engineering

1

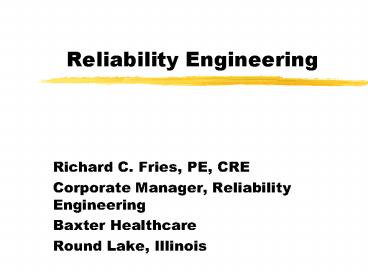

Reliability Engineering

• Richard C. Fries, PE, CRE
• Corporate Manager, Reliability Engineering
• Baxter Healthcare
• Round Lake, Illinois

2
Definition of Reliability

• The probability, at a desired confidence level,
• that a device will perform a specified function,
• without failure,
• under stated conditions,
• for a specified period of time

3
Customers Definition of Reliability

• A reliable product
• One that does what the customer wants,
• when the customer wants to do it

4
Reliability Basics

• Reliability cannot be tested into a product
• It must be designed and manufactured into it
• Testing only indicates how much reliability
• is in the product

5
Purpose of the Reliability Group

• Determine the weaknesses in a design
• AND correct them
• before the device goes to the field

6
Areas Covered by Reliability

• Electrical
• Mechanical
• Software
• System

7
Electrical Reliability
8
Mechanical Reliability
9
Theoretical Software Reliability
10
Practical Software Reliability
11
System Reliability
12
Set the Reliability Goal

• Based on similar equipment
• Used as the basis for a reliability budget
• Listed as Mean Time Between Failures (MTBF) in
  hours or cycles
• MTBF the time at which 63 of the units in the
  field will have failed
• Minimum goal is ten years with a 98 reliability

13
Parts Count Prediction

• Uses MIL-HDBK-217
• Indicates whether the design approximates the
  reliability goal
• Indicates those areas of the design with high
  failure rates

14
Chemical Compatibility

• Test plastics with typically used chemical agents
  (alcohol, anesthetic agents, cleaning agents)
• Cleaning agents are the worst

15
Force Puller
16
Component Testing

• Cycle/life testing of individual components
• Comparison of multiple vendors of components
• Determine applicability for the intended use

17
Philosophy of Testing

• Test to have the units pass
• Test with the addition of stresses to check the
  margins of functionality

18
Types of Tests

• Time terminated, failed parts replaced
• Time terminated, no replacement
• Failure terminated, failed parts replaced
• Failure terminated, no replacement
• Test until first failure
• Test until all samples fail

19
Determining Sample Size

• Uses Chi-Square table
• SS Chi-square Value(MTBF goal)/2
• Chi-square value includes confidence level and
  degrees of freedom 2f2
• Component testing 90 confidence level
• Life testing 95 confidence level

20
Sample Calculation

• Want to test valves to be used for 2,000,000
  cycles per year with a 10 failure rate after 10
  years
• Reliability e(-t/MTBF)
• MTBF -t/ln Reliability
• -20,000,000/ln 0.90
• 389,914,514 cycles

21
Sample Calculation

• MTBF 389,914,514 cycles
• Number of Samples Number of Cyles
• 10 89,777,817
• 50 17,955,563
• 100 8,977,782

22
Component Test Setup
23
Component Test Setup
24
Component Test Setup
25
Calculating Sample MTBF

• MTBF ( of samples)(length of test)
• of failures

26
Calculating MTBF Where No Failures Occur

• A sample MTBF cannot be calculated
• A lower one-sided confidence limit is calculated
  and the MTBF stated to be greater than that
  number
• One-sided limit 2(units)(test time)
• Chi square value for
  the
• confidence limit and 2

• degrees of freedom

27
Sample Calculation for a No Failure Test

• 10 valves are tested for 10,000 cycles with no
  failures. Calculate using a 90 confidence
  level.
• One-sided limit 2(10)(10,000)
• 4.605
• 43,431 cycles
• MTBF gt 43,431 cycles

28
HALT

• Acronym for Highly Accelerated Life Testing
• Used to find the weak links in the design and
  fabrication process
• Usually performed during the design phase

29
HALT Testing

• Possible stresses that can be applied
• random vibration
• rapid temperature transitions
• voltage margining
• frequency margining
• The product is stressed far beyond its
  specifications
• The test can be set up to find the destruct limits

30
HALT Chamber
31
Goal of HALT Testing

• Overstress the product
• Quickly induce failures
• By applying the stresses in a controlled, stepped
  fashion, while continuing monitoring for
  failures, the testing results in the exposure of
  the weakest points in the design
• This test, if successful, will expose weak points
  in the design

32
Environmental Testing

• Operating temperature/humidity
• Storage temperature/humidity
• EMC
• Surges/transients
• Brown-outs
• Electrocautery
• Cell phones
• ESD
• Altitude

33
Environmental Testing

• Autoclave
• Shock
• Vibration
• Shipping
• Tip testing
• Threshold testing

34
Temperature Chamber
35
Walk-In Temperature Chamber
36
Autoclave Testing
37
Customer Misuse

• Excess weight on tabletop
• Fluid spillage
• Cross connection of wires
• Pulling unit by non-pulling parts
• Wrong order of pressing keys
• Knowing how to operate the unit without reading
  the manual

38
Making a Design Foolproof

• The biggest mistake engineers make
• when trying to make a design
• completely foolproof
• is underestimating the ingenuity
• of complete fools

39
Failure Analysis

• Failure device does not operate according to
  its specification
• Determine root cause of the failure
• Suggest methods to address the failure

40
Prototype Front Panel
41
Plastic Structure
42
Plastic Structure
43
Autoclave Testing
44
Manifold Port
45
Prototype Port
46
Life Testing

• Operate the device in its typical environment and
  application
• Use appropriate on/off cycles
• Can be used to verify the reliability goal or a
  specific period of time, such as the warranty
  period

47
Tracking Reliability Growth in the Field

• Collect manufacturing data on how many units were
  manufactured by month
• Collect field failure data, by month
• Develop a reliability growth chart

48
Reliability Growth Example
49
Reliability Growth Example
50
Reliability Growth Example
51
The Reliability Group

• You make it,
• Well break it
