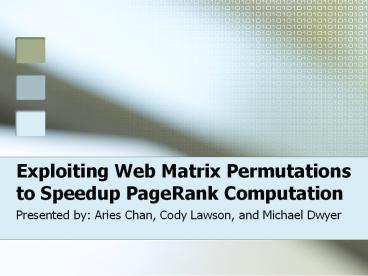

Exploiting Web Matrix Permutations to Speedup PageRank Computation

1
Exploiting Web Matrix Permutations to Speedup
PageRank Computation

• Presented by Aries Chan, Cody Lawson, and
  Michael Dwyer

2
Introduction

• Internet Statistics
• 151 million active internet user as of January
  2004
• 76 used a search engine at least once during the
  month
• Average time spent searching was about 40 minutes

3
Introduction

• Search Engines
• Most common means of accessing Web
• Easiest method of organizing and accessing
  information
• Therefore, high quality / usable search engines
  are very important

Rank Provider Searches (000) Share of Searches
- All Search 10,812,734 100.0
1 Google Search 6,986,580 64.6
2 Yahoo! Search 1,726,060 16.0
3 MSN/Windows Live/Bing Search 1,156,415 10.7
4
Introduction

• Basic Idea of a Search Engine
• Scanning Web Graph
• Using crawlers to create an index of the
  information
• Ranking
• Organizing and ordering information in a usable
  way

5
Introduction

• Webpage Ranking Problems
• Personalization
• http//www.google.com/history/?hlen
• Updating Keeping order up to date
• 25 of links are changed in one week
• 5 new content in one week
• 35 of entire web changed in eleven weeks
• Reducing Computation Time

6
Introduction

• Accelerating the PageRank
• Use compression to fit the Web Graph into main
  memory
• Use sequence of scans of the Web Graph to
  efficiently compute in external memory
• Reduce computation time through numerical methods

7
Introduction

• Reduce computation time through numerical methods
• Use iterative methods such as Gauss-Seidel and
  Jacobi method (Arasu et al and Bianchini et al)
• Subtract off estimates of non-principal
  eigenvectors (Kamvar et al )
• Sort the graph lexicographically by url resulting
  in an approximate block structure (Kamvar et al)
• Split into two problems dangling nodes and
  non-dangling nodes (Lee et al)
• Others have been working on ways to only update
  the ranks of nodes influenced by Web Graph changes

8
Introduction

• Del Corso, Gulli, and Romani(authors of the
  paper)
• Numerical optimization of PageRank
• View the PageRank computation as a linear system
• Transform a dense problem into one which uses a
  sparse matrix
• Treatment of dangling nodes which naturally
  adapts to the random surfer model
• Exploiting web matrix permutations
• Increase data locality and reduce number of
  iterations necessary to solve the problem

9
Googles PageRank Overview

• Web as an oriented graph
• The random surfer
• vi ? pji vj
• (sum of PageRanks of nodes linking to i weighted
  by the transition probability)
• Equilibrium distribution
• vT vTH (left eigenvector of H with eigenvalue 1)

10
Problems with the ideal model

• Dangling nodes (trap the user)
• Impose a random jump to every other page
• B H auT
• Cyclic paths in the Web Graph (reducibility)
• Brin and Page suggested adding artificial
  transitions (low probability jump to all nodes)
• G ?B (1 ? ?)euT

11
Current PageRank Solution

• Since G is just a rank one modification of ?H,
  the power method takes advantage of the sparsity
  of matrix H.

12
Googles PageRank eigenproblem as a linear system

• Expand
• vTG vT (eigenproblem)
• G ?(H auT) (1 ? ?)euT
• (expansion of Google matrix)
• ? vT (?H ?auT) (1 ? ?)vTeuT vT
• Restructure
• Taking S I ? ?HT ? ?uaT
• And with vTe 1
• ? Sv (1 ? ?)u
• (after taking transpose and rearranging)

13
Dangling Nodes Problems

• Dangling Nodes
• Pages with no links to other pages
• Pages whose existence is inferred but crawler has
  not reached
• According to a 2001 sample, approximately 76 are
  dangling nodes.

14
Dangling Nodes Problems

• Natural Model
• B H auT
• Jump with probability 1 to any other node
• Drastic Model
• Completely removes dangling nodes
• Problems
• Dangling nodes themselves are not ranked
• Removing nodes create new dangling nodes
• Self-loop Model eg.
• B H F
• Fij 1 if i j dangling 0 otherwise
• Still row stochastic and is similar to natural
• Problem
• Gives unreasonably high rank to the dangling nodes

15
Which model is the best?

• Natural model
• the most accurate.
• Problem
• Gives a much more dense matrix B
• It is at least partially for this reason that the
  problem is approached as an eigenproblem to
  exploit the sparsity of H
• Can we have an equally lightweight iterative
  approach?

16
Iterative Approach with Sparsity

• Sparse matrix R
• R I ? ?HT
• PageRank v obtained by solving
• Ry u, v ?y such that v11
• Why does this work?
• Since S R ? ?uaT
• and Sv (1 ? ?)u
• (R ? ?uaT)v (1 ? ?)u
• Use Sherman-Morrison formula to calculate the
  inverse

17
Iterative Approach with Sparsity

• We get
• The vector v is our PageRank vector and was
  solved using sparse matrix R

(R ? ?uaT)-1 R-1 (R ? ?uaT)-1 R-1 (R ? ?uaT)-1 R-1 R-1uaTR-1 R-1uaTR-1 R-1uaTR-1
(R ? ?uaT)-1 R-1 (R ? ?uaT)-1 R-1 (R ? ?uaT)-1 R-1 1/? aTR-1u 1/? aTR-1u 1/? aTR-1u
v (1? ?)(1 aTy aTy aTy )y )y )y
v (1? ?)(1 1/? aTy 1/? aTy 1/? aTy )y )y )y
v ?y v ?y v ?y v ?y v ?y v ?y v ?y
? (1? ?)(1 ? (1? ?)(1 aTy aTy aTy ) )
? (1? ?)(1 ? (1? ?)(1 1/? aTy 1/? aTy 1/? aTy ) )
18
Exploiting Web Matrix Permutations

• Use a variety of cheap operators to permute the
  web graph in an organized way in hopes to
• increase data locality
• reduce the number of iterations in order to solve
  the problem
• Explore different iterative methods in order to
  solve the problem quicker.
• Compare the performance of different iterative
  methods based on specifically permuted web
  graphs.

19
Permutation Strategies

• The following operations were chosen based on
  their limited impact on the computational cost
  (Del Corso et al.)
• O - orders nodes by increasing out-degree
• Q - orders nodes by decreasing out-degree
• X - orders nodes by increasing in-degree
• Y - orders nodes by decreasing in-degree
• B - ordering the nodes according to their BFS
  (Breadth First Search) order of visit
• T - transposes the matrix

20
Permutation Strategies (cont.)

• O, Q, X, Y, and T operators ? a full matrix
• The B operator conveniently arranges R into a
  lower block triangular structure due to BFS order
  of visit.
• Combining these operations on R, the following
  structures of the permuted web matrix are
  produced.

21
Permutation Strategies (cont.)

• Visual representations of the permuted web graph.

22
Iterative Strategies

• Power Method
• Computes dominant eigenvector
• Jacobi Method
• Using an initial guess, approximates the solution
  to the linear system of equations. Each
  successive iteration uses the previous
  approximated solution as its next guess till a
  degree of convergence is reached.
• (further explained)
• Gauss-Seidel Method (Reverse Gauss-Seidel)
• Modification of the Jacobi Method, which
  approximates the solution to each successive
  equation in the linear system based on the values
  derived from the previous equations, all within
  each iterative loop. (further explained)
• (http//college.cengage.com/mathematics/larson/el
  ementary_linear/5e/students/ch08-10/chap_10_2.pdf)

23
Iterative Strategies (cont.)

• Further exploration led to iterative methods
  based on the distinct block structure of certain
  web graph permutations.
• DN (or DNR) Method
• The permuted matrix ROT has the property that the
  lower diagonal block coincides with the identity
  matrix. The matrix can be easily partitioned into
  non-dangling and dangling portions. Then the
  non-dangling part is solved by Gauss-Seidel (or
  Reverse Gauss-Seidel respectively).
• LB/UB/LBR/UBR Methods
• Uses the Gauss-Seidel or Reverse Gauss-Seidel
  methods to solve the individual blocks of the
  triangular block matrices produced by the B
  operator.

24
Results
25
Results (cont.)

• For both the Power Method and Jacobi Method, the
  number of Mflops is not dependent on permutations
  of the web matrix. (the small differences in
  numerical data are due to the finite precision
  Del Corso et al.)
• The Jacobi Method (applied to the matrix R) is
  only a slight improvement (about 3) compared to
  the Power Method (applied to the matrix G).

26
Results (cont.)

• The Gauss-Seidel and Reverse Gauss-Seidel Methods
  reduced Mflops by around 40 and running time by
  around 45 on the full matrix compared to the
  Power Method on the full matrix.
• In particular the Reverse Gauss-Seidel Method
  performed on the permuted matrix RYTB reduced the
  number of Mflops by 51 and running time by 82
  when compared to the Power method on the full
  matrix.

27
Results (cont.)

• The block methods achieved even better results
• In particular, the best overall reduction in
  computation time and number of Mflops was
  achieved by LBR method on the permuted matrix
  RQTB.
• 58 reduction in terms of Mflops
• 89 reduction in terms of running time

28
Conclusion

• Objective
• Accelerating Google PageRank by numerical methods
• Contribution
• Viewed web matrix as a sparse linear system
• Formalized new method for treating dangling nodes
• Explored new iterative methods and applied them
  to web matrix permutations
• Achievement
• 1/10 of the computation time
• Reduced over 50 Mflops

29
References

• G.M. Del Corso, A. Gulli, F. Romani, Exploiting
  Web Matrix Permutations to Speedup PageRank
  Computation
• Nielsen MegaView Search (http//en-us.nielsen.com/
  rankings/insights/rankings/internet)
