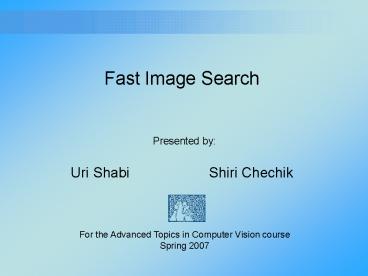

Fast Image Search

1
Fast Image Search
Presented by

• Uri Shabi Shiri Chechik

For the Advanced Topics in Computer Vision
course Spring 2007
2
- The tasks
Introduction

• Recognition
• Given a database of images and an input query
  image, we wish to find an image in the database
  that represents the same object as in the query
  image.
• Classification
• Given a database of images, the algorithm
• Divides the images into groups
• Given a query image it returns the group that the
  image belongs to

3
- The tasks
Introduction
Database
Query Image
Results
D Nister, H Stewenius. Scalable Recognition with
a Vocabulary Tree. CVPR06. 2006.
4
- The tasks
Introduction
Query Image
Database
5
- The problem
Introduction
D Nister, H Stewenius. Scalable Recognition with
a Vocabulary Tree. CVPR06. 2006.
6
- How many object categories are there?
Introduction
Biederman 1987
7
- The Challenges
Introduction
Challenges 1 view point variation
Michelangelo 1475-1564
Adapted with permission from Fei Fei Li -
http//people.csail.mit.edu/torralba/iccv2005/
8
- The Challenges
Introduction
Challenges 2 illumination
Adapted with permission from Fei Fei Li -
http//people.csail.mit.edu/torralba/iccv2005/
9
- The Challenges
Introduction
Challenges 3 occlusion
Magritte, 1957
Adapted with permission from Fei Fei Li -
http//people.csail.mit.edu/torralba/iccv2005/
10
- The Challenges
Introduction
Challenges 4 scale
Adapted with permission from Fei Fei Li -
http//people.csail.mit.edu/torralba/iccv2005/
11
- The Challenges
Introduction
Challenges 5 deformation
Xu, Beihong 1943
Adapted with permission from Fei Fei Li -
http//people.csail.mit.edu/torralba/iccv2005/
12
Introduction
- The Challenges

• To sum up, we have few challenges
• View point variation
• Illumination
• Occlusion
• Scale
• Deformation

13
- Bag of Words (Documents)
Introduction

• A document can be represented by a collection of
  words
• Common words can be ignored (the, an,etc.)
• This is called a stop List
• Words are represented by their stems
• walk, walking, walks ?walk
• A topic can be recognized by Word frequencies

Sivic Zisserman. Video Google a text retrieval
approach to object matching in videos, Computer
Vision, 2003
14
Analogy to documents
- Bag of Words (Documents)
Introduction
Of all the sensory impressions proceeding to the
brain, the visual experiences are the dominant
ones. Our perception of the world around us is
based essentially on the messages that reach the
brain from our eyes. For a long time it was
thought that the retinal image was transmitted
point by point to visual centers in the brain
the cerebral cortex was a movie screen, so to
speak, upon which the image in the eye was
projected. Through the discoveries of Hubel and
Wiesel we now know that behind the origin of the
visual perception in the brain there is a
considerably more complicated course of events.
By following the visual impulses along their path
to the various cell layers of the optical cortex,
Hubel and Wiesel have been able to demonstrate
that the message about the image falling on the
retina undergoes a step-wise analysis in a system
of nerve cells stored in columns. In this system
each cell has its specific function and is
responsible for a specific detail in the pattern
of the retinal image.
sensory
perception
Visual X 2
brain
retinal
cerebral
cell
eye X 2
15
- Bag of Words
Introduction

• Images can be represented by visual words
• An object in an image can be recognized by visual
  word frequencies

J Sivic, A Zisserman. Video Google a text
retrieval approach to object matching in videos.
Computer Vision, 2003.
16
- Visual word
Introduction

• We could use a feature as a visual word, but
• Too many features
• Two features of the same object will never look
  the same
• A visual word is a visual stem which is
  represented by a descriptor
• What is a good code word (visual word)?
• Invariant to different view points, illumination,
  scale, shift and transformation

17
- Bag of Words
Introduction
Adapted with permission from Fei Fei Li -
http//people.csail.mit.edu/torralba/iccv2005/
18
Adapted with permission from Fei Fei Li -
http//people.csail.mit.edu/torralba/iccv2005/
19
- Bag of Words
Introduction

• The fact that we only use the frequencies of
  visual words, implies that this method is
  Translation Invariant.
• This is why it is called a Bag of Words, since
  two images with the same words are identified as
  the same image

20
Breaking down the problem

• Feature Detection
• Feature Description
• Feature Recognition how to find similar words
  to a query feature from a database of code words
• Image Recognition\Classification how to find
  similar images to the query image\ how to
  classify our image

21
Adapted with permission from Fei Fei Li -
http//people.csail.mit.edu/torralba/iccv2005/
22
Feature Detection

• We can use any feature detection algorithms
• We can use a mixture of feature detections and
  capture more types of features
• What is a good detection?
• Invariant to rotation, illumination, scale, shift
  and transformation

23
Feature Description

• What is a good descriptor?
• Invariant to different view points, illumination,
  scale, shift and transformation
• The image recognition is rotation or scale
  invariant if the detector descriptor are as
  well.

24
Feature Description

• SIFT descriptor
• Local Frames of Reference

25
- SIFT
Feature Description

• We determine a local orientation according to the
  dominant gradient
• Define native coordinate system
• We take a 1616 window and divide it into 16 44
  windows
• We then compute the gradient orientation
  histogram of 8 main directions for each window

26
- SIFT
Feature Description

• Properties
• Rotation invariant

27
Feature Description
- Local Affine Frames of Reference

• Works together with Distinguished Regions
  detector
• Assumption Two frames of the same objects are
  related by affine transformation
• Idea Find an affine transformation that best
  normalizes the frame.
• Two normalized frames of the same object will
  looks similar

St?epan Obdr?zalek,Jiri Matas. Object
Recognition using Local Affine Frames on
Distinguished Region
28
- Local Frames of Reference
Feature Description

• Properties
• Rotation invariant (depending on the shape)
• Brings different features of the same object to
  be similar A great advantage!
• Could test similarity of features with great
  efficiency

29
- How to normalize?
Feature Description

• In affine transformation we have 6 degrees of
  freedom, that can enforce 6 constraints
• An example to the constraints
• Rotate the object around the line from the center
  of gravity to the most extreme point

30
Fast Feature Recognition

• A reminder
• Given a database of code words and a query
  feature, we find the closest code word to the
  feature

Query Feature
Database
31
- Inverted File
Fast Feature Recognition

• Each (visual) word is associated with a list of
  (images) documents containing it

? ? ? ?
? ? ? ?
? ? ? ?
? ? ? ?
? ? ? ?
? ? ? ?
? ? ? ?
? ? ? ?
32
- Inverted File
Fast Feature Recognition

• Each image in the database is scored according to
  how many common features it has with the query
  image.
• The image with the best score is selected
• Also note, that in order for the object to be
  recognized successfully (compete with background
  regions) it need to be large enough (at least ¼
  of image area)

33

Fast Feature Recognition

• Why do we need different approaches?
• Why cant we just use a table?
• There could be too many visual words and we want
  a fast solution!

? ? ? ?
? ? ? ?
? ? ? ?
? ? ? ?
? ? ? ?
? ? ? ?
? ? ? ?
? ? ? ?
34
Fast Feature Recognition

• Three different approaches
• A small number of words
• Vocabulary Tree
• Decision Tree

35
- A small number of words
Fast Feature Recognition

• Construction of the vocabulary
• We take a large training set of images from many
  categories
• Then form a codebook containing W words using the
  K-means algorithm
• Recognition phase
• We sequentially find the nearest neighbor of the
  query feature

R Fergus, L Fei-Fei, P Perona, A Zisserman.
Learning Object Categories from Googles Image
Search. ICCV 2005.
36
- A small number of words
Fast Feature Recognition
37
- A small number of words
Fast Feature Recognition
38
- A small number of words
Fast Feature Recognition

• Pros
• Going sequentially over the words leads high
  accuracy
• Space efficiency - we save only a small number of
  words
• Cons
• A small number of words doesnt capture all the
  features

39
- K-Mean Clustering
A small Detour

• Input
• A set of n points x1,x2,,xn in a
• d-dimensional feature space (the descriptors)
• Number of clusters - K
• Objective
• To find the partition of the points into K
  non-empty disjointed subsets
• So that each group consists of the descriptors
  closest to a particular center

40
- K-Mean Clustering
A small Detour

• Step 1
• Randomly choose K equal size sets and calculate
  their centers

m1
41
- K-Mean Clustering
A small Detour

• Step 2
• For each xi
• Assign xi to the cluster with the closest center

42
- K-Mean Clustering
A small Detour

• Step 3 Repeat until no update
• Compute the mean (mass center) for each cluster
• For each xi
• Assign xi to the cluster with the closest center

43
- K-Mean Clustering
A small Detour

• The final result

44
- Vocabulary Tree
Fast Feature Recognition

• Idea
• Use many visual words capture all features
• But since we cant sequentially go over a large
  number of words well use a tree!

D Nister, H Stewenius. Scalable Recognition with
a Vocabulary Tree. CVPR06. 2006.
45
- Vocabulary Tree
Fast Feature Recognition

• Construction of the vocabulary
• Input A large set of descriptor vectors
• Partition the training data into K groups, where
  each group consists of the descriptors closest to
  a particular center
• Continue recursively for each group up to L
  levels
• Recognition phase
• Traverse the tree up to the leaves which will
  hopefully contain the closest word

46
- Vocabulary Tree
Fast Feature Recognition
47
- Vocabulary Tree
Fast Feature Recognition
48
- Vocabulary Tree
Fast Feature Recognition
49
- Vocabulary Tree
Fast Feature Recognition
50
- Vocabulary Tree
Fast Feature Recognition
51
- Vocabulary Tree
Fast Feature Recognition
52
(No Transcript)
53
(No Transcript)
54
(No Transcript)
55
(No Transcript)
56
(No Transcript)
57
(No Transcript)
58
(No Transcript)
59
(No Transcript)
60
(No Transcript)
61
(No Transcript)
62
(No Transcript)
63
(No Transcript)
64
(No Transcript)
65
(No Transcript)
66
(No Transcript)
67
(No Transcript)
68
- Vocabulary Tree
Fast Feature Recognition

• Pros
• We can save many visual words and thus capture
  more features
• Cons
• We cant go sequentially over all words not
  perfectly accurate
• Space we need to save many words

69
- Decision Tree
Fast Feature Recognition

• Idea use a tree, but on each non terminal node
  make a very simple check
• In order to overcome accuracy problems
• We can save some frames in both subtrees
• We need to recheck similarity when we reach to
  the leaves

S Obdrzalek, J Matas. Sub-linear indexing for
large scale object recognition. Proc. British
Machine Vision Conference, 2005.
70
- Decision Tree
Fast Feature Recognition

• Assume Local Frames of Reference Descriptor was
  used
• A very simple check in each non terminal node we
  check only one pixel and compare it to some
  threshold
• The leaves are associated with a list of frames
• The affine transformation is not perfect
• Frames close to the threshold saved in both
  subtrees
• We must recheck similarity of the frames in the
  leaves

71
- Decision Tree
Fast Feature Recognition

• The tree construction
• Every node gets a set of frames
• If the number of frames is below some threshold
  or indistinguishable, create a leaf
• Else find a weak classifier
• All frames below or close to the threshold in
  pixel x, are added to left list
• All fraes above or close to the threshold in
  pixel x, are added to right list
• Continue recursively

72
Weak Classifier
- Decision Tree
Fast Feature Recognition

• The goal minimize the expected recall time for
  query. we need to find that on average
  we reach the leaves in minimal time
• Two requirements
• The tree is balanced
• The number of ambiguous frames that are stored in
  both subtrees is minimized.

73
- Decision Tree
Fast Feature Recognition

• Recognition Phase
• Traverse the tree according to the weak
  classifiers
• Check similarity to the frames in the leaf

74
- Decision Tree
Fast Feature Recognition

• Pros
• We can save many visual words and thus capture
  more features
• A very efficient test in each non terminal node
• Cons
• Since the normalization transformation is not
  perfect It wont work on all frames
• Ambiguous saving
• We need to make another check in the leaves

75
Fast Image Recognition

• Inverted Files
• Probabilistic approach
• Implementation of pLSA Google Image Search

76
Fast Image Recognition

• After recognizing the features in our query
  image, our aim is to recognize an image in the
  database or a group of images (classify) that is
  most similar to our query image.

77
Inverted Files

• Each (visual) word is associated with a list of
  (images) documents containing it along with
  frequency and positions of (visual) words
• Analogous to search engines ( )

78
Inverted Files cont.

• Results are sorted according to a complex scoring
  method that google calls Page Ranking

79
Inverted Files Recognizing an Image

• The list of features in our query image provides
  us with a list of corresponding images.
• The task is to rank those images according to
  their similarity to the query image
• Similarity is based on common words between query
  and DB image.

80
Inverted Files Voting

• Each word independently votes on the relevance of
  images.
• To improve recognition we add weights to the
  different words.

81
Inverted Files Possible Scoring of Words
Frequency of word i in query image
Number of Documents in Database
Word i in query image
Number of Documents containing word i

• Considers how frequent the word is in the
  database. The more rare the word is, the higher
  score it will get (because it is more
  discriminative).
• This is similar to the entropy of a word.

82
Inverted Files Scoring of images
Query Image
Database Image (Document)

• q and d are vectors of the frequencies of all
  words in an image.
• Similarity score between a DB image and query
• Lower score is better match.
• Rare words, when their frequency does not match,
  contribute much more to the score.
• Need to go over all words - implementation is not
  obvious with inverted files

83
Inverted Files Scoring Fast
Vectors are normalized

• Score is a function of common words only.
• Scoring is now straightforward with inverted files

84
Inverted Files Scoring Implications

• This part can be done fast
• Allows scaling of database without linear growth
  in search time because common features are rare
  (with a big vocabulary) for non-matching images.
• Score is 0,2 with 0 the best match, 2 for
  images with no common features.

85
Experiment Effect of Vocabulary Size

• 1400 image database (small)
• Inverted Files
• Detector MSER Maximally Stable Extremel
  Regions
• Descriptor SIFT
• Hierarchical k-means clustering

David Nister Henrik Stewenius 2006
86
Experiment Effect of Vocabulary Size

• Best parameters
• 1 million words, 6 levels tree
• L1 Normalization Scheme
• 90 success on first hit
• Non-Hierarchical
• 10,000 words, one level
• Much slower (linear)
• Only 86 correct on first hit
• Good performance requires large vocabulary!

David Nister Henrik Stewenius 2006
87
Experiment Scalability

• Performance scales well with database size
• Losing lt5 hit rate while expanding the database
  100-fold (green curve is more realistic scenario)

David Nister Henrik Stewenius 2006
88
Demonstration Robustness

• CD Cover is photographed using a digital camera.
• Severe occlusions, specularities.
• Viewpoint, Rotation and Scale are different.

• CD Cover is identified in real-time from a
  database of 50,000 images.

David Nister Henrik Stewenius 2006
89
Summary

• Big vocabulary can be used effectively and
  quickly for high performance image
  identification.
• Using inverted files, database can be scaled
  relatively easy.
• Bag of Words model allows for identification
  under noisy conditions.

David Nister Henrik Stewenius 2006
90
Bag of Words Drawbacks

• Positional information is not taken into account.
• These two images have the same frequency of
  words. Is this the best we can do?
• In fact, in real life, the interaction between
  the features is important.

91
Probabilistic approach TSI-pLSA

• Translation and Scale Invariant pLSA
• Well try to guess a window surrounding our
  object.
• Well use the position, as well as the frequency,
  of a word, to identify the object.
• Well do all of this in an unsupervised manner.
• First, what is pLSA?

R. Fergus et al. 2005
92
Probabilistic approach pLSA

• Probabilistic, Unsupervised approach to object
  classification.
• Probabilistic Instead of identifying a single
  topic in the image we view an image as a
  collection of topics in different proportions.
  e.g. 50 motorbike, 50 house.
• Unsupervised Topics are not defined in advance,
  rather they are learned from the database.

R. Fergus et al. 2005
93
Probabilistic approach Image is made of Topics
D 7

? ? ? ? ? ? ?
? ? ? ? ? ? ?
? ? ? ? ? ? ?
? ? ? ? ? ? ?
? ? ? ? ? ? ?
? ? ? ? ? ? ?
W 6
94
Probabilistic approach Image is made of Topics
Z 2
Car Horse
1 0
0 1
0 ½
0 1
1 0
? 0
D 7

Car ? ? ? ? ? ? ?
Horse ? ? ? ? ? ? ?
Z 2
W 6
95
Probabilistic approach The model pLSA

• Distribution of words in documents is associated
  by a single variable z that represents the topic.
• Assumption is that distribution of words is
  independent of specific document function of
  topic in document.

96
Probabilistic approach Topics and Words

• Each topic (z) is characterized by its own
  frequencies of visual words
• Each image (d) contains a mixture of topics,

97
Probabilistic approach Learning

• In Learning we compute the best values for
• EM is used to maximize the likelihood of the
  model over the data.

98
Probabilistic approach Learning

• In Learning we compute the best values for
• EM is used to maximize the likelihood of the
  model over the data.

Likelihood of data
Computed from the model
99
Probabilistic approach Topics

• Note that learning is unsupervised.
• Topics can be thought of as a group of features
  that tend to appear together in an image.
• Only the number of topics is provided in advance.

Topic
1 2 3 4 5 6 7 8
Results of 8-topic learning with images of
motorbikes
100
Probabilistic approach Topics Example

• The parts of a motorbike tend to appear together
  in an image and therefore, most likely, will be
  grouped under one topic.
• Images sorted by their prominent topic show under
  Topic 7, the most images of motorbikes
• Well name Topic 7 Motorbikes our classifier.

Topic
1 2 3 4 5 6 7 8
101
Probabilistic approach Recognition

• In recognition, is locked after learning phase.
• Using EM, is guessed.

102
Probabilistic approach Recognition Example

1 2 3 4 5
Topic

• In recognition, we identify the most likely
  distribution of topics.
• If topic 4 was our classifier for faces wed
  classify this image as Face

103
Probabilistic approach Choosing Topics

• Number of topics is chosen in advance as a
  parameter.
• It is not related to the actual number of object
  classes in the data.
• We still need to pick the topic that best
  describes our object class.
• One option is to pick by hand the best topic.

104
Probabilistic approach Validation set

• Or we can use a validation set - a few high
  quality images, and automatically pick the single
  best classifier for this validation set.
• In the future, a combination of topics could be
  used to give superior classification.

105
pLSA - Summary

• Word frequency is a function of Topics in image.
• Topics are learned and recognized using EM
• Positional information is still not taken into
  account.

106
Probabilistic approach TSI-pLSA

• Well guess a window surrounding our object.
• Well use the position of a word, relative to the
  object, in the model.

107
Probabilistic approach Object Boundaries

• c describes the boundaries of an object.
• P(c) is Calculated by fitting a mixture of
  Gaussians to the features.
• Center of the object is given as the mean of the
  Gaussian.
• Scale is given by the variance.
• Features are weighted by P(wz) for a given topic
• This is repeated with k1,2,.K for all possible
  bounding boxes.

Image of two planes Fitting a Mixture of
Gaussians with k2 to the features, weighted by
their color, would give the two centers of the
planes.
108
Probabilistic approach Word Position

• x describes the position of a word in relation to
  the object.
• Locations are quantized to 36 internal positions
  and one background position.

109
Probabilistic approach Word Position

• Word positions (x) are used in the model

110
Probabilistic approach Robustness

• Hopefully, recognizing object centroids should
  allow TSI-pLSA to be scale invariant while
  preserving its translation-invariance.

111
Probabilistic approach Results

• Z 2 (Number of topics)
• K 2 (maximum of Gaussians)
• Airplanes
• R Fergus et al. 2005

112
Probabilistic approach Centroid selection

• Red is first topics. It was found to correspond
  to airplanes
• Green is second topic.
• Bounding boxes are suggested centroids.
• Solid rectangles are centroids with highest
  likelihood.

113
Probabilistic approach TSI-pLSA cont.

• In learning, the results of moving the sub-window
  over all possible locations, c, are aggregated.
• In addition, P(c) is a flat distribution since
  there is no more confidence in a single position
  over the other.

114
Probabilistic approach Parameters

• Need to specify number of topics no theory on
  optimal number
• Many parameters for the model, example
• 350 visual words
• 37 discreet positions (6x6 grid background
  position)
• 8 topics (irrespectable of the way we divide the
  dataset)
• 350x37x8 103,900 parameters to learn
• Need to provide many data points
• 500 images
• 700 features in each image
• Only 350,000 data points. That is only 3
  datapoints/parameter.

115
Probabilistic approach Summary

• Number of topics needs to be specified in
  advance.
• Images do not have to be annotated individually.
• Group of images should contain a few object
  classes. Otherwise topics would be meaningless.

116
Usefulness?

• So, we could use a database of airplanes and
  faces but we do not need to know which is which.
• How does that help us???
• TSI-pLSA can be used to improve on google image
  search.

117
Google image search

• Returns many thousands of images.
• Currently, many are low quality (bad viewpoint,
  small objects, junk)

118
Google image search Quality images

• This is for the entire set of images returned for
  each keyword
• Green is good images
• Intermediate means some relevance (like a
  cartoon)
• Bad means junk image, unrelated.

119
Google image search Validation set

• Needs a set of images to serve as the ground
  truth to identify the best topics.
• Could choose some 20 images by hand.
• Empirically, the top 5 images returned by google
  search are usually good quality.
• Could use Google Translate to obtain the top 5
  images in every language.
• For example, 30 images of airplanes in 6
  languages

120
Google image search Probabilistic Approach
Results (TSI-pLSA)

• 7 Keywords (datasets)
• 600 images/keyword
• Validation set 30 images/keyword
• Z8 (Number of topics)
• A single topic was chosen as classifier from the
  8 topics for each keyword using the validation
  set.
• Descriptor SIFT
• Vocabulary 350 words.

R. Fergus et al. 2005
121
Results cont.

• Tested on pre-annotated set. (by hand)
• Each labeled image had to be classified according
  to the pre-determined classifier for each
  category
• Notable problems were (A)irplanes, half of them
  classified as (C)ars Rear.
• Both (F)aces and (W)ristwatches classified as
  (G)uitars

122
Google image search Improving

• Used TSI-pLSA to reorder the images returned by
  google according to the chosen topic.
• Graph shows how many of 15 top hits are relevant

• Note that since this method is completely
  unsupervised it could be used immediately to
  improve the search results of google image
  search, although at a high computational cost.

123
Google image search Automatic Classification

• Give a keyword.
• Use google image search to find images somewhat
  related.
• Use TSI-pLSA to classify the images by topics.
• Use validation set to choose best topic.
• Classify any image in the world.

124
Summary

• Probabilistic method uses results returned from
  image search engine, despite being extremely
  noisy, to construct automatically classifier for
  objects.
• This classifier uses frequency and position of
  visual words to identify the most likely topic of
  the object in the image.
• This topic can be further used to improve the
  relevance of such an image search.
• Positional data not always helpful (results not
  shown). In some cases using only the frequencies
  of the words gives better performance.

125
References

• R Fergus, L Fei-Fei, P Perona, A Zisserman.
  Learning Object Categories from Googles Image
  Search. ICCV 2005.
• D Nister, H Stewenius. Scalable Recognition with
  a Vocabulary Tree. CVPR06. 2006.
• J Sivic, A Zisserman. Video Google a text
  retrieval approach to object matching in videos.
  Computer Vision, 2003.
• S Obdrzalek, J Matas. Sub-linear indexing for
  large scale object recognition. Proc. British
  Machine Vision Conference, 2005.
• Li Fei-Fei, Rob Fergus, Antonio Torralba.
  Recognizing and Learning Object Categories. ICCV
  2005 short courses. http//people.csail.mit.edu/to
  rralba/iccv2005/
