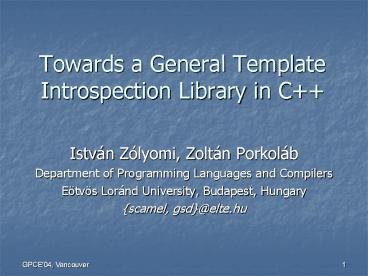

Towards a General Template Introspection Library in C

1
Towards a General Template Introspection Library
in C

• István Zólyomi, Zoltán Porkoláb
• Department of Programming Languages and Compilers
• Eötvös Loránd University, Budapest, Hungary
• scamel, gsd_at_elte.hu

2
C Templates

• Provides language support for parametric
  polymorphism
• Type-aware smart macros
• Many checks are delayed until instantiation
• No restrictions on parameters
• Templates alone form a Turing-complete functional
  language inside C
• Based on template specializations

3
Issues on Templates

• Lazy evaluation instantiate template members
  only on request
• Wider scale of parameters supported
• Avoid code bloat
• Unexpected late errors
• Hard to decode error messages
• Classic example
• Member function of a class template using srot()
  instead of sort() compiles
• Compile error when calling member function

4
Introspection

• Entity can observe its own state
• Information gained in runtime from
• Interpreter (Perl, Ruby, etc)
• VM (Java, .Net, etc)
• Environment (C RTTI)
• Information gained from compiler
• Direct language support
• Hand written exploits

5
Introspection in C

• Limited direct support in the language
• sizeof
• Would be useful to
• Make restrictions on template parameters (concept
  checking)
• Extend current type system (generate conversions,
  operations)
• Optimization (e.g. expression templates)

6
Compile-time Adaptation

• A program can observe its state
• May make decisions depending on state
• Data structures
• Implementation strategies
• Template metaprogramming, e.g. boostmpl
• E.g. a container decide to store
• Comparable values in binary tree
• Other values in list
• Compiler rules apply for generated program

7
Concept Checking

• Concept list of requirements on a type
• Enforce concepts on template parameters
  immediately at instantiation
• Improve implementation quality
• Especially useful at the STL, e.g. for iterator
  categories

8
Concept Checking in Other Languages

• Parameter type must implement interface or derive
  from base class
• Java
• interface Sortable ...
• class SortedList ltT extends Sortablegt ...
• Eiffel
• class SORTED_LIST T -gt COMPARABLE ...
• Similar in functional languages

9
Concept Checking in Other Languages

• Ada generic interface, no inheritance required
• generic
• --- Element type
• type T is private
• --- Comparision on element type
• with function lt (X,Y T) return boolean is
  ltgt
• package Sorted_List
• ...
• end
• --- Generics are instantiated explicitly
• package SL is new Sorted_List(MyType, lt)

10
Concept Checking Techniques

• Currently used in C
• require (GNU STL)
• boostconcept_check
• Shortages
• No elementary conditions identified
• No orthogonality
• No composition
• Fulfill or die philosophy
• Implicit conjunction
• No cooperation with other libraries

11
Ideal Concept Checking Library

• Compile time execution
• Identifying elementary conditions
• Orthogonal design
• Boolean results instead of aborting compilation
• Condition composition
• Cooperation with metaprogramming libraries
• Something like an extension to boosttype_traits
  for concept checking

12
Goals

• Implement introspection library to enable concept
  checking that is close to ideal
• Cooperation with metaprogramming libraries (e.g.
  boostmpl)
• Use only standard C
• No language extension
• No typeof operator
• No compiler-specific features
• No external tools (e.g. gcc-xml)

13
Programming Techniques

• Ellipse accept any parameter
• void f(...)
• Function overload
• Yes isOk(ExpectedType) // expected case
• No isOk(...) // rescue case
• Return types have different sizes
• struct No char dummy
• struct Yes char dummy2

14
Programming Techniques

• Map return types to boolean values
• sizeof( isOk(expression) ) sizeof(Yes)
• Convenience macro for mapping
• // --- The same with macro shortcut
• bool res CONFORMS( isOk(expression) )

15
Programming Techniques

• boostenable_if
• // --- Enabled case
• template ltbool b, class Tgt
• struct enable_if typedef T Result
• // --- Specialized disabled case
• template ltclass Tgt
• struct enable_ifltfalsegt

16
Programming Techniques

• SFINAE rule(Substitution failure is not an
  error)
• // --- Expected case for T
• enable_ifltsizeof(TFeature), Yesgt f(T)
• // --- Rescue case
• No f(...)
• bool res CONFORMS( f(Type()) )

17
Elementary Conditions

• Checks implemented for
• Existence of embedded type with name
• Existence of class member with name
• Exact type of embedded type
• Exact type of member (both function and data)

18
Embedded Type Name

• Inspect if type has an embedded type with given
  name
• Need macros
• PREPARE_TYPE_CHECKER(iterator)
• ...
• // --- Look for name iterator in T
• const bool res CONFORMS(
• TYPE_IN_CLASS(iterator, T)
• )

19
Member Name

• Inspect if type has a non-type member (either
  data or function) with given name
• Similar to previous condition
• PREPARE_MEMBER_CHECKER(size)
• ...
• // --- Look for member size in T
• const bool res CONFORMS(
• MEMBER_IN_CLASS(size, T)
• )

20
Nested Type

• Inspect nested type if name exists
• Cooperate with other tools, e.g.
  boosttype_traits
• // --- Inspect traits of nested type
• const bool isScalar type_traitsltTvalue_typegt
  is_scalar
• // --- Inspect exact type
• const bool isInteger
• SameTypesltint, Tvalue_typegtResult

21
Members

• Exact type of member if name exists
• // --- Inspect if size is data member
• const bool isDataMember CONFORMS(
• Memberltunsigned intgtNonStatic( Tsize )
• )
• // --- Inspect if size is member function
• typedef unsigned int Fun() const
• const bool isMemberFunction CONFORMS(
• MemberltFungtNonStatic( Tsize )
• )

22
Composite Conditions

• User can easily assemble complex conditions
• template ltclass Tgt struct LessThanComparable
• enum Conforms
• CONFORMS( Functionltbool (const T, const
  T)gt Static( operatorlt )
• CONFORMS( Functionltbool (const T)
  constgt NonStatic( Toperatorlt )

23
Hacking?

• Two opinions
• Should be language extension
• Should be user code
• Language change
• Major issue
• Must have proved design
• Should be based on previous experiences

24
Open Questions

• What is the minimal orthogonal set of conditions?
• What other conditions are expected to be
  implemented?
• What conditions are theoretically impossible to
  implement with current language standard?
• DefaultConstructable?

25
Summary

• Separation of introspection from intercession
• Implemented elementary conditions
• Observation provides compile time bool
• Easy to define new user conditions
• Arbitrary combination of conditions is possible
• And, or, negate
• Specialization on this result is possible
• Supports compile-time adaptation
• Supports concept checking

26
Further Plans

• Implement more elementary conditions
• Check theorethical limitation of implementation
• Implement a concept-checking library usable in
  the STL

27
Thank You!

• See related material at
• http//gsd.web.elte.hu
