OAIster: A

1

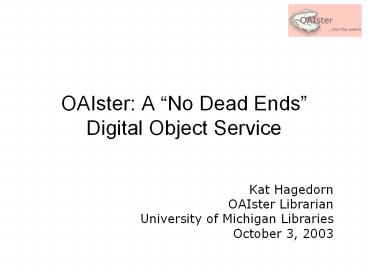

OAIster A No Dead Ends Digital Object Service

• Kat Hagedorn
• OAIster Librarian
• University of Michigan Libraries
• October 3, 2003

2
background

• One-year Mellon grant project to test the
  feasibility of making OAI-enabled metadata for
  digital objects accessible to the public
• Digital Library Production Service at University
  of Michigan Libraries began work in December 2001
• Publicized as OAIster in February 2002
• Launched in June 2002

3
highlights

• Any audience
• Any subject matter
• Any format
• Freely accessible
• No dead ends
• One-stop shopping
• retrieving the hidden web

4
the protocol

• OAI Open Archives Initiative
• OAI-PMH Open Archives Initiative Protocol for
  Metadata Harvesting
• Designed to make it easy to exchange metadata
  among interested parties
• Consists of 6 HTTP requests to identify
  repositories / metadata and perform harvesting

5
tool we borrowed

• University of Illinois Urbana-Champaign
  open-source OAI protocol harvester
• java edition for our unix environment
• Worked collaboratively to iron out kinks
• resumptionToken / retryAfter
• inexplicable kill
• bogus records in MySQL table

6
development environment

• Digital Library Extension Service (DLXS)
• Develop open-source middleware and license XPAT
  search engine for building and mounting digital
  libraries
• Middleware consists of document classes, i.e.,
  Text, Image, Bib, FindAid
• Originally designed to make SGML encoded texts
  available online

7
tool we developed

• Runs in DLXS environment using BibClass
• Current BibClass web templates modified
• Additional java-based transformation tool to
• DC metadata records concatenated
• No-digital-object records filtered out
• Records counted
• Conversion from UTF-8 to ISO-8859-1
• XSLT used to transform DC records into BibClass
  records

8
system design
XSL stylesheets (per source type)
UIUC harvester
XSLT transformation tool
OAI-enabled DC records
Record storage
Non-OAI-enabled DC records
Search interface (XPAT)
BibClass indexes
9
result

• One place to look for digital objects
• Big
• 1,723,003 metadata records
• 203 institutions (as of September 03)
• Popular
• Averages 3300 search sessions / month
• Picked up in March 03 average 3500 now
• 43,894 searches total (through July 03)

10
www.oaister.org search
11
www.oaister.org limiters
12
www.oaister.org sort
13
www.oaister.org results
14
www.oaister.org repositories
15
repositories e.g.,

• Online Archive of California manuscripts,
  photographs, and works of art held in
  institutions across California
• arXiv Eprint Archive math and physics pre- and
  post-prints
• Sammelpunkt, Elektronisch Archivierte Theorie
  archive of philosophical publications
• British Women Romantic Poets Project collection
  of poems written by British women between 1789
  and 1832

16
repositories stats

• As of July 03, out of 191 repositories
• U.S. and foreign
• U.S. 49 (94)
• Foreign 51 (97)
• By subject
• Humanities 26 (50)
• Science 30 (58)
• Mixed 43 (83)
• E-prints and pre-prints
• Using eprints.org software 41 (78)
• Not using eprints.org software 58 (110)

17
major issues encountered

• Metadata variation
• Records not leading to digital objects
• Access restrictions on digital objects described
  in records
• Duplicate records for a single digital object

18
issue metadata variation

• With more records, users need more restrictions
• Consistent metadata needed to facilitate these
  restrictions
• One option normalization of data

19
issue metadata variation

• Type the obvious quick win
• 240 metadata values mapped to four generic values
  (text, image, audio, video)
• e.g.,
• audio, sound audio
• motion, animation, newsreels, etc. video
• watercolour, watercolor, slides, etc. image
• article, articles, booklet, diss, story, etc.
  text

20
issue metadata variation

• Date where to begin?
• Most records with at least one date
• Some records include up to seven dates
• No consistent style of date
• Subject out of context, what meaning?
• Many records with at least one subject element
• But over 100 records with more than 50 subjects
• And one record with 1000!

21
issue metadata variation

• Sample date values
• ltdategt2-12-01lt/dategt
• ltdategt2002-01-01lt/dategt
• ltdategt0000-00-00lt/dategt
• ltdategt1822lt/dategt
• ltdategtbetween 1827 and 1833lt/dategt
• ltdategt18--?lt/dategt
• ltdategtNovember 13, 1947lt/dategt
• ltdategtSEP 1958lt/dategt
• ltdategt235 bcelt/dategt
• ltdategtSummer, 1948lt/dategt

22
issue metadata variation

• Sample subject values
• ltsubjectgt30,51,52lt/subjectgt
• ltsubjectgt1852, Apr. 22. Everitt Judson, letter
  to Philuta Judson.lt/subjectgt
• ltsubjectgtSlavery--United States--Controversial
  literaturelt/subjectgt
• ltsubjectgtview of interior with John Henry
  sculpturelt/subjectgt
• ltsubjectgtParticles (Nuclear physics) --
  Research.lt/subjectgt

23
issue no digital objects

• Some records contain links to further description
  of digital object
• But not the digital object itself
• Culling difficult
• One option add explanatory text to site

24
issue access restrictions

• No records where metadata itself is restricted in
  use (as far as we know!)
• Definitely some records where objects are
  restricted to licensed users
• One option add explanatory text to site

25
issue access restrictions

• DC Rights element often not enough info about
  viewing restrictions
• Currently no protocol method for indicating
  restricted digital objects (i.e., yes/no toggle
  element)
• Need to assess whether users feel informed or
  frustrated when encountering restricted objects

26
issue duplicate records

• Two records harvested, different identifiers,
  same object described and pointed to
• Acquired in two ways
• Harvesting of original repository and aggregator
• Receiving static DC records provided by content
  creator and harvesting aggregator

27
issue duplicate records

• Aggregators can contain records not currently
  available through OAI channels
• Aggregators do not always contain all the records
  of a particular original repository
• So, need to harvest both aggregator and original
  repositories

28
issue duplicate records

• Harvest records from aggregator
• Also receive from original content creator, but
  as snapshot
• e.g., MEO and cogprints
• Snapshot before aggregator
• Creator unsure all records would be aggregated

29
issue duplicate records

• Were duplicates to be identified, how to deal
  with the issue?
• Suppress?
• Group?
• Flag?
• So far, not addressed in OAIster

30
assessment

• Large survey (over 400 respondents)
• 2 rounds of face-to-face and remote user testing
• Conducted before design and after phase one
  rollout

31
assessment survey

• Online journals and reference materials wanted
  over other digital objects
• Difficult to search for information every
  service different where to start
• Number of respondents (5) indicated they were
  generally successful in finding resources online

32
assessment user testing

• No short and long record formats one size fits
  all
• Want clearly defined and labeled AND/OR searching
  options
• Results clear and easy to understand
• Want to sort by title, date, institution,
  resource formatyou name it!
• Use OAIster for academic, trustworthy, authentic
  materials

33
service providers comparison

high

• Focus on high usability
• Focus on all content available
• Some service providers have increased
  functionality (e.g., de-duplication, integration
  of thesauri)

UIUC, Emory, etc.
OAIster
Usability
DP-9
Ad hoc
low
some
all
Content
34
future of OAIster

• Make it faster
• Advanced searching
• Grouping to aid browsing
• Saving/emailing/downloading records
• Further normalization of data
• Handling duplicate records
• Collaboration with other services search,
  instructional

35
current state of protocol

• Popular
• As Peter Suber says
• no other single idea or technology in the
  open-source movement has enjoyed this density of
  endorsement and adoption in a six month period.
• Data providers over one year
• June 02 56 repositories / 274,062 records
• June 03 187 repositories / 1,246,953 records
• Over three-fold increase for repositories
• Over four-fold increase for records

36
future of protocol

• Branching out
• HTTP vs. SOAP
• DC required vs. highly recommended
• Use of OAI in closed environments
• Static repository protocol
• OAI-rights committee
• Need for add-on applications
• OAI evangelism

37
how can you be in OAIster?

• OAI-enable your data
• DLXS customer easiest
• Make sure data is UTF-8 / Unicode compliant
• Provide as much metadata as you can
• Use standard element tags
• Develop sets for service providers
• Let us know youre ready to be harvested
• Keep us informed about changes to the harvesting
  URL, new data and deleted data, change in contact
  info

38
how can you use OAIster?

• Just about anywhere
• Reference desks
• Tool for researchers and faculty
• Inclusion into list of electronic resources
  and/or subject guides
• It is
• freely available
• regularly updated
• simple to use

39
contact info

• Kat Hagedorn
• University of Michigan Libraries, Digital Library
  Production Service
• khage_at_umich.edu
• http//www.oaister.org/
