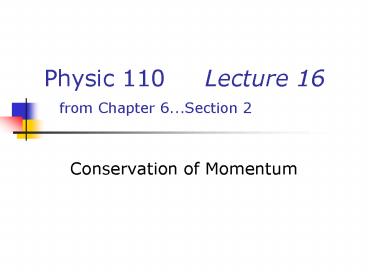

Physic 110 Lecture 16 from Chapter 6'''Section 2

1
Physic 110 Lecture 16 from Chapter
6...Section 2

• Conservation of Momentum

2
Questions on Assignment 15?

• Assignment
• Conceptual Question
• Chapter 6, C.Q. 13 on page 181 Chapter 6,
  C.Q. 16 on page 181
• Problems
• Chapter 6, Problem 1 on page 181
• Chapter 6, Problem 10 on page 182 Chapter
  6, Problem 12 on page 182

3
Homework assignment 16

• Assignment
• Conceptual Question
• Chapter 6, C.Q. 5 on page 181
• Problems
• Chapter 6, Problem 19 on page 183
• Chapter 6, Problem 24 on page 183
• Chapter 6, Problem 27 on page 183

4
Momentum

• where m is mass
• v is velocity

Impulse
where F is average contact force ?t
is time of contact
5
Impulse-Momentum Theorem

• An impulse acting on a system causes a change in
  the systems momentum.

6
Example 1

• A 0.05kg golf ball is struck by a club with an
  average force of 2 kN for 1 ms.
• What speed does the ball leave the tee with?

7
Example 1

• m 0.05kg
• F 2 kN 2000 N
• ?t 1ms 0.001s
• Vi 0 m/s

8
Conservation of Momentum

• If no external force or impulse acts on a system,
  then the systems momentum is conserved.
• A system may consist of several bodies which all
  have individual momentum.

9
Example 2

• A 75 kg man stands in the middle of frozen lake
  (assume circular with diameter of 100 m). He
  cannot move because the ice is frictionless. He
  luckily is holding a 1.5 kg physics textbook.
  He tosses the book horizontally at 5.0 m/s.
• Does the man move and why?
• How long will it be before the book reaches
  shore?
• How long will it be before the man reaches shore?
• Should he how far will he have to walk to go get
  the physics book?

10
Example 2

• At the start, there is no motion, so the total
  momentum is 0.
• If he throws the book away from him, in order for
  the momentum to remain zero, he must start moving
  in the opposite direction.

11
Example 2

• vbook -5.0 m/s mbook1.5 kg
• vman ? mman 75 kg

12
Example 2

• vbook -5.0 m/s mbook1.5 kg
• vman ? mman 75 kg

13
Example 2

• How long to reach shore? (50 m away)
• Book Man

x
14
Collisions

• The conservation of momentum applies even when
  bodies collide with each other.
• Momentum is exchanged between colliding objects,
  but the total momentum of all objects combined
  must remain constant.

15
Different object momentums, but same total
momentum
After collision
Before collision
16
Conservation of Momentum for system of objects

• Momentum is conserved for the system of objects
• The system includes all the objects interacting
  with each other
• Assumes only internal forces are acting during
  the collision
• Can be generalized to any number of objects

17
Types of Collisions

• Inelastic collisions
• Kinetic energy is not conserved
• Some of the kinetic energy is converted into
  other types of energy such as heat, sound, work
  to permanently deform an object
• Perfectly inelastic collisions occur when the
  objects stick together
• Even then not all of the KE is necessarily lost

18
Example 3

• A 75 kg ice skater moving at 10 m/s crashes into
  a stationary skater of equal mass. They grab a
  hold of each other and move off after the
  collision together. How fast do they travel
  following the collision?

19
Example 3

• A 75 kg ice skater moving at 10 m/s crashes into
  a stationary skater of equal mass. They grab a
  hold of each other and move off after the
  collision together. How fast do they travel
  following the collision?

20
Example 3

• Conservation of momentum before and after the
  collision

21
Example 3

• Conservation of momentum before and after the
  collision

22
Inelastic Collisions Summary

• When two objects stick together after the
  collision, they have undergone a perfectly
  inelastic collision
• Conservation of momentum becomes
